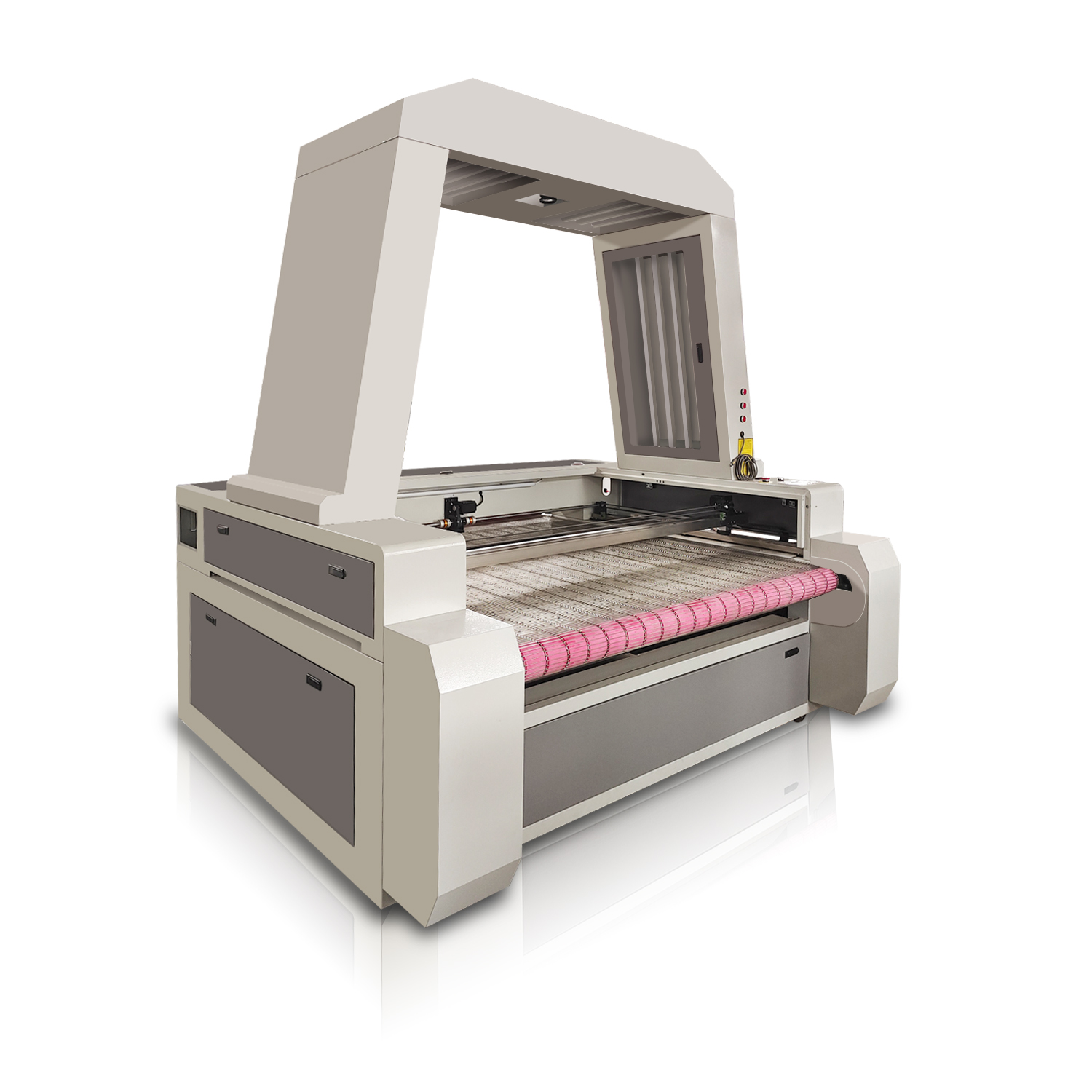

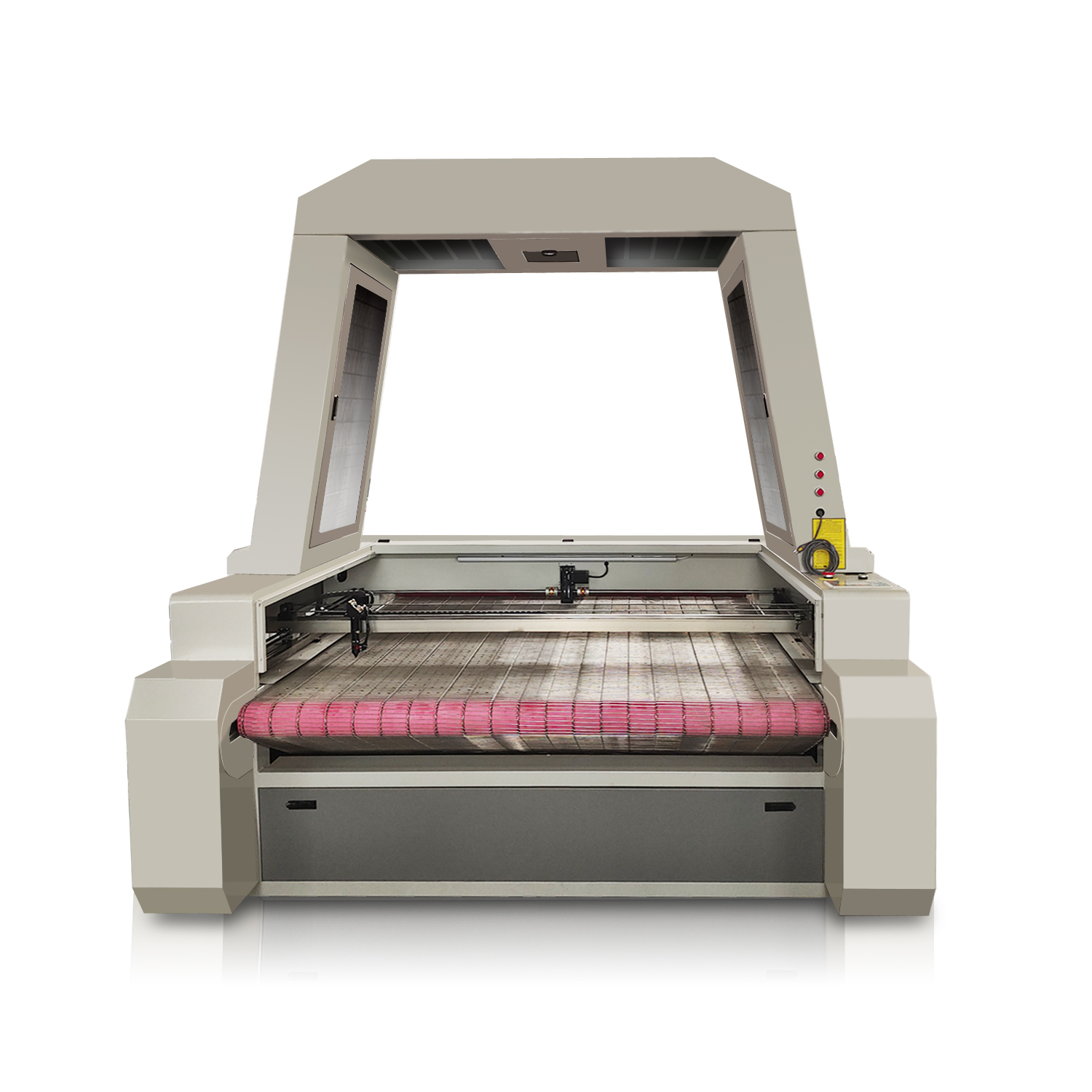

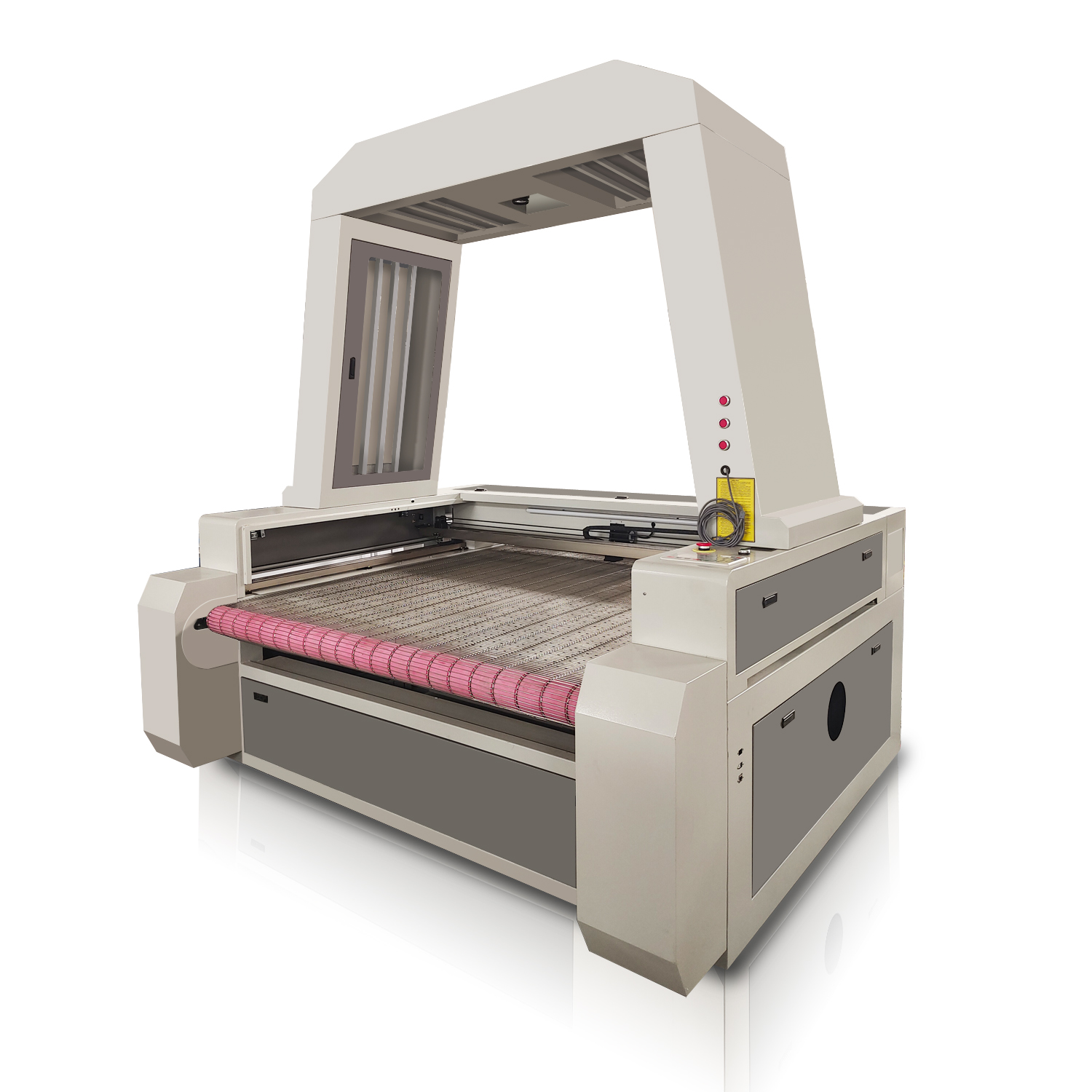

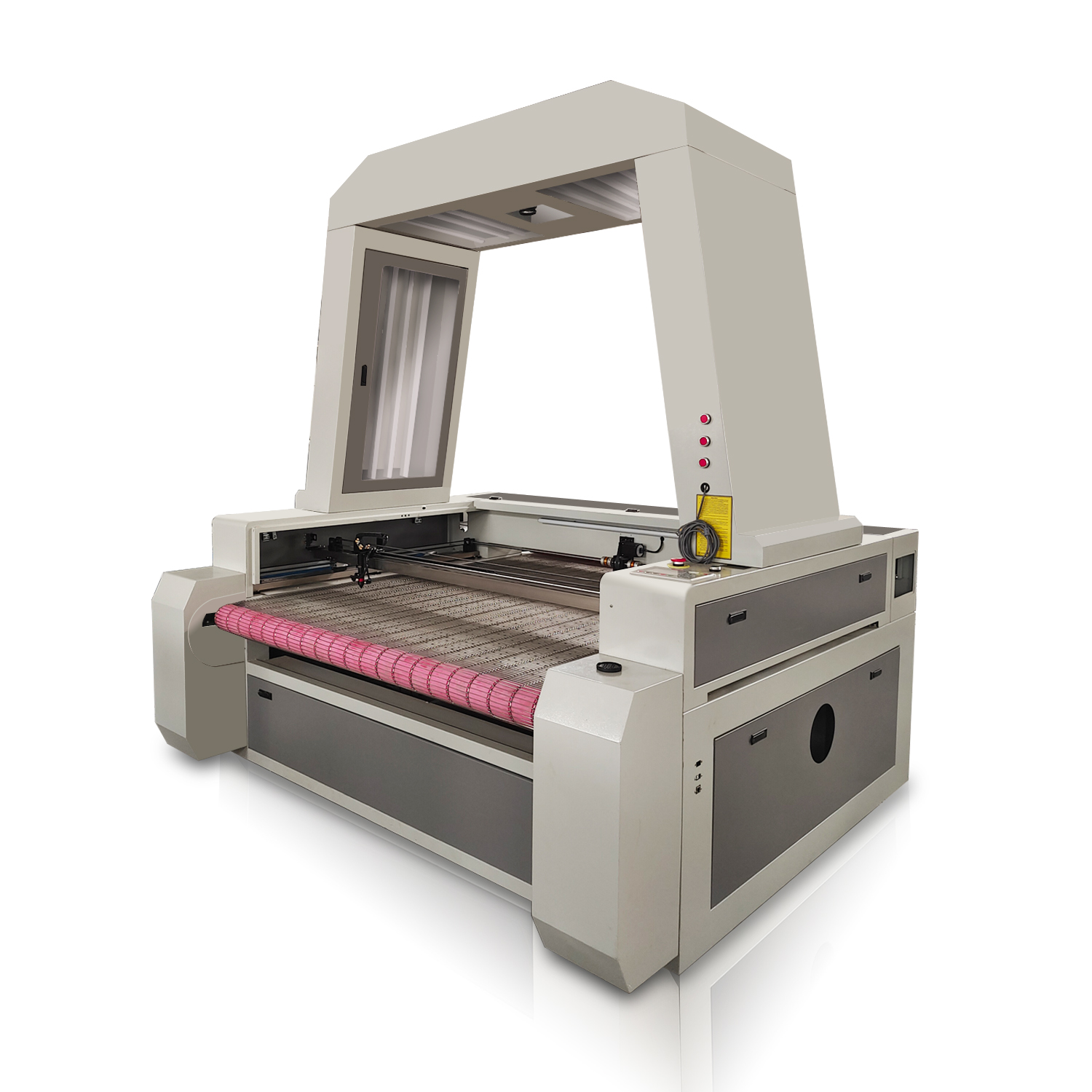

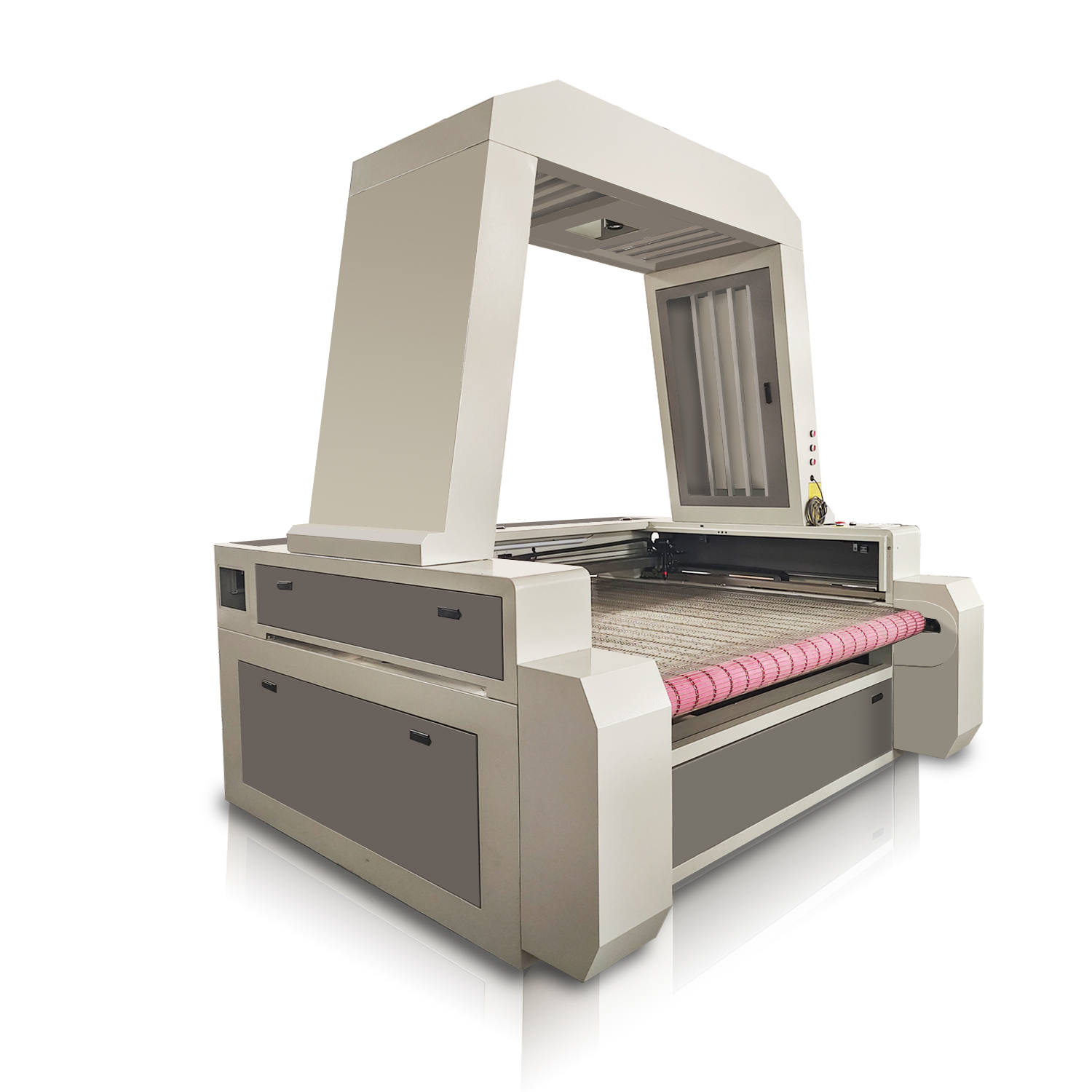

1600x1000mm area with 18MP HD CCD & auto-feeding system. Cuts printed fabric & labels 3x faster. Reci W4 130W tube. Inquire now for a free factory price list!
1. 18MP Large-Format CCD Vision System
One-Shot Recognition: Equipped with an 18-megapixel high-definition SLR camera, the system can identify the entire 1600x1000mm working area in one shot. It extracts contours with high precision (within 0.5mm), eliminating stitching errors found in traditional camera systems.
Automatic Contour Extraction: Intelligent software automatically captures the edges of printed graphics, embroidery patches, and woven labels, allowing for precise cutting at any angle.

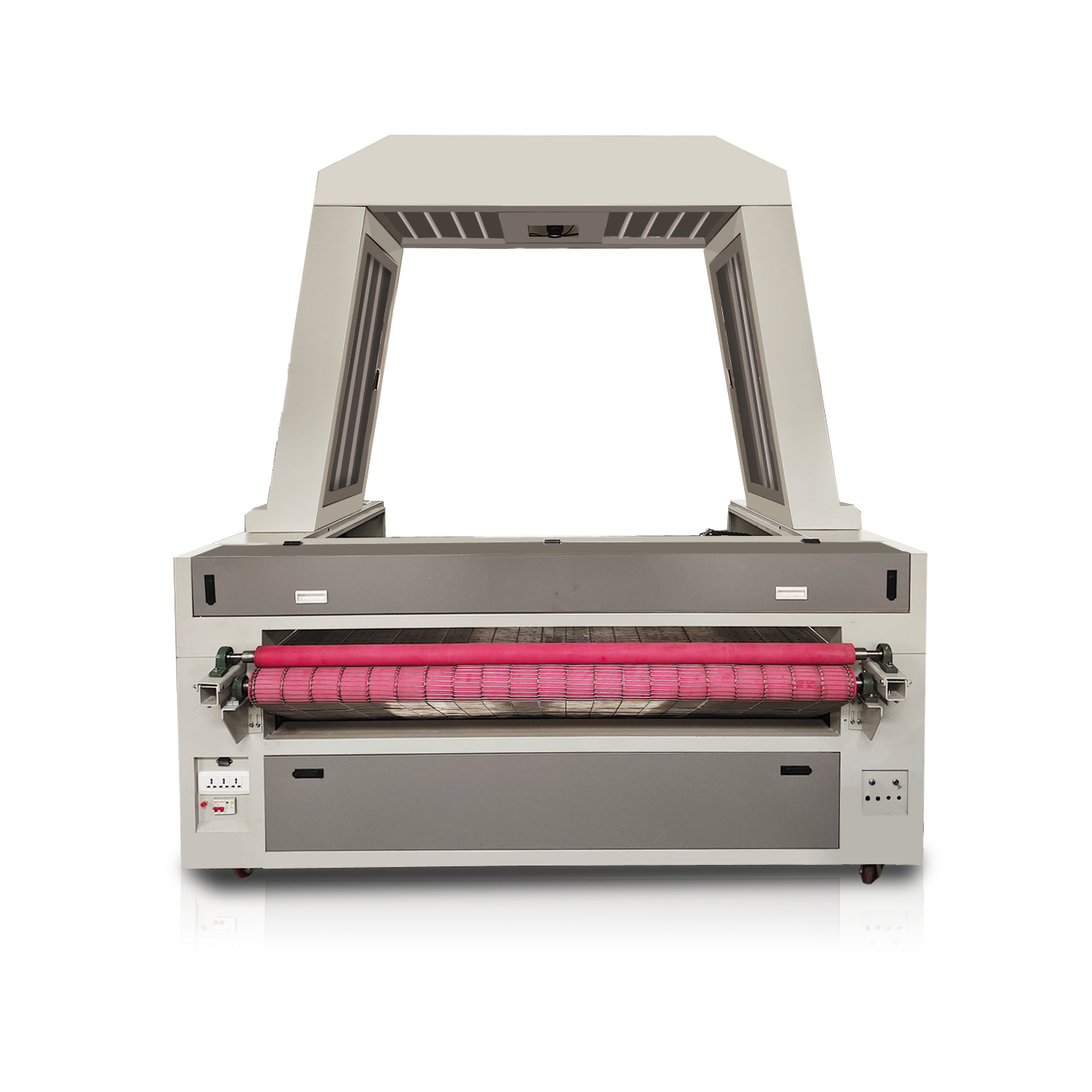

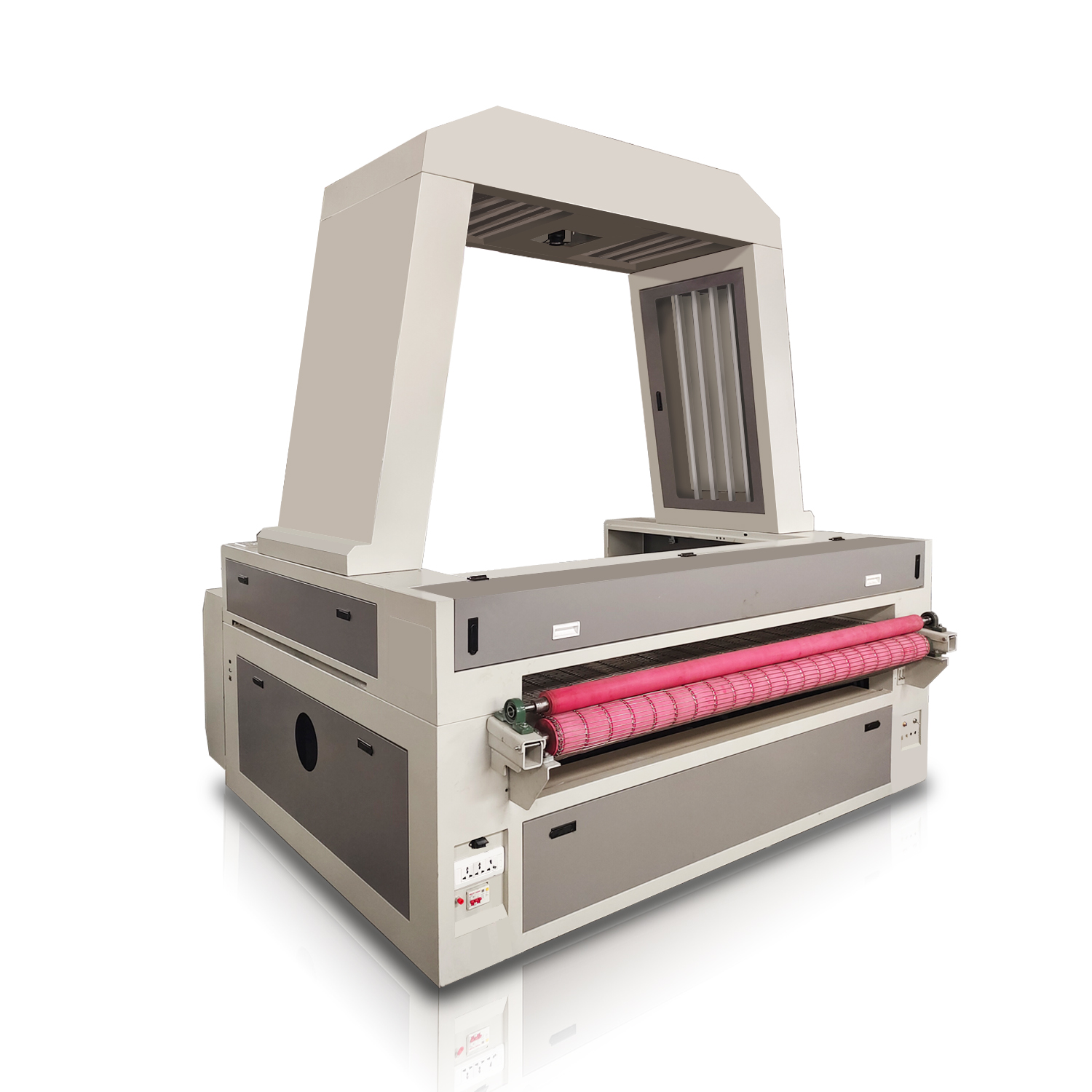

2. Fully Automated Feeding & Loading System
Continuous Production: The integrated auto-feeding conveyor bed works seamlessly with the CCD system. It realizes a continuous cycle of feeding, recognition, and cutting, significantly reducing labor intensity and maximizing uptime.
Deviation Correction: Includes a specialized feeding correction frame to ensure the material stays perfectly aligned during long-run batch processing.
3. 3X Productivity Boost for Soft Goods
Efficiency Redefined: This machine operates at 2.5 to 3 times the efficiency of traditional manual or manual-positioning laser cutters. It is the ideal choice for modern sublimation printing, garment, and toy industries.
High-Speed Motion: Powered by Leadshine stepper motors and linear guides, it supports engraving speeds up to 1500mm/s and cutting up to 600mm/s with smooth, non-fraying edges.
4. Premium Industrial Grade Components
Reci W4 Laser Source: Comes standard with a 100W-130W Reci W4 CO2 tube, capable of cutting through 20mm of acrylic and various thick textiles with consistent power.
Ruida Control System: Features the world-renowned Ruida controller, offering professional-grade stability, multi-language support, and seamless integration with the CCD vision software.
5. Intelligent Material Deformation Compensation
Smart Adjustment: The software can automatically compensate for fabric shrinkage or deformation during the sublimation process by micro-adjusting the cutting path in real-time, ensuring every cut is perfect.
Interactive Interface: Allows operators to confirm cutting paths on-screen before execution, minimizing material waste and ensuring 100% accuracy.
6. Multi-Industry Versatility
Application Expert: Perfect for embroidery patches, woven labels, apparel denim, plush toys, and printed advertising banners. Compatible with AI, PLT, DXF, and DST formats.
Machine Model: |
1610 Automatic Laser Cutting Machine |
Laser Power: |
100W |
Laser type: |
CO2 sealed glass tube |
Laser Wavelength: |
1064nm |

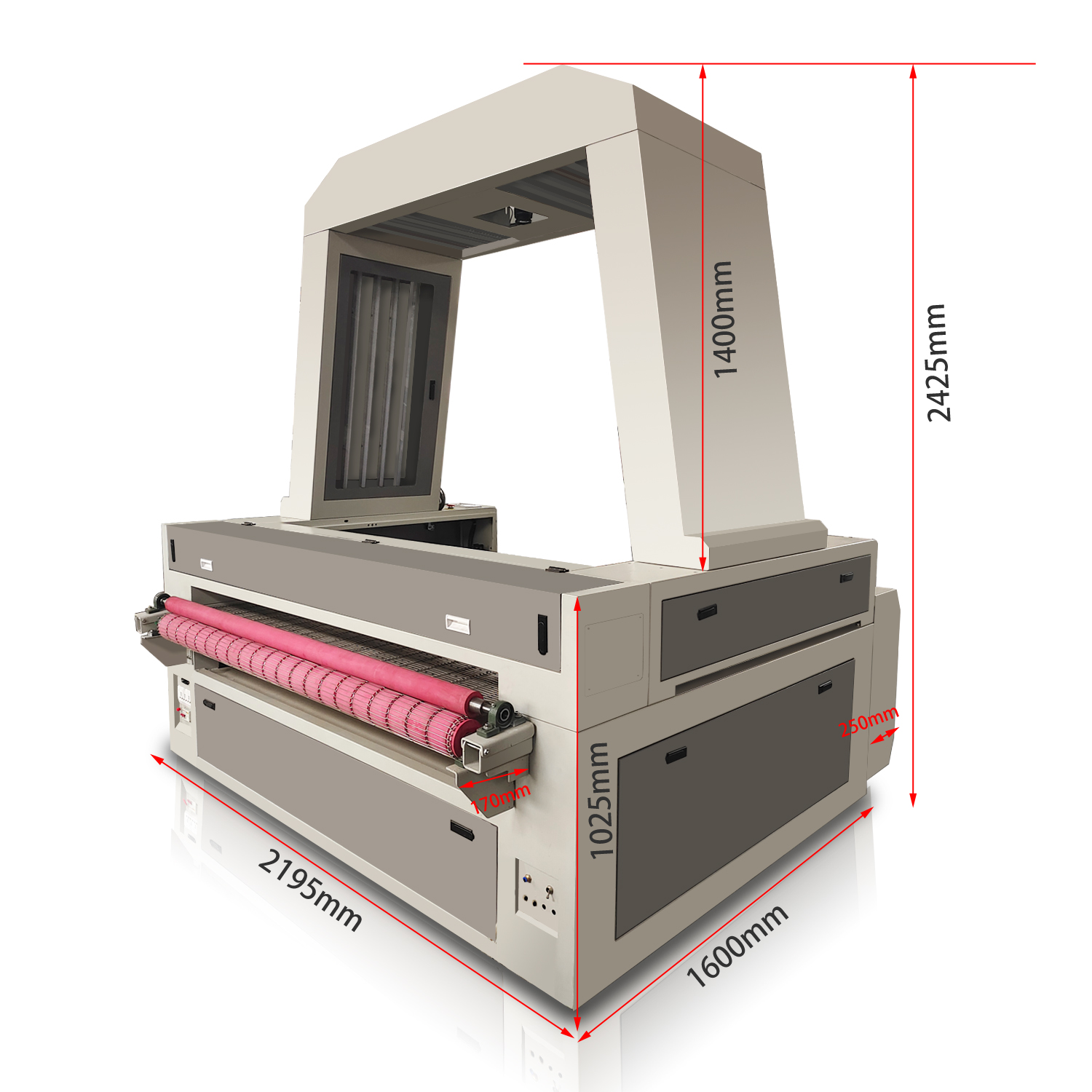

Work Area： |
1600*1000mm |
working environment: |
Temperature 10-35 ℃, humidity 5-85% |
carving speed: |
≤7000mm/s |
Carving depth: |
≤0.2mm |
Minimum line width: |
0.1mm |
Maximum cutting depth: |
20mm |
Maximum carving speed: |
1500mm/s |
File format： |
AI, PLT, DXF, BMP, DST, DWG, LAS, DXP, etc |
Compatible software: |
CorelDraw, AutoCAD,Adobe Illustrator, etc |
Machine weight: |
450KG |
Cooling method: |
air-cooled/water-cooled |
1、This product comes with a one-year warranty from the date of purchase (excluding consumables). Optical lenses and laser tubes are consumables, with a three-month warranty。
2、During the warranty period, if there is a malfunction in the normal use of our company's products, you can enjoy our company's free warranty service by presenting the warranty card or invoice in accordance with the contents of this warranty clause.
Q: What customized services you provided?
A: Founder Laser is the true manufacturer, we have own factory, therefore we could supply full OEM and ODM service.
Q: What shipping methods you provide?
A: We give customer EXW, FOB, CFR, DDP, DDU, and any ways you want.
Q: How long is the delivery time?
A: About the production time, it depend on the machine mode you require and which country you from. About the shipping time, it
depend on the chosen transportation method.
Q: I don’t know how to use after i receive or i have problem during use, how to do?
A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished. We can also provide Door
Service if you need.
Q: I don’t know which one is suitable for me ?
A: Just tell us below information:
1) Max work size: choose most suitable model.
2) Materials and cutting thickness: power of laser generator.
3) Business industries: We sell a lot and give advice on this business line
