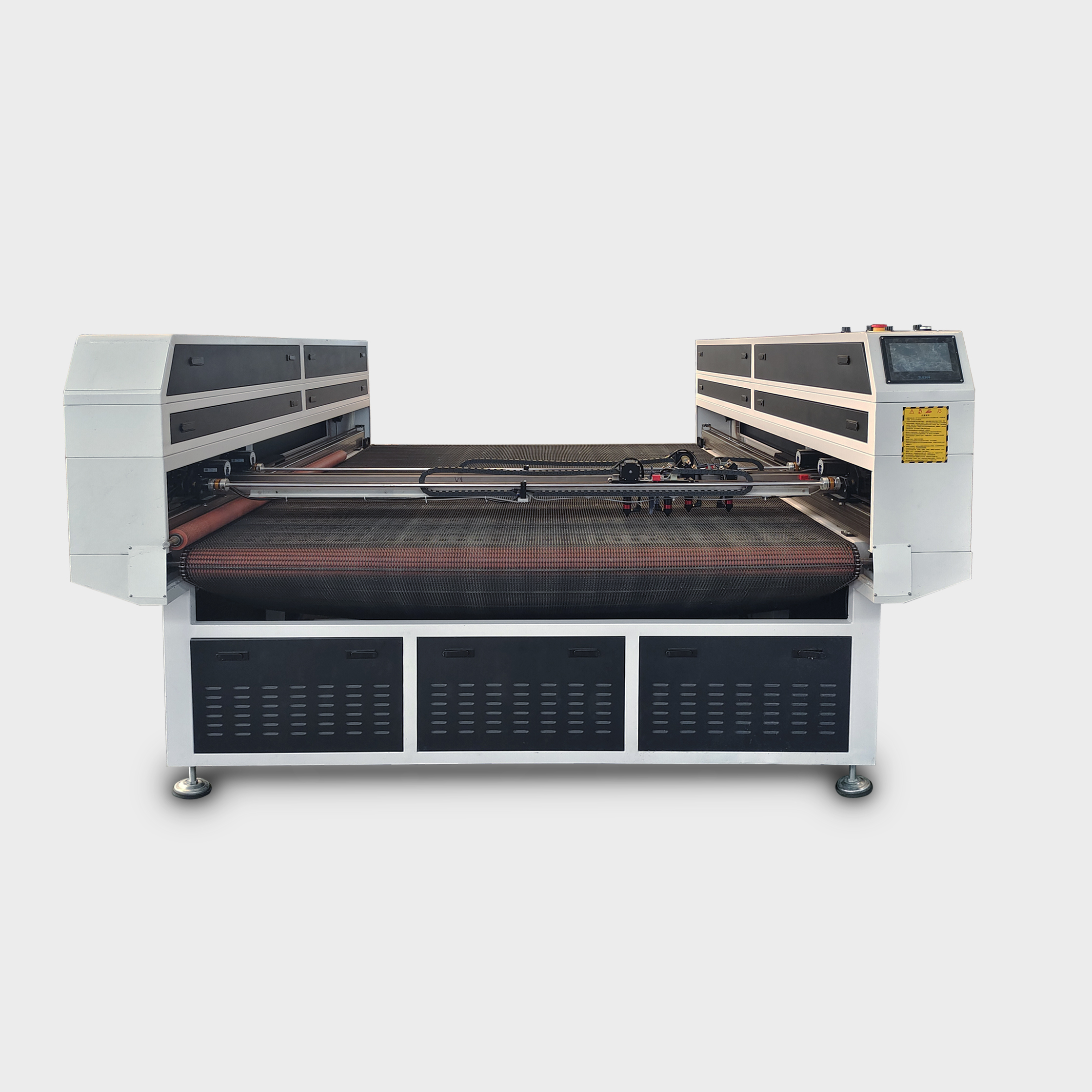

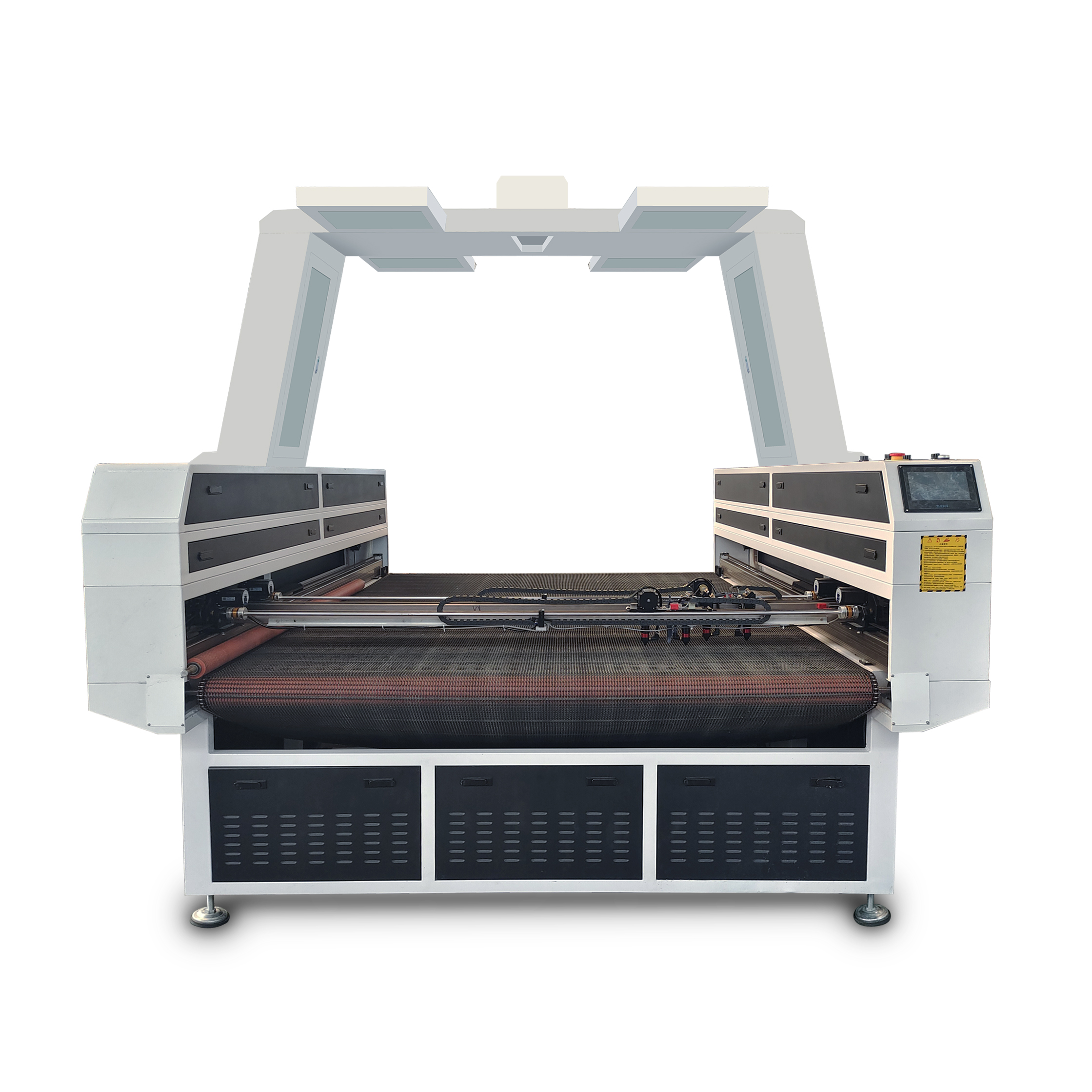

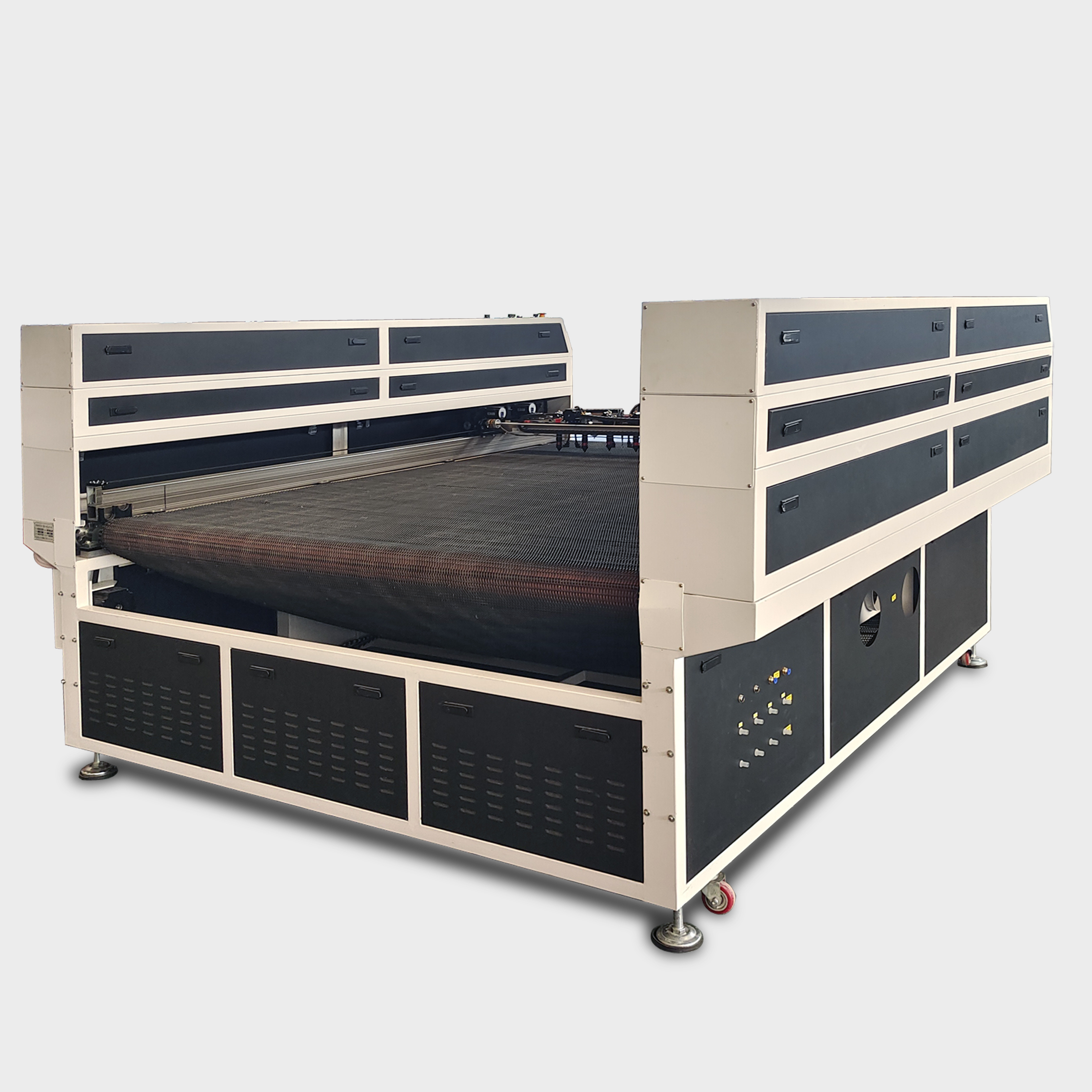

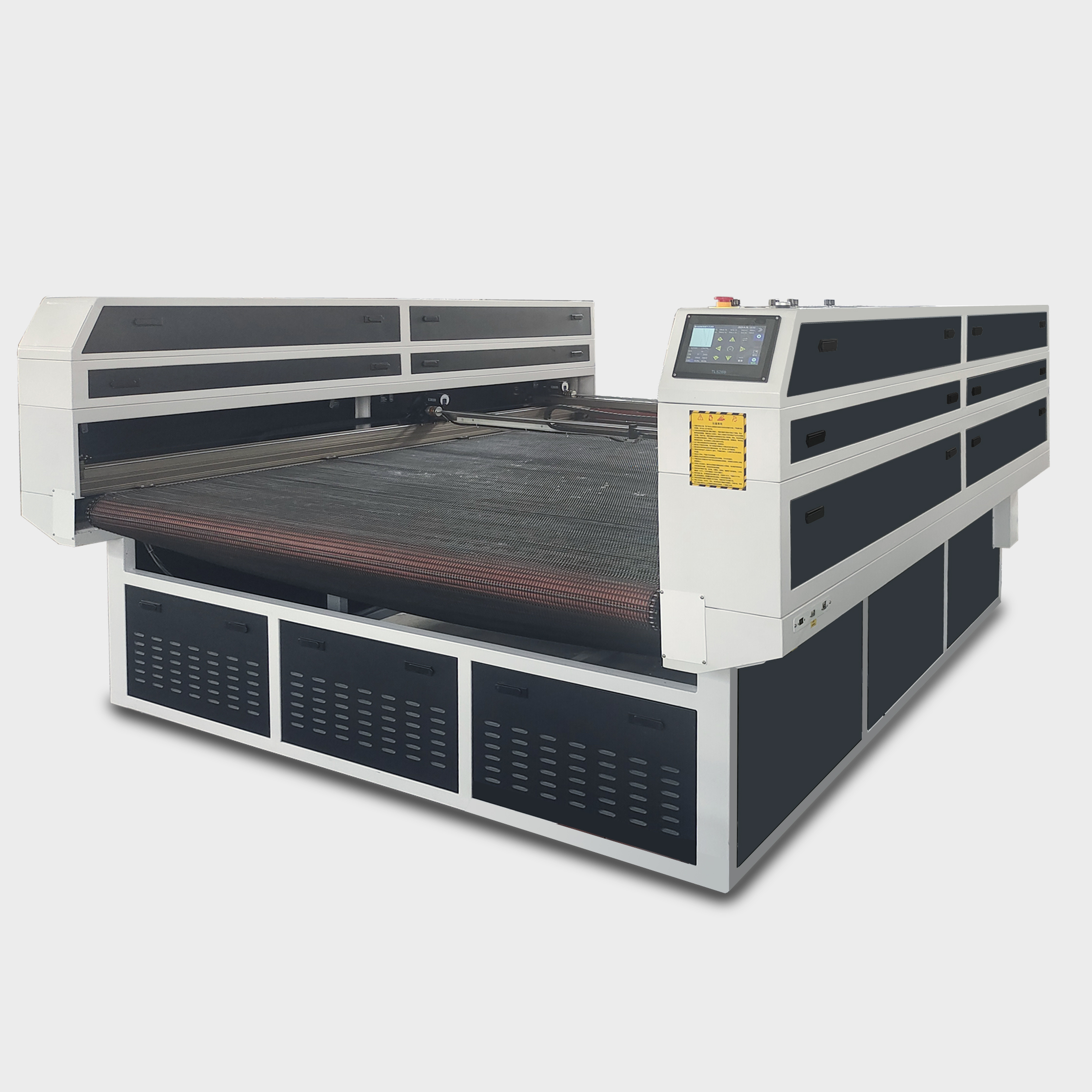

1820 CCD Laser Cutter with 4 Heads Dual Gantry Auto Feed

1. Quad-Head & Dual Gantry System (4X Productivity)

Massive Output: Featuring a unique dual X-axis beam (dual gantry) structure with four independent laser heads, this machine can process four identical patterns simultaneously. It delivers 400% efficiency compared to standard single-head cutters, making it the ultimate tool for high-volume industrial orders.

Independent Movement: The dual-beam design allows for more flexible layout and faster movement, maximizing every second of production time.

2. High-Precision 18MP CCD Vision System

Automated Contour Recognition: Equipped with an 18-megapixel high-definition SLR camera, the system captures the entire 1800mm working area in one shot. It automatically extracts outlines of sublimation prints, embroidery patches, and labels with a precision of ≤0.5mm.

Deformation Compensation: Intelligent software compensates for fabric shrinkage or distortion in real-time, ensuring perfectly aligned cuts on every piece.

3. Fully Automated Continuous Feeding

Conveyor Mesh Table: The integrated auto-feeding conveyor system works in perfect synchronization with the laser heads and CCD camera. It realizes a "Zero-Labor" cycle of loading, identifying, and cutting, ideal for processing rolls of fabric or long banners.

Seamless Integration: Designed for 24/7 continuous operation, significantly reducing downtime and manual material handling.

4. Top-Tier Industrial Motion Control

Leadshine Motor & Drive: High-torque Leadshine stepper motors ensure smooth and synchronized movement for all four heads at speeds up to 600mm/s, maintaining crisp edges on all non-metal materials.

Ruida Multi-Head System: Powered by the professional Ruida control system, specifically optimized for multi-head coordination and complex vision recognition tasks.

5. Reliable Reci CO2 Laser Sources

Stable Cutting Power: Each head is powered by a high-quality Reci CO2 laser tube (80W-130W), ensuring consistent cutting depth and quality across the entire 1800mm width.

Long Lifespan: With professional S&A industrial chillers, the laser tubes maintain a lifespan of up to 10,000 hours under heavy industrial usage.

1、This product comes with a one-year warranty from the date of purchase (excluding consumables). Optical lenses and laser tubes are consumables, with a three-month warranty。

2、During the warranty period, if there is a malfunction in the normal use of our company's products, you can enjoy our company's free warranty service by presenting the warranty card or invoice in accordance with the contents of this warranty clause.

Q: What customized services you provided?
A: Founder Laser is the true manufacturer, we have own factory, therefore we could supply full OEM and ODM service.

Q: What shipping methods you provide?
A: We give customer EXW, FOB, CFR, DDP, DDU, and any ways you want.

Q: How long is the delivery time?
A: About the production time, it depend on the machine mode you require and which country you from. About the shipping time, it
depend on the chosen transportation method.

Q: I don’t know how to use after i receive or i have problem during use, how to do?
A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished. We can also provide Door
Service if you need.

Q: I don’t know which one is suitable for me ?
A: Just tell us below information:
1) Max work size: choose most suitable model.
2) Materials and cutting thickness: power of laser generator.
3) Business industries: We sell a lot and give advice on this business line
