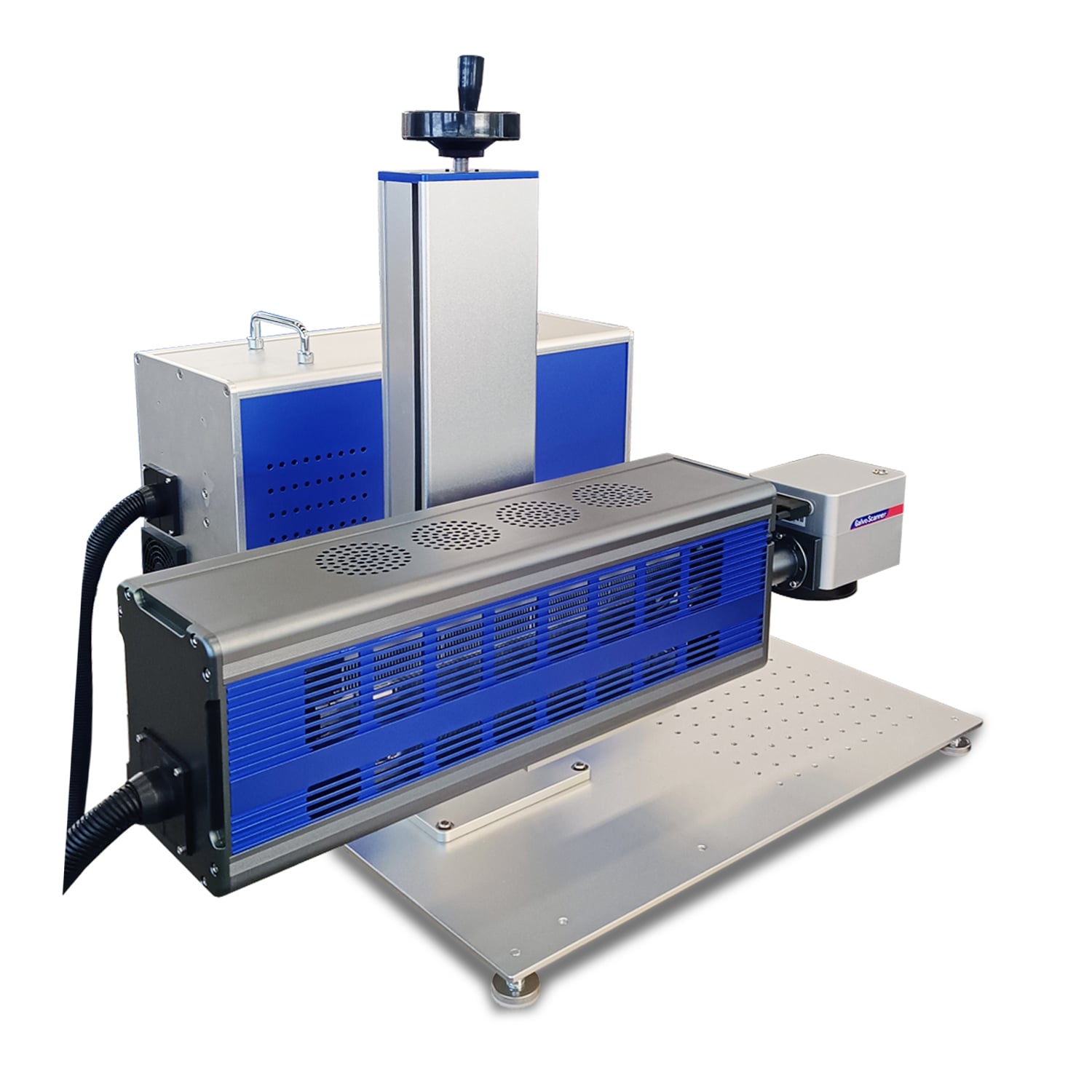

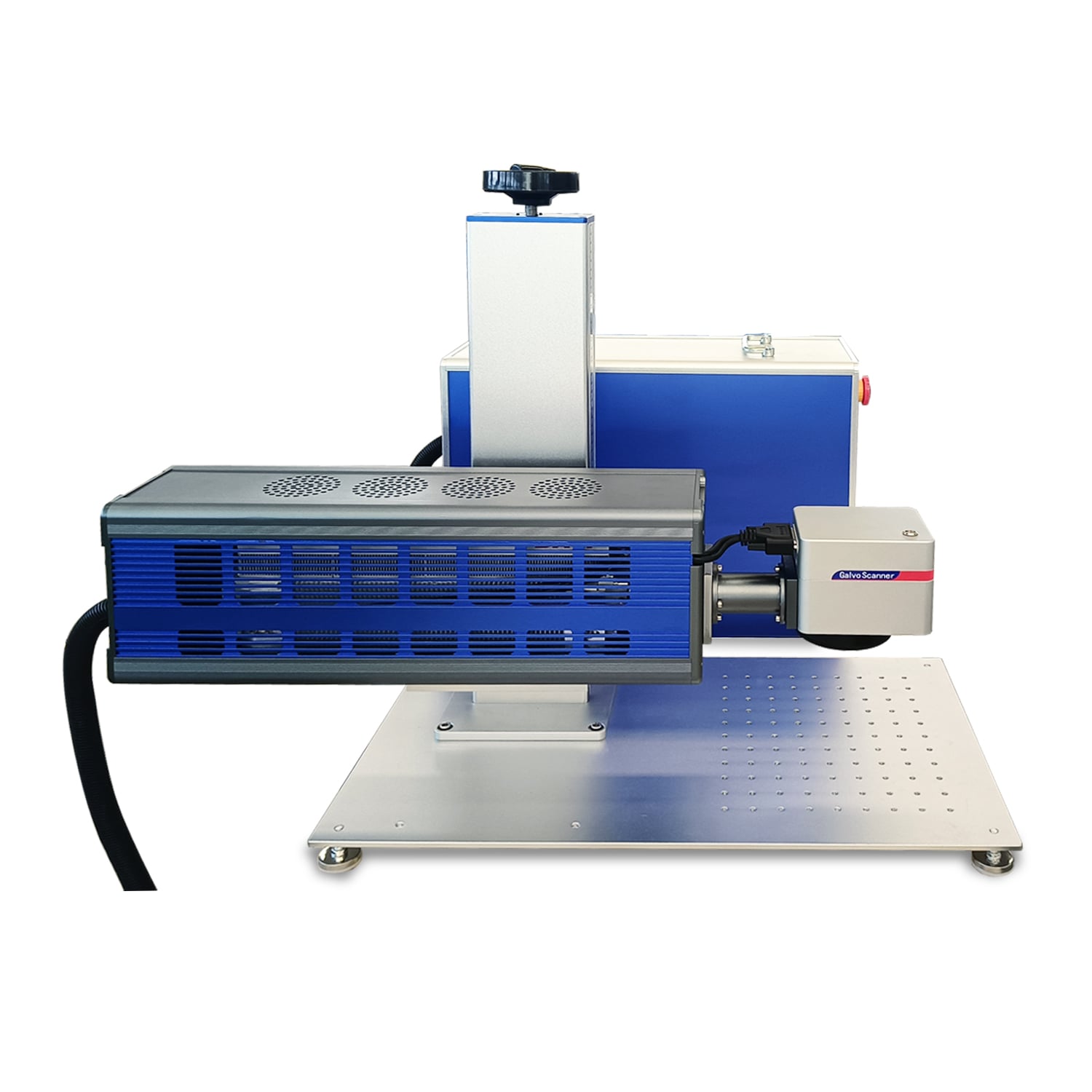

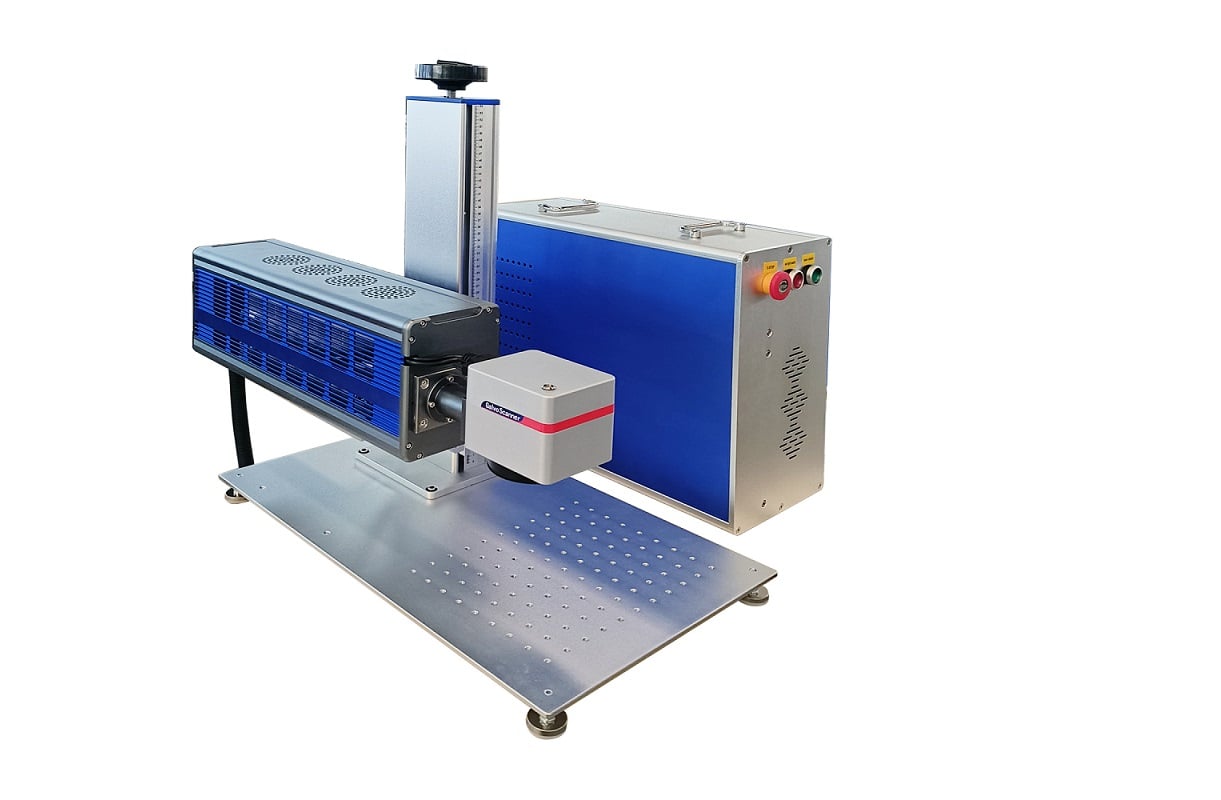

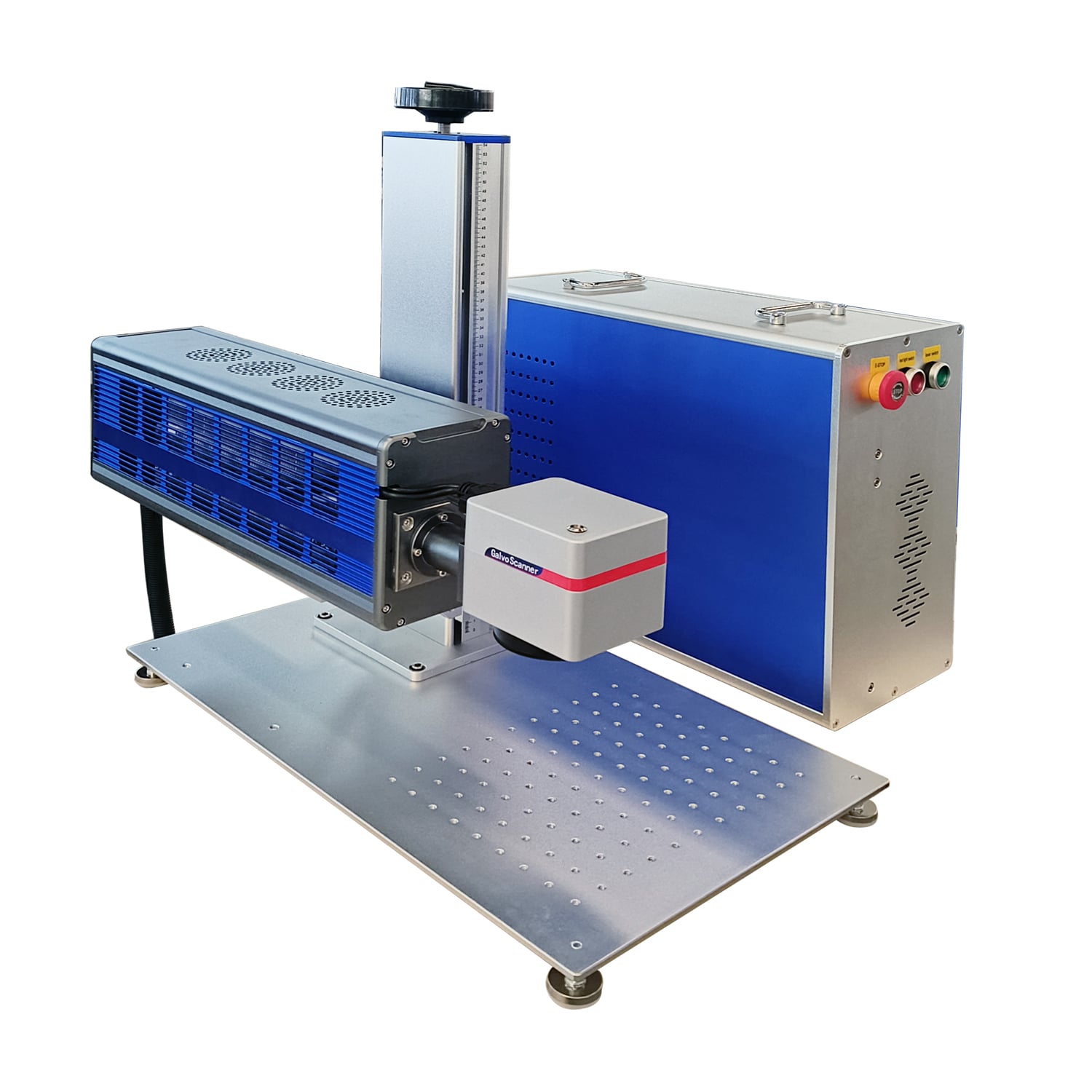

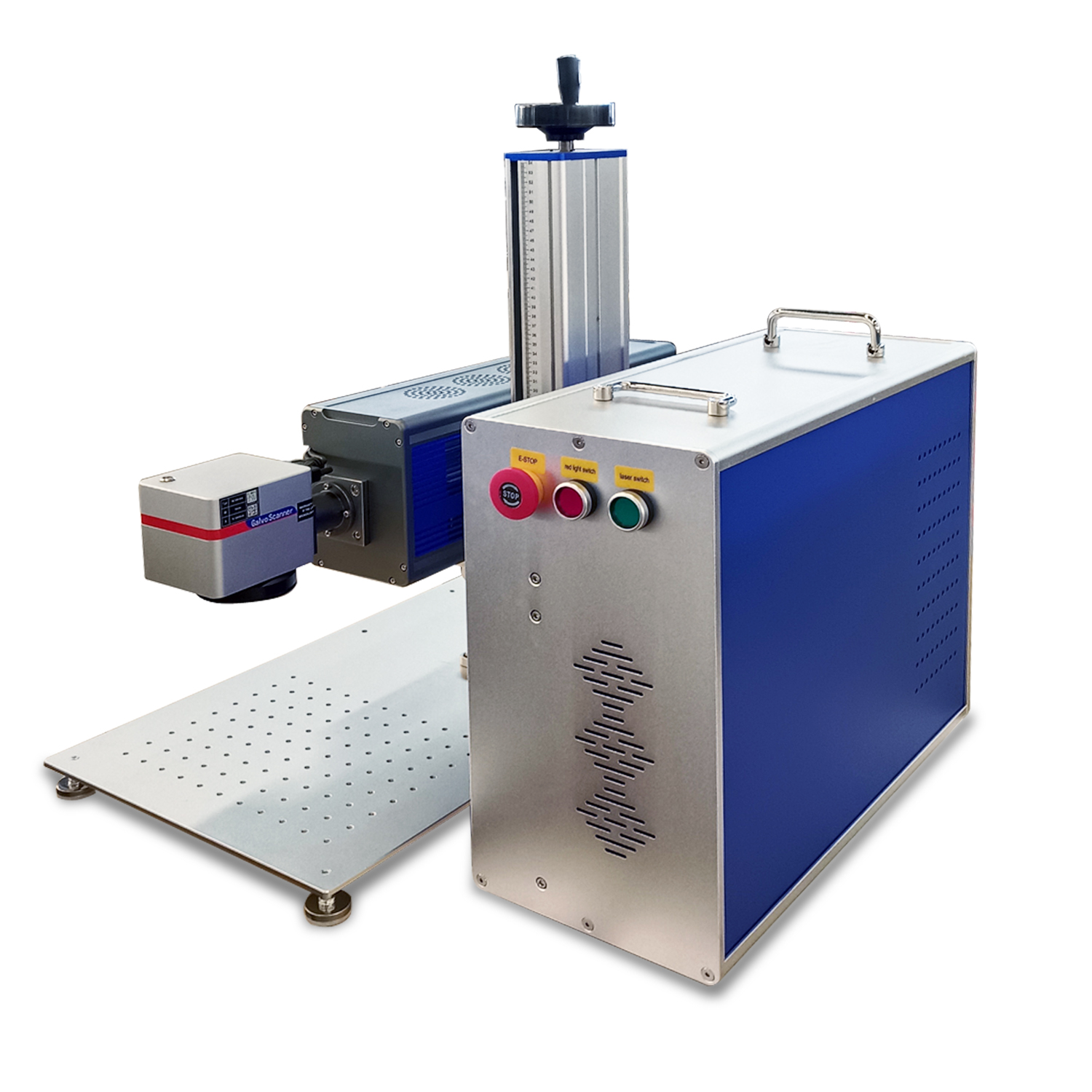

CO2 RF Laser Marking Machine 30W Split Type CNC Engraver

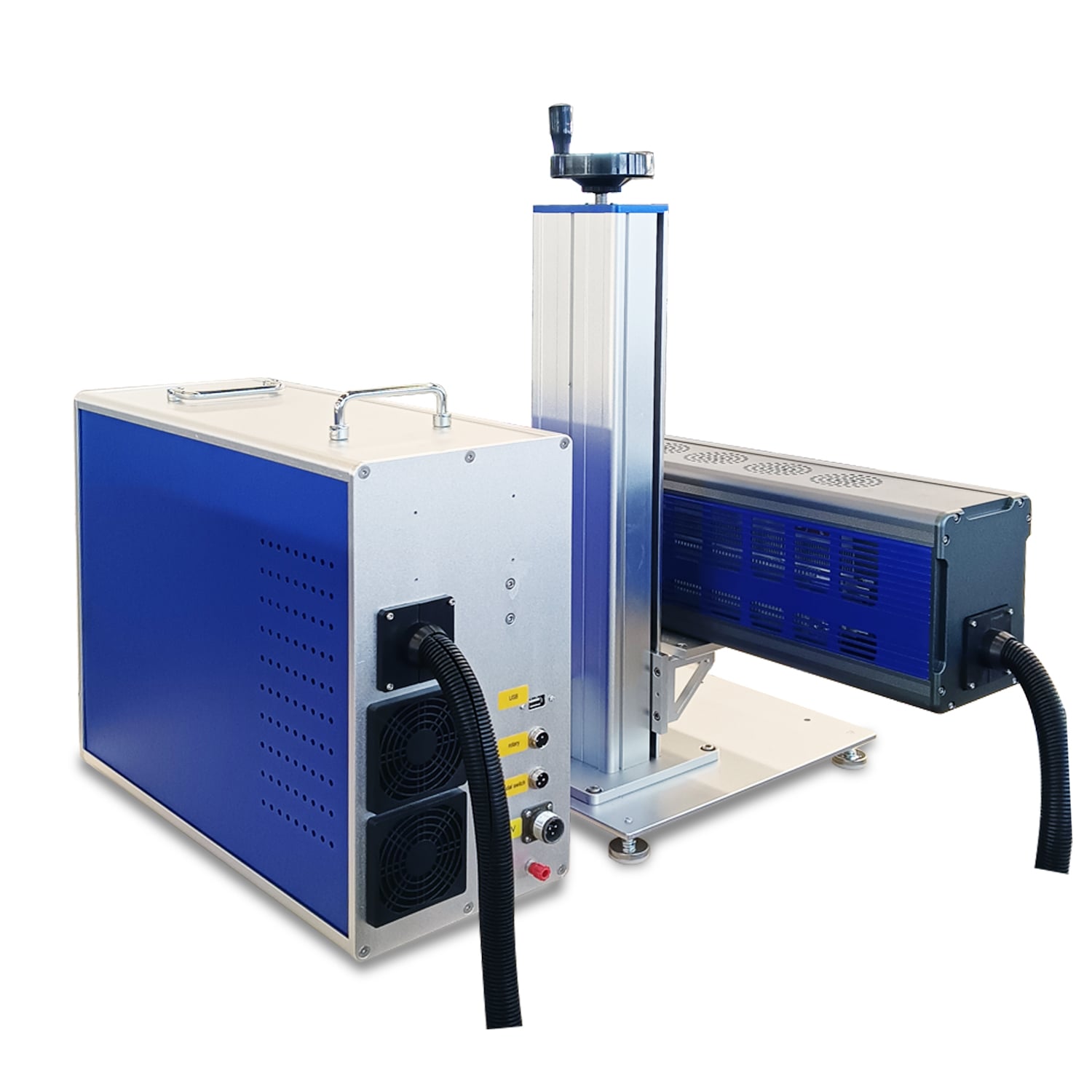

1. Flexible Modular Split Design

Space-Saving Integration: The innovative split-type architecture separates the laser head from the control unit. This modular design is ideal for workspaces with limited room and allows for seamless integration into existing industrial production lines.

Portable & Versatile: Easy to move and reconfigure, providing maximum flexibility for processing oversized workpieces or operating in different workshop environments.

2. Premium CR30C RF Metal Laser Tube

Maintenance-Free Performance: Unlike traditional glass tubes, the CR30C RF metal tube is a sealed system requiring no water cooling and zero gas refills. It offers a significantly longer lifespan and consistent power stability of ±5%.

Superior Beam Quality: Delivers a highly concentrated beam (M2 < 1.2) for ultra-fine marking results, ensuring crisp details even on characters as small as 1.5mm.

3. Ultra-Fast Industrial Galvanometer

High-Volume Productivity: Delivering a massive marking speed of up to 7000mm/s, this machine is engineered for high-frequency industrial environments. It maximizes throughput for repetitive tasks on plastics, wood, and organic materials.

Micron-Level Precision: Maintains a repeat accuracy of ±0.01mm and a minimum line width of 0.1mm, ensuring high-definition logos and barcodes without distortion.

4. Integrated Air Cooling & Reliability

Stable Thermal Management: Features a built-in air cooling system that eliminates the risks of leaks and the daily maintenance associated with water chillers. It allows for reliable 24/7 operation with minimal downtime.

High Repetition Rate: Designed with a repetition frequency of ≤20kHz, optimized for high-speed coding and marking in fast-moving consumer goods (FMCG) packaging.

5. User-Friendly Intelligence & Adjustability

280mm Precision Lifting: The high-stability lifting column provides a 1-280mm adjustment range, making it effortless to focus on workpieces of varying heights.

Seamless Software Integration: Fully compatible with professional marking software on Windows XP/7/8/10. Supports all major graphical formats including PLT, DXF, AI, and BMP.

6. Wide Industry Non-Metal Specialist

Versatile Applications: Specially optimized for wood, acrylic, paper, rubber, glass, stone, and leather. Ideal for food and beverage packaging, cosmetic containers, and pharmaceutical marking.

1、This product comes with a one-year warranty from the date of purchase (excluding consumables). Optical lenses and laser tubes are consumables, with a three-month warranty。

2、During the warranty period, if there is a malfunction in the normal use of our company's products, you can enjoy our company's free warranty service by presenting the warranty card or invoice in accordance with the contents of this warranty clause.

Q: What customized services you provided?
A: Founder Laser is the true manufacturer, we have own factory, therefore we could supply full OEM and ODM service.

Q: What shipping methods you provide?
A: We give customer EXW, FOB, CFR, DDP, DDU, and any ways you want.

Q: How long is the delivery time?
A: About the production time, it depend on the machine mode you require and which country you from. About the shipping time, it
depend on the chosen transportation method.

Q: I don’t know how to use after i receive or i have problem during use, how to do?
A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished. We can also provide Door
Service if you need.

Q: I don’t know which one is suitable for me ?
A: Just tell us below information:
1) Max work size: choose most suitable model.
2) Materials and cutting thickness: power of laser generator.
3) Business industries: We sell a lot and give advice on this business line
