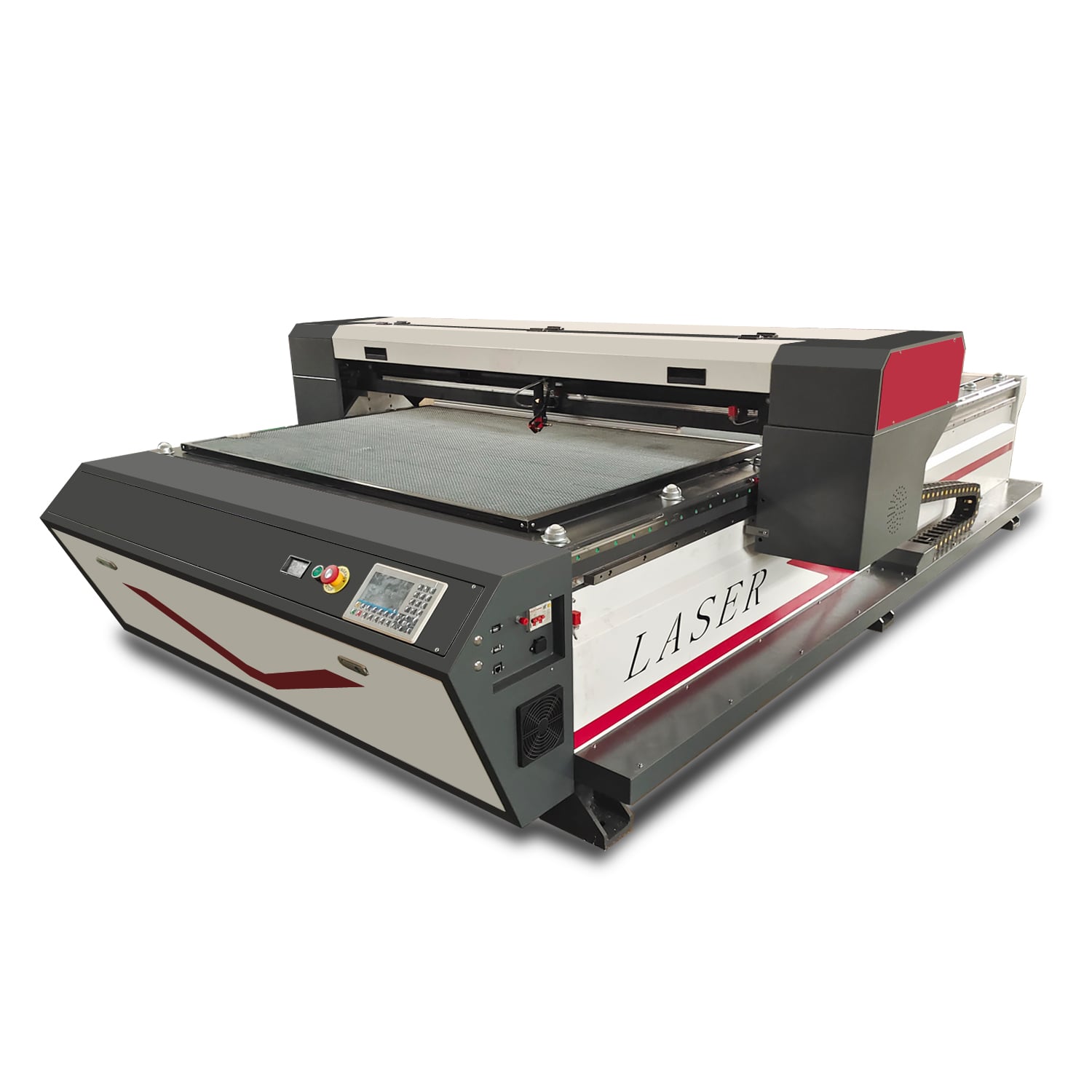

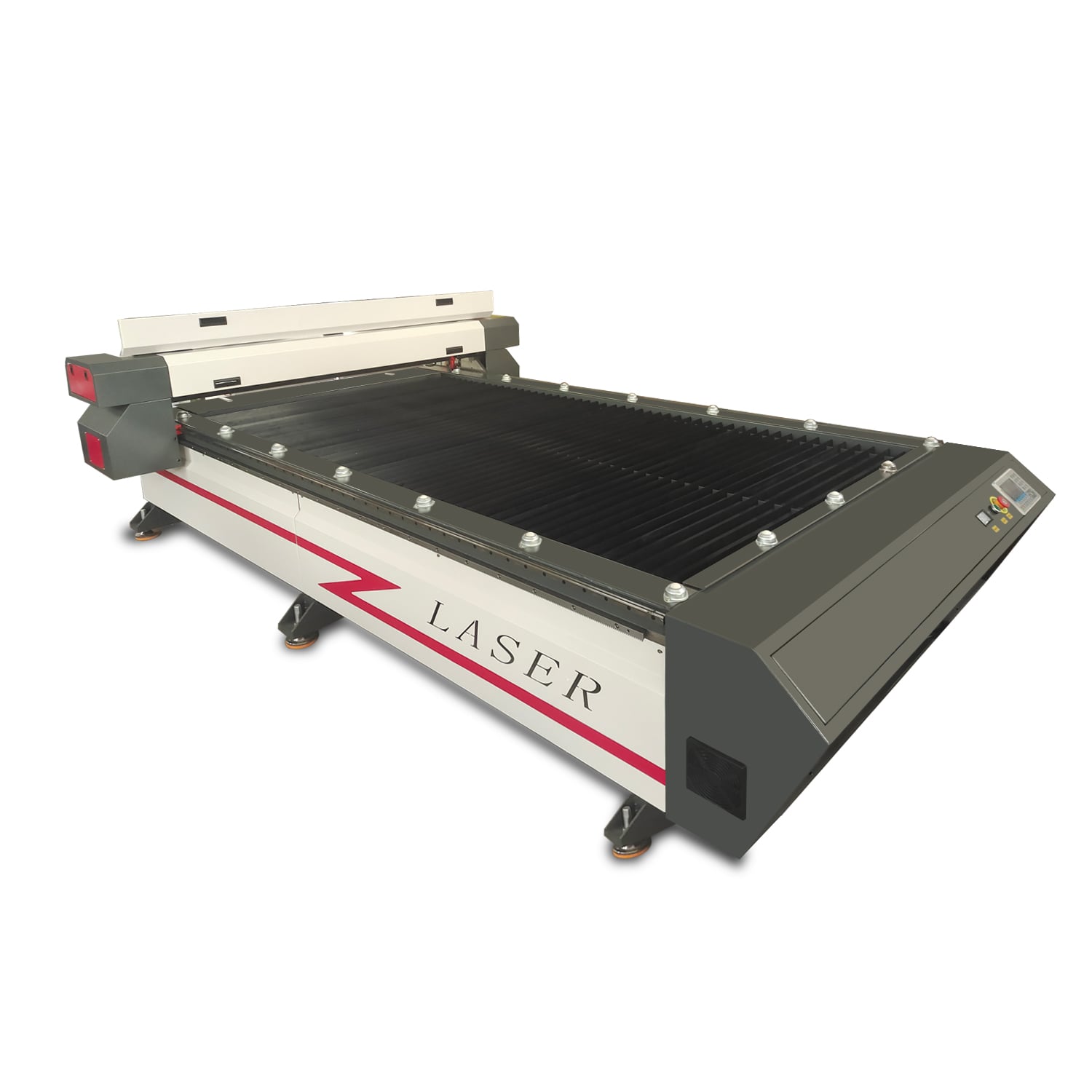

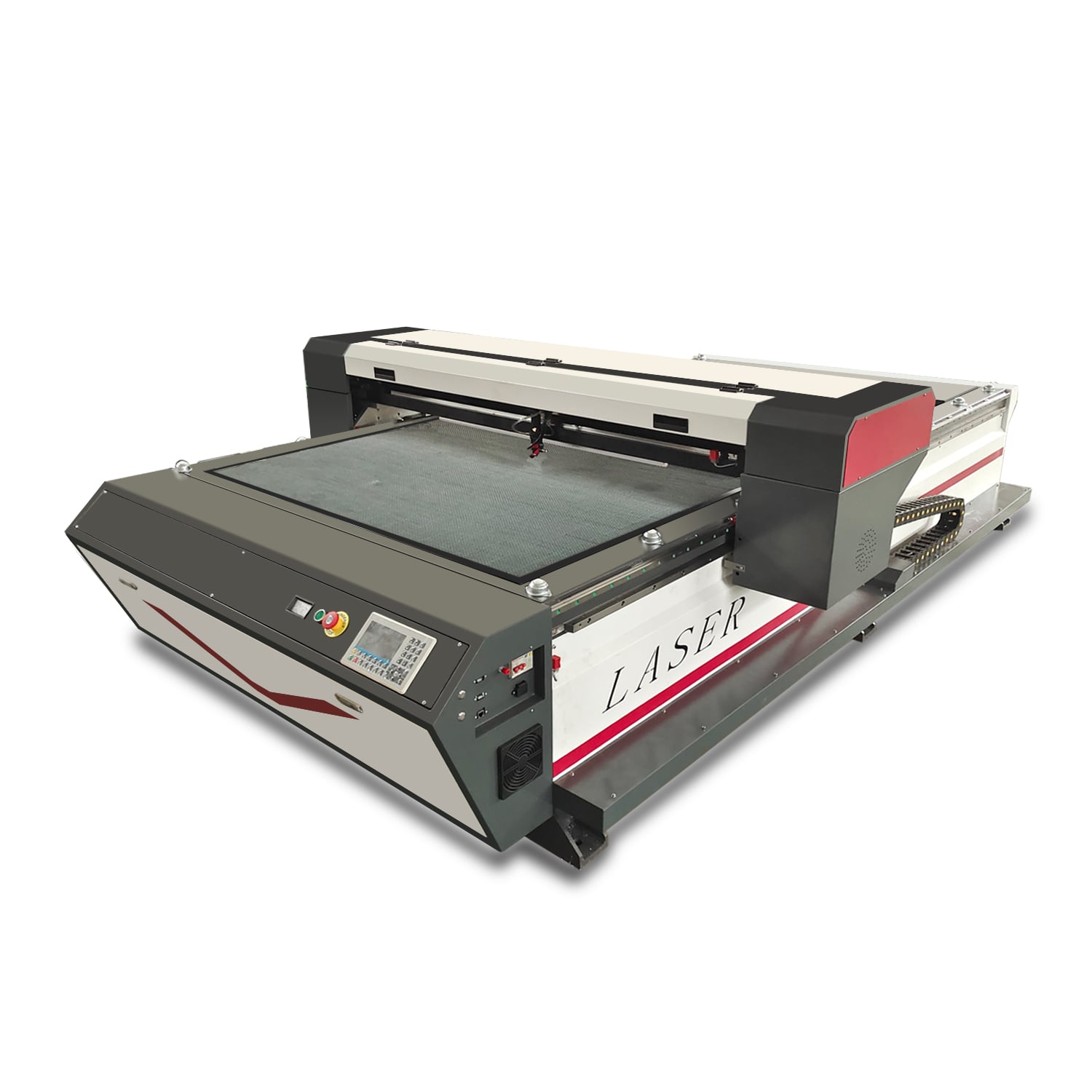

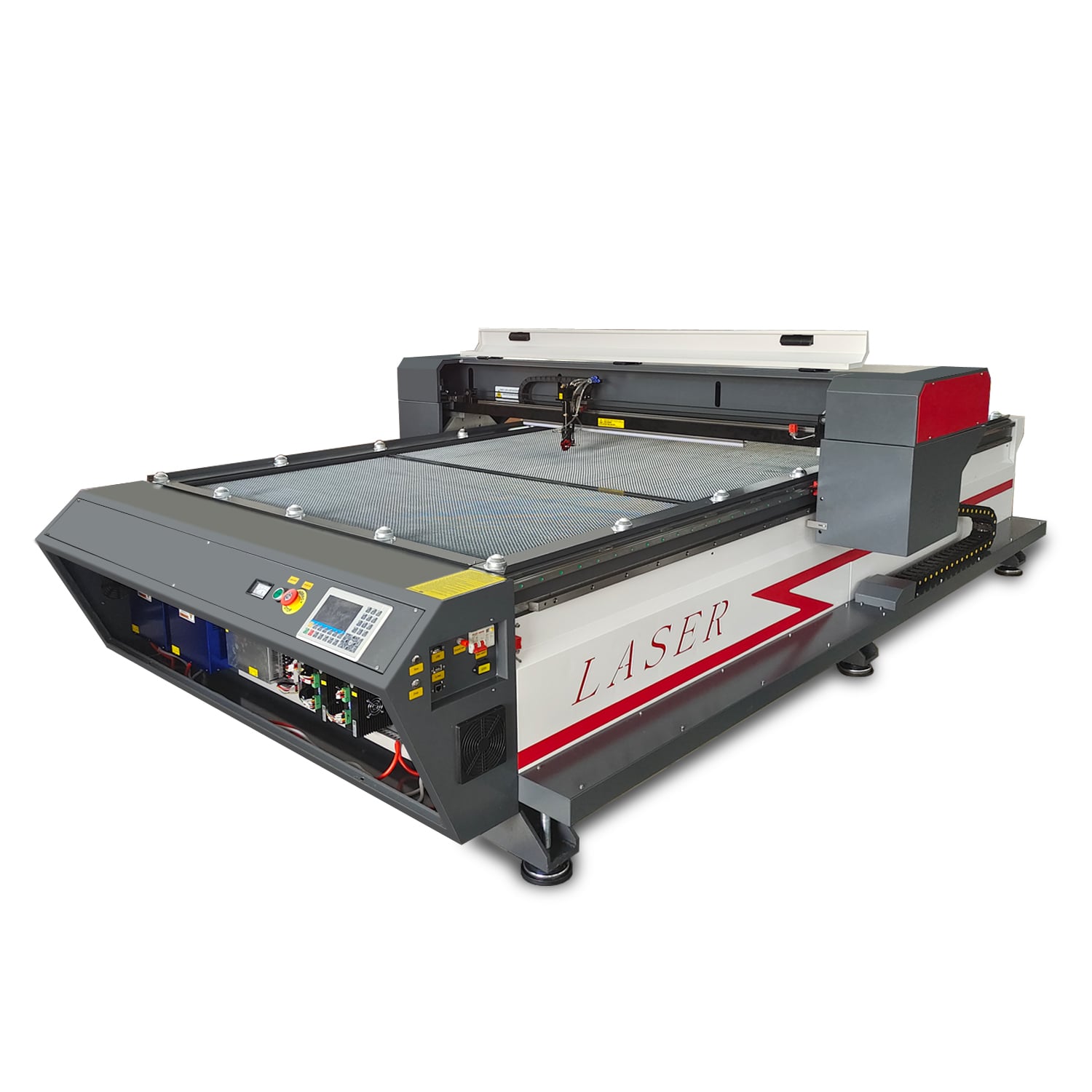

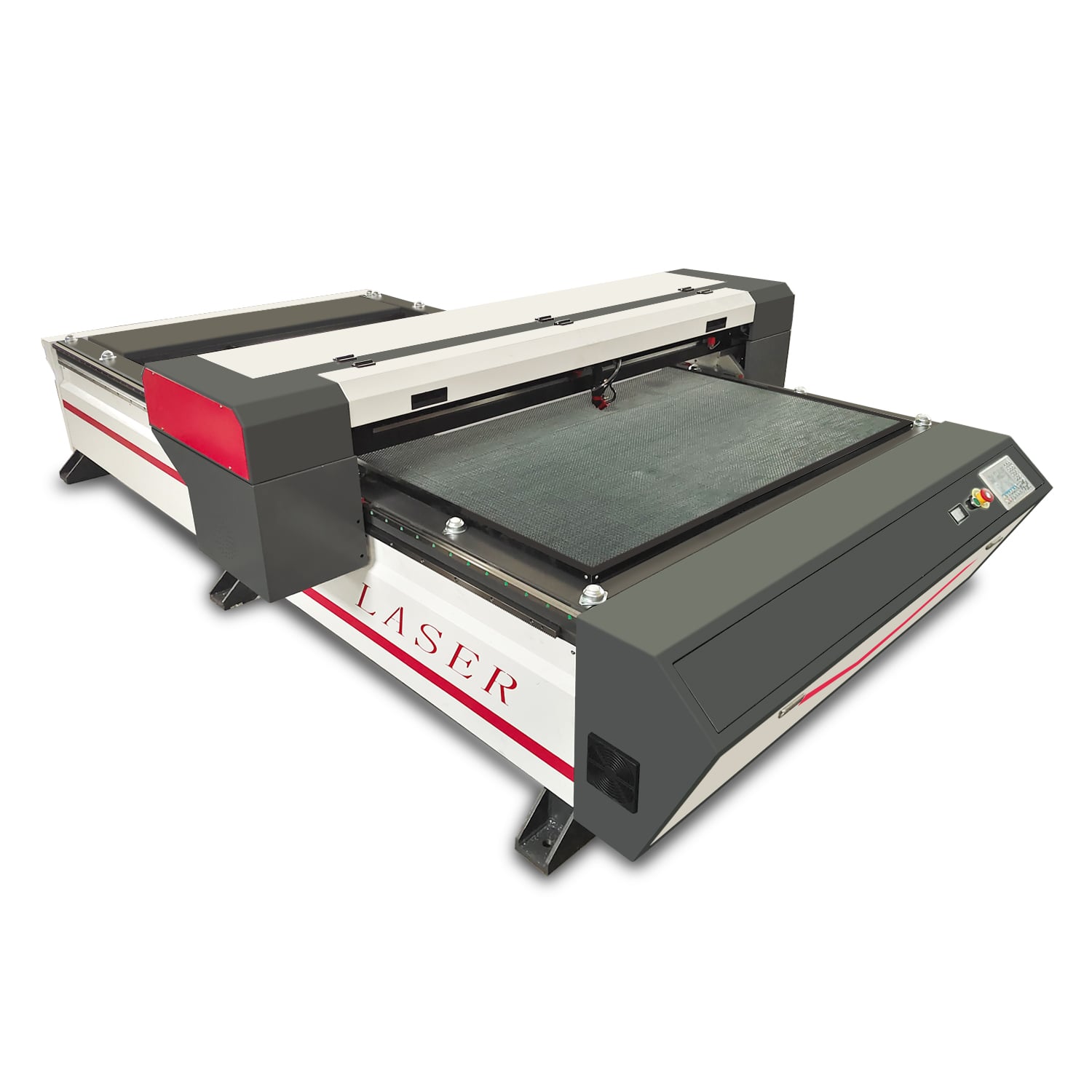

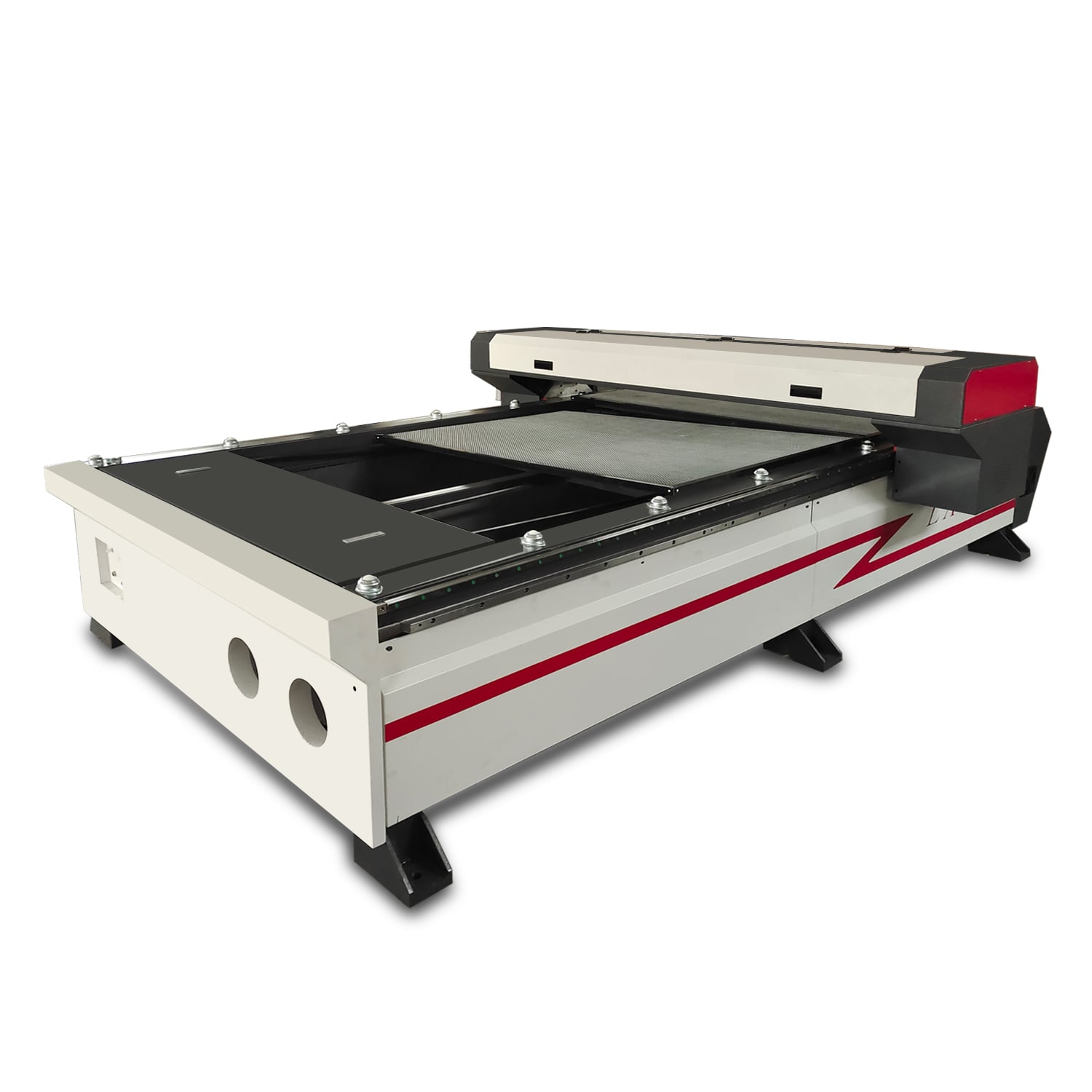

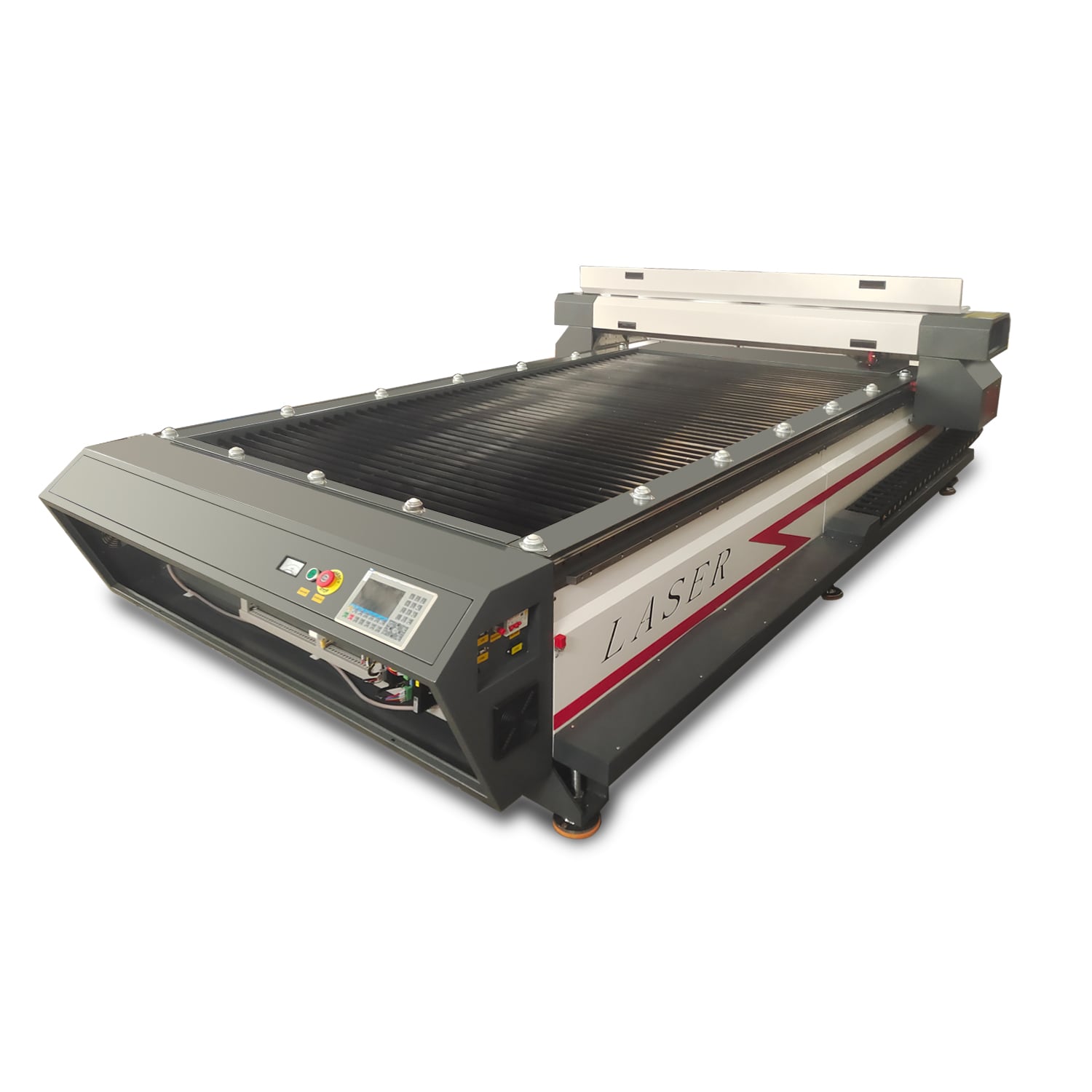

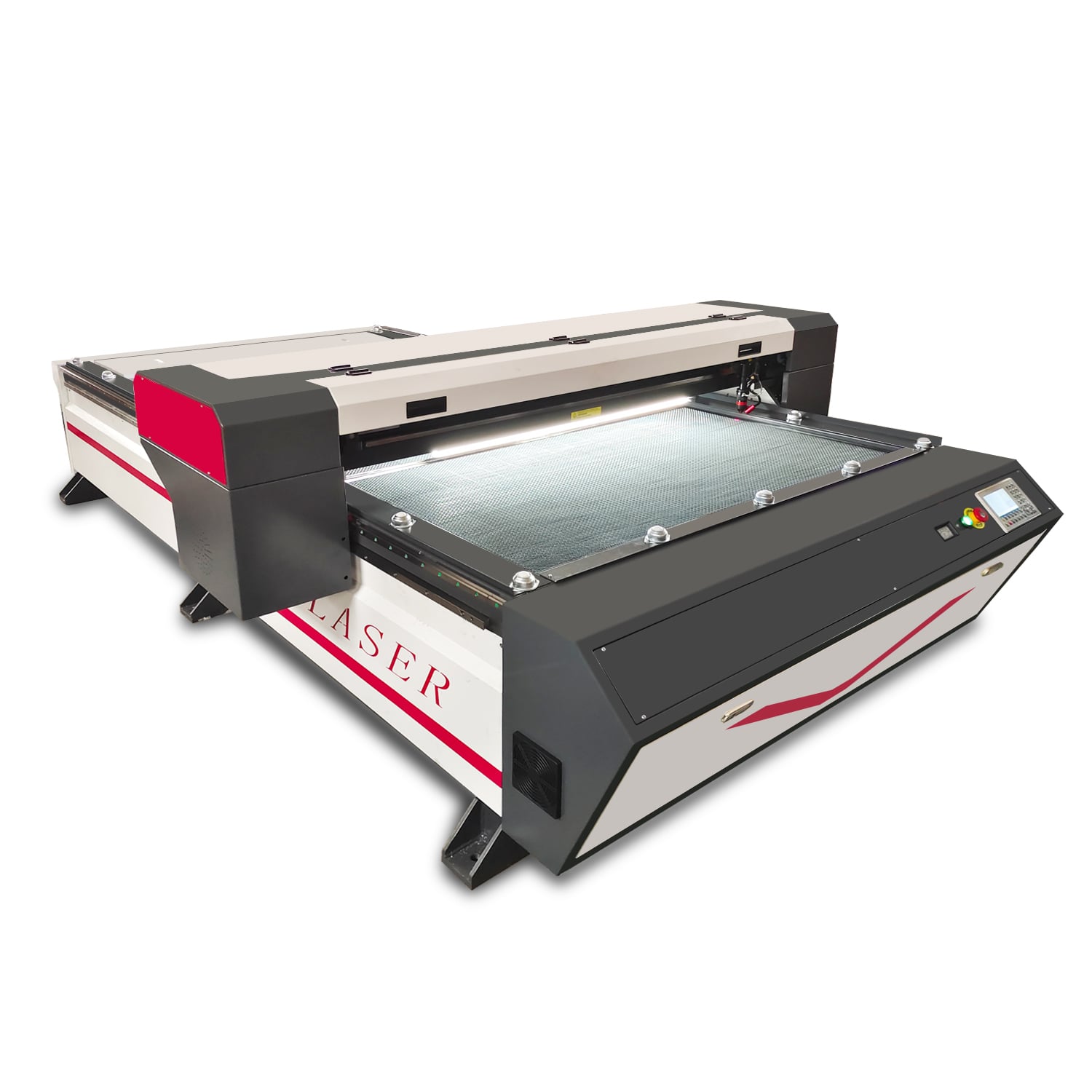

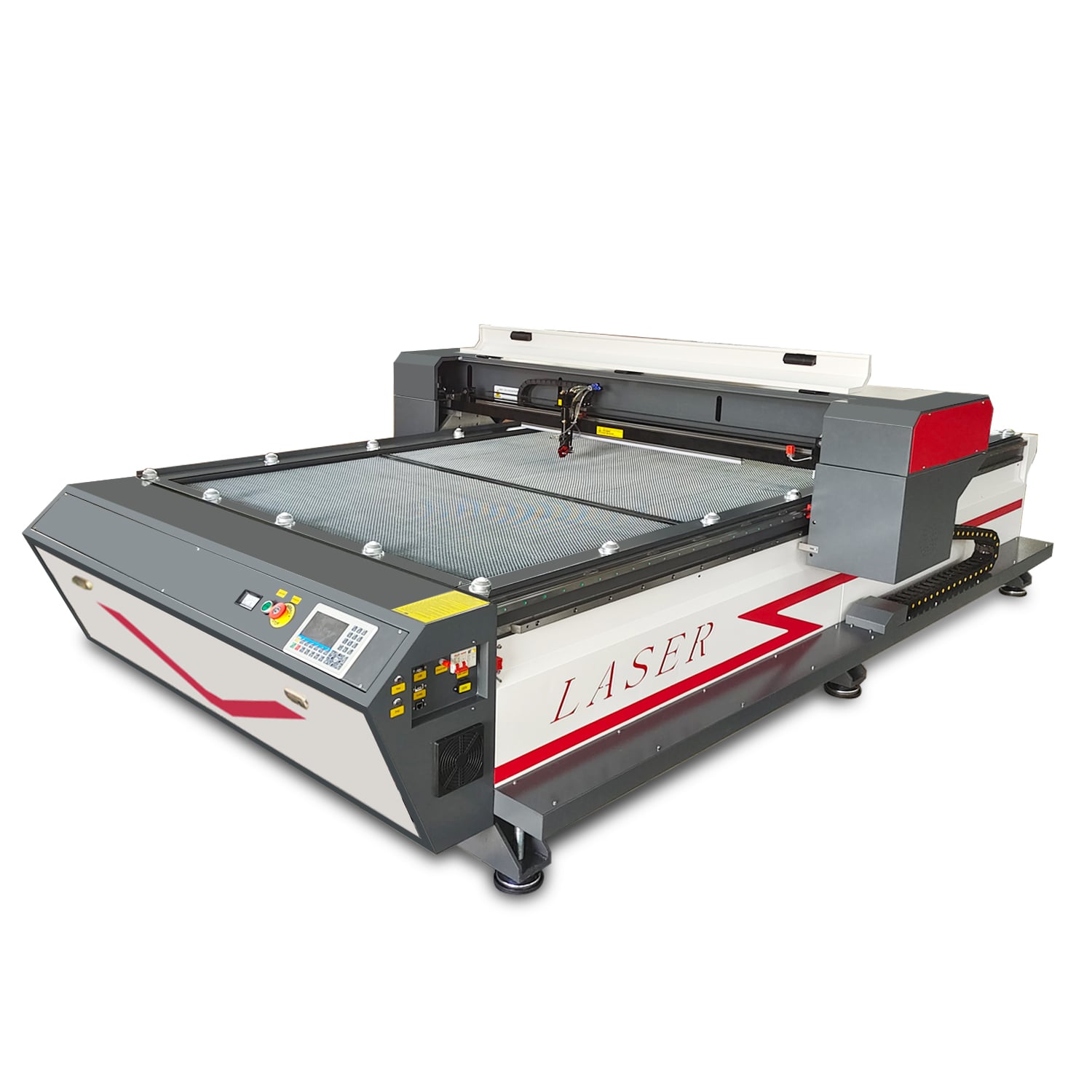

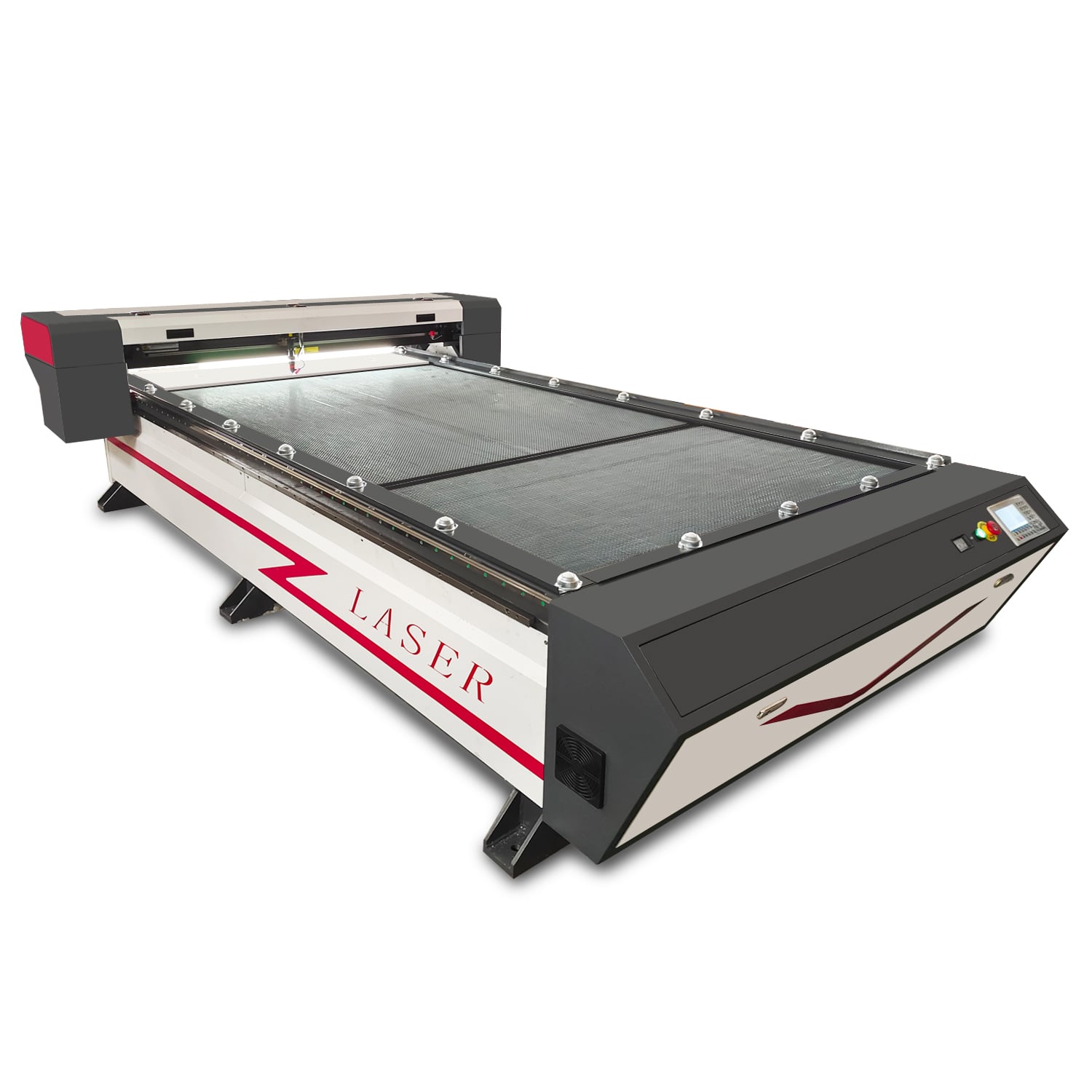

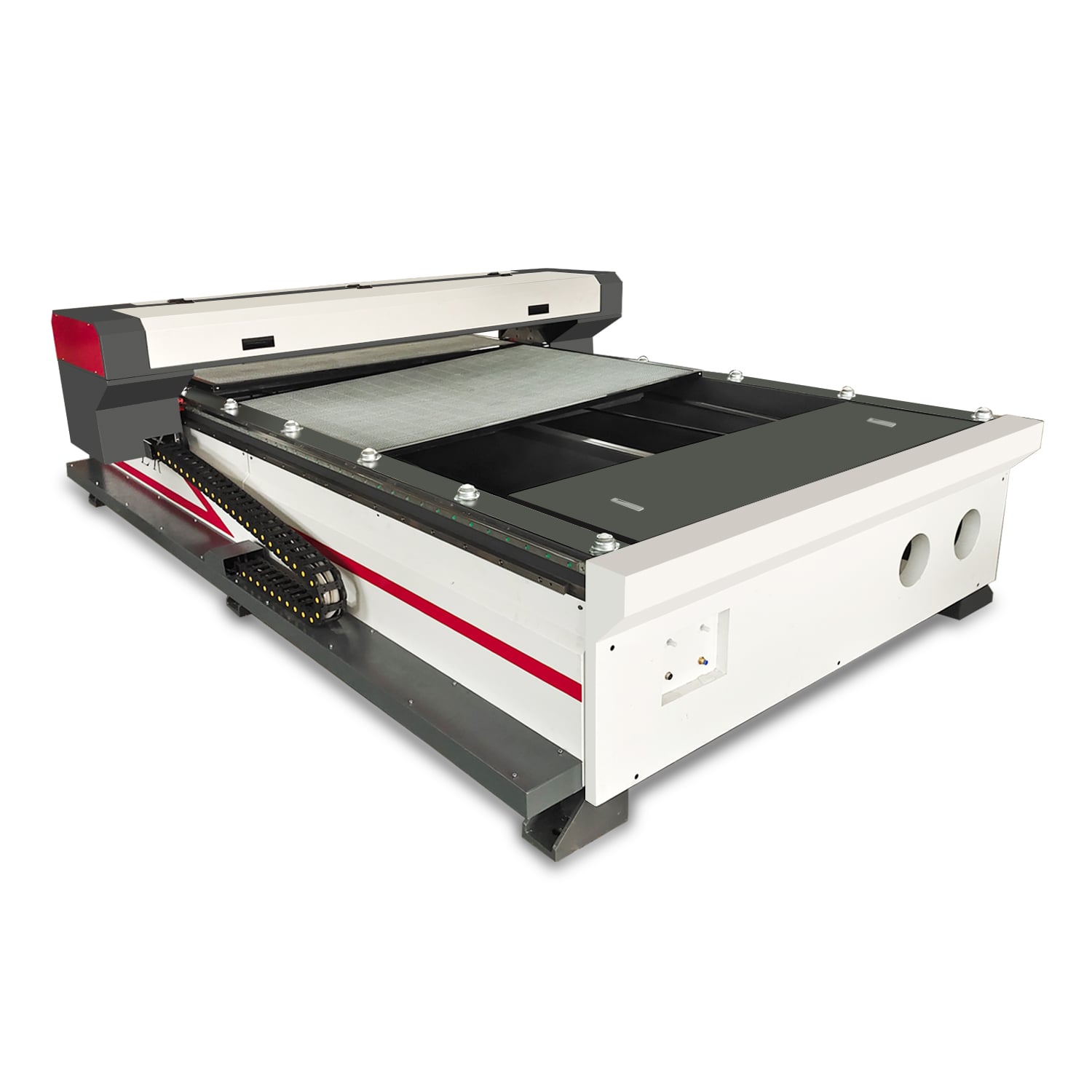

High-torque 1300x2500mm laser with rack & pinion drive for 30mm wood/acrylic. Ruida system, Leadshine motor. Inquire now for a free cutting test and catalog
1. High-Torque Rack and Pinion Drive System
Superior Stability: Unlike standard belt-driven machines, our FDC-1325 utilizes a precision YYC Rack and Pinion system on the Y-axis. This provides higher torque, zero stretching, and exceptional stability, ensuring perfect accuracy during high-speed, heavy-duty cutting.
Fast Response: Combined with Leadshine stepper motors, the rack drive enables rapid acceleration and stable movement for large-format processing.
2. 300W Super-Power Cutting Ability
Industrial Strength: Equipped with a 300W high-power CO2 laser tube (Yongli/EFR/Reci optional), designed for penetrating thick materials. It can easily cut through 25-30mm acrylic or thick wooden planks in a single pass with smooth, polished edges.
Constant Power: The professional 300W laser power supply ensures a stable beam output for 24-hour industrial production.
3. Heavy-Duty Precision Milled Machine Bed
Rigid Foundation: The chassis is constructed from thickened square tubes, welded and processed through a high-precision milling machine. This eliminates internal stress and prevents the bed from deforming, maintaining ≤0.01mm positioning accuracy over its lifetime.
Load Bearing: Designed to handle heavy materials across the entire 1300x2500mm work area without sagging or vibration.
4. Professional Ruida 8445 Control System
Intuitive Operation: Features the advanced Ruida 8445 controller with a large color display. It supports multi-layer processing, power-off resume, and is fully compatible with RDWorks and LightBurn.
Offline Support: Allows for standalone operation via U-disk, freeing up your computer and streamlining your production workflow.
5. Advanced Cooling & Safety Integration
Professional Chiller Included: Comes standard with a CW6000 industrial water chiller, providing high-performance temperature control to ensure the 300W laser tube operates at peak efficiency for longer.
Industrial Safety: Includes a panoramic fireproof viewing window, emergency stop, ammeter, and organized internal wiring for a safer work environment.
6. Pass-Through & Dual Bed Versatility
Unlimited Length: Front and rear pass-through doors allow for the feeding of materials longer than 2.5 meters.
Hybrid Platform: Equipped with both blade and honeycomb tables, making it versatile enough to handle everything from small delicate tags to oversized industrial components.
Machine Model: |
FDF-1325 rack laser engraving machine |
Laser Power: |
80W/100W/130W/150W/180W/300W/500W |
Work area: |
1300*2500mm |
Worktable: |
Blade platform (honeycomb board optional) |
positioning accuracy： |
＜ 0.01mm |
Power Supply: |
220V/AC-110V/AC,50-60HZ |
Cooling System: |
Water Cooling |
Overall dimensions: |
3340*1617*1000mm |
Operating Temperature: |
0-45℃ |
Engraving Speed: |
0-1500mm/s |
Cutting Speed: |
0-500mm/s |
Support graphic and textual formats: |
BMP/PLT/DXF/DST/COR/JPG….. |
1、This product comes with a one-year warranty from the date of purchase (excluding consumables). Optical lenses and laser tubes are consumables, with a three-month warranty。
2、During the warranty period, if there is a malfunction in the normal use of our company's products, you can enjoy our company's free warranty service by presenting the warranty card or invoice in accordance with the contents of this warranty clause.
Q: What customized services you provided?
A: Founder Laser is the true manufacturer, we have own factory, therefore we could supply full OEM and ODM service.
Q: What payment method you accept?
A: On Alibaba, we supply Trade Assurance Order, and VIA this method, you could pay by T/T, L/C, Credit Card, etc.
Q: What shipping methods you provide?
A: We give customer EXW, FOB, CFR, DDP, DDU, and any ways you want.
Q: How long is the delivery time?
A: About the production time, it depend on the machine mode you require and which country you from. About the shipping time, it
depend on the chosen transportation method.
Q: I don’t know how to use after i receive or i have problem during use, how to do?
A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished. We can also provide Door
Service if you need.
Q: I don’t know which one is suitable for me ?
A: Just tell us below information:
1) Max work size: choose most suitable model.
2) Materials and cutting thickness: power of laser generator.
3) Business industries: We sell a lot and give advice on this business line
