Pro 1300x900mm laser with HIWIN rails & detachable legs to save shipping cost. 1000mm/s speed, 25cm lifting table. Send inquiry for a customized quotation now!
1. Innovative Detachable Leg Design
Easy Transportation: The machine’s legs are fully detachable, allowing it to pass through standard narrow doors easily and significantly reducing international shipping volume and costs.
Flexible Setup: Perfect for workshops with limited entry space, providing industrial-scale processing power without the logistical headaches of large floor models.
2. Genuine Taiwan HIWIN Linear Guide Rails
Extreme Stability: Both X and Y axes are equipped with original HIWIN linear guides. This ensures a high load capacity and a smooth, vibration-free motion system, maintaining a positioning accuracy of ≤0.01mm.
Wear-Resistant: The square rail design is far more durable than common rollers, ensuring the machine remains rust-proof and precise over years of continuous use.
3. High-Performance Ruida Control & Leadshine Motion
Ruida 6445G System: Features a large color display and supports multi-language operation. It offers professional features like shortest-path planning and power-off resume for maximum productivity.
Leadshine Motor & Driver: Combined with high-torque Leadshine stepper motors, the machine achieves a rapid engraving speed of 1000mm/s and a cutting speed of 600mm/s.
4. Heavy-Duty Frame & Pass-Through Design
Vibration-Free Chassis: Built with thickened square tube welding and multiple aging treatments, ensuring the frame remains stable and level for 24-hour industrial production.

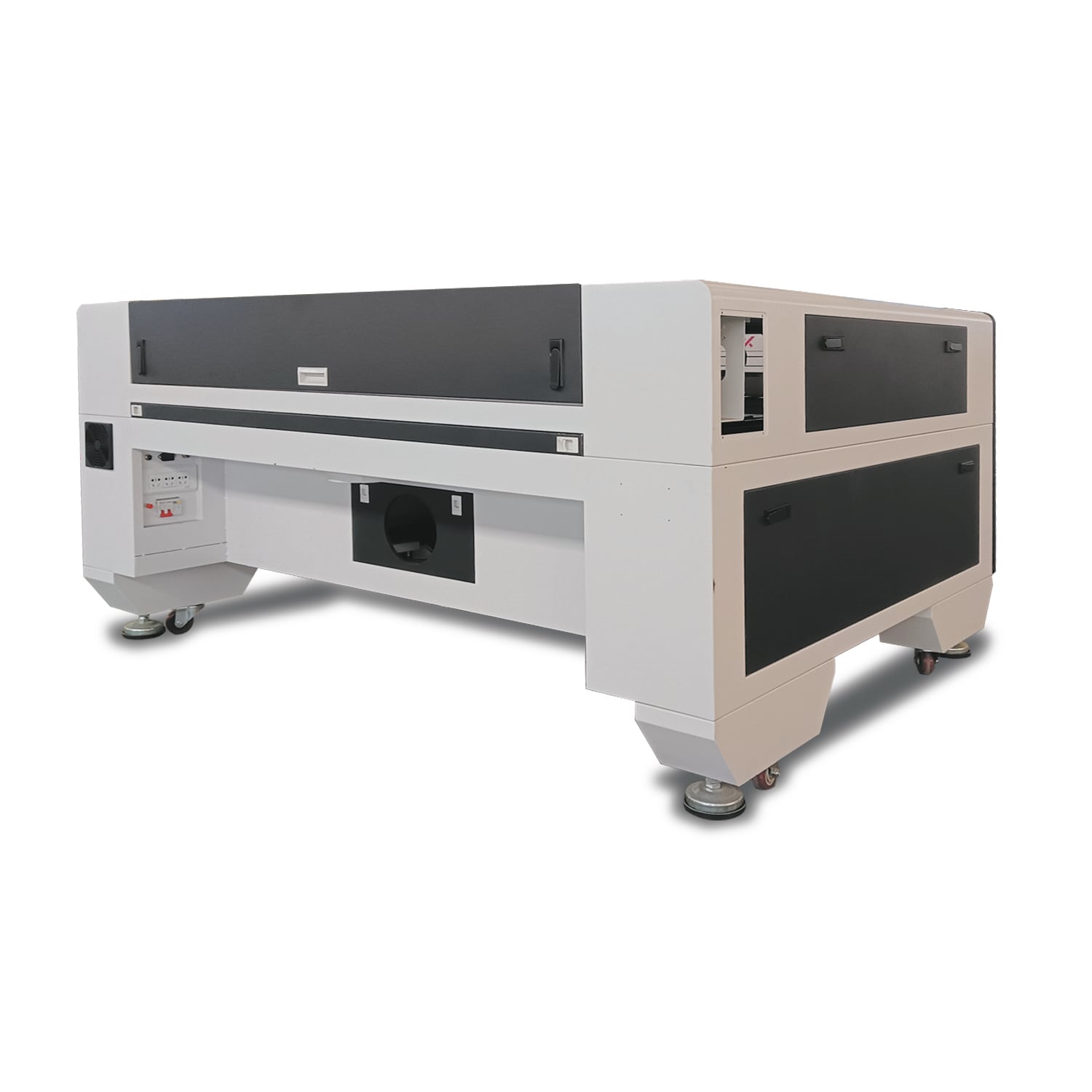

Unlimited Length Processing: Front and rear doors can be opened, allowing you to feed materials that are longer than the 1300x900mm work area through the machine.
5. 25cm Motorized Lifting & Dual Platform
Deep Clearance: Features a robust motorized lifting table with a 10-25cm stroke, ideal for processing thick objects or adding a rotary axis for cylindrical items.
Honeycomb & Blade Bed: Includes both platform types to handle everything from delicate fabrics to heavy wooden planks and thick acrylic (up to 25mm cutting depth).
6. Safety & Industrial Details

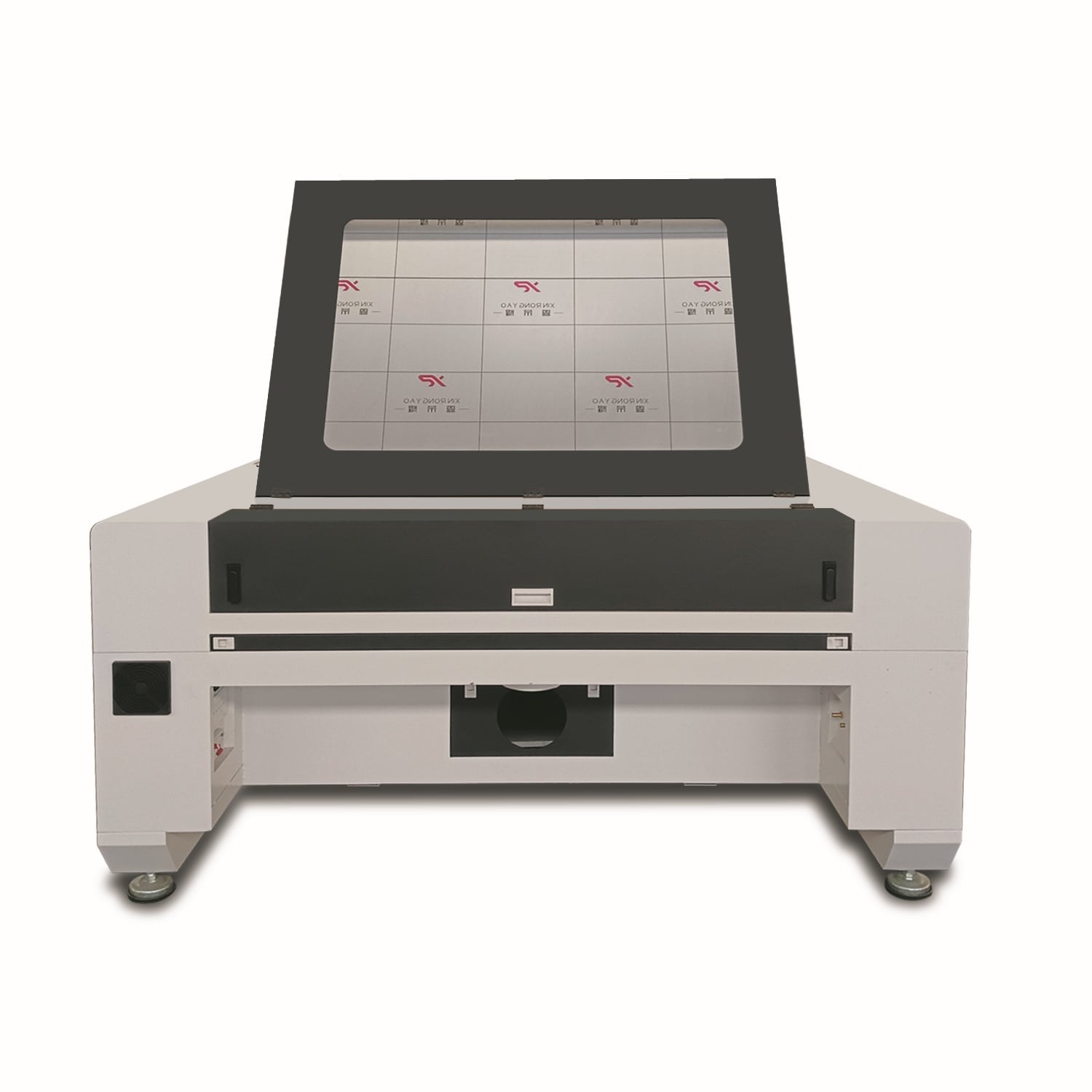

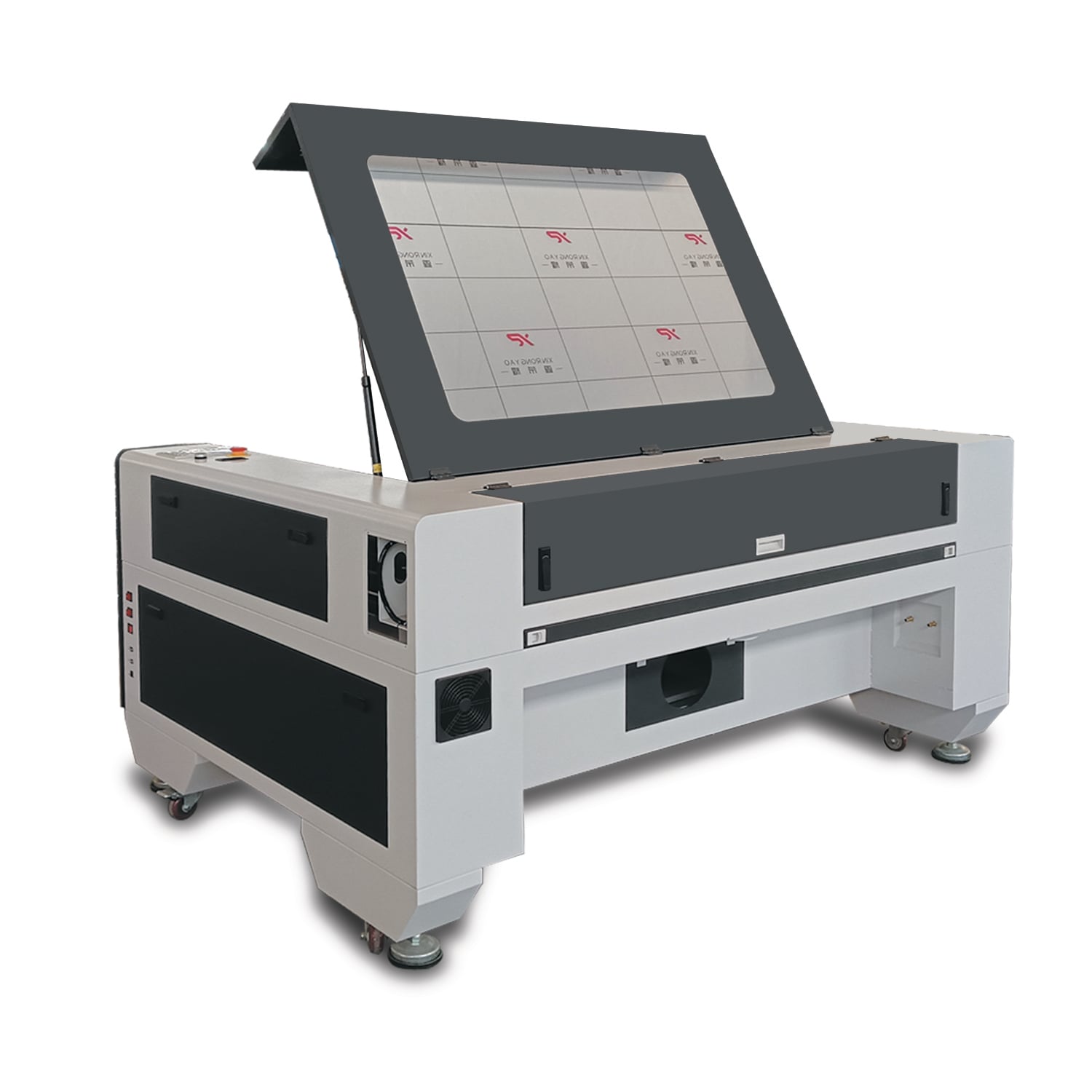

Fireproof Glass Lid: Equipped with a transparent fire-resistant glass door, providing a clear view of the process while ensuring maximum safety for the operator.
High-End Electronics: Organized electrical wiring, high-quality Omron limit switches, and an industrial laser head with built-in air assist and red light positioning for professional results.
Machine Model: |
FDC-1390 |
Laser Power: |
60W/80W/90-100W/100-130W |
Working Area: |
1300*900mm |
Maximum cutting depth: |
10/15/25mm (acrylic) |
Maximum cutting speed: |
0-600mm/s |
Maximum lifting speed： |
0-1000mm/s |
Minimum Forming Role： |
Letters: 1.5 x 1.5mm |
Operating voltage: |
220V/AC-110V/AC,50-60HZ |
Graphic format supported: |
Coreldraw、Photoshop、AI、CAD ETC |
Working temperature: |
0℃ - 45℃ |

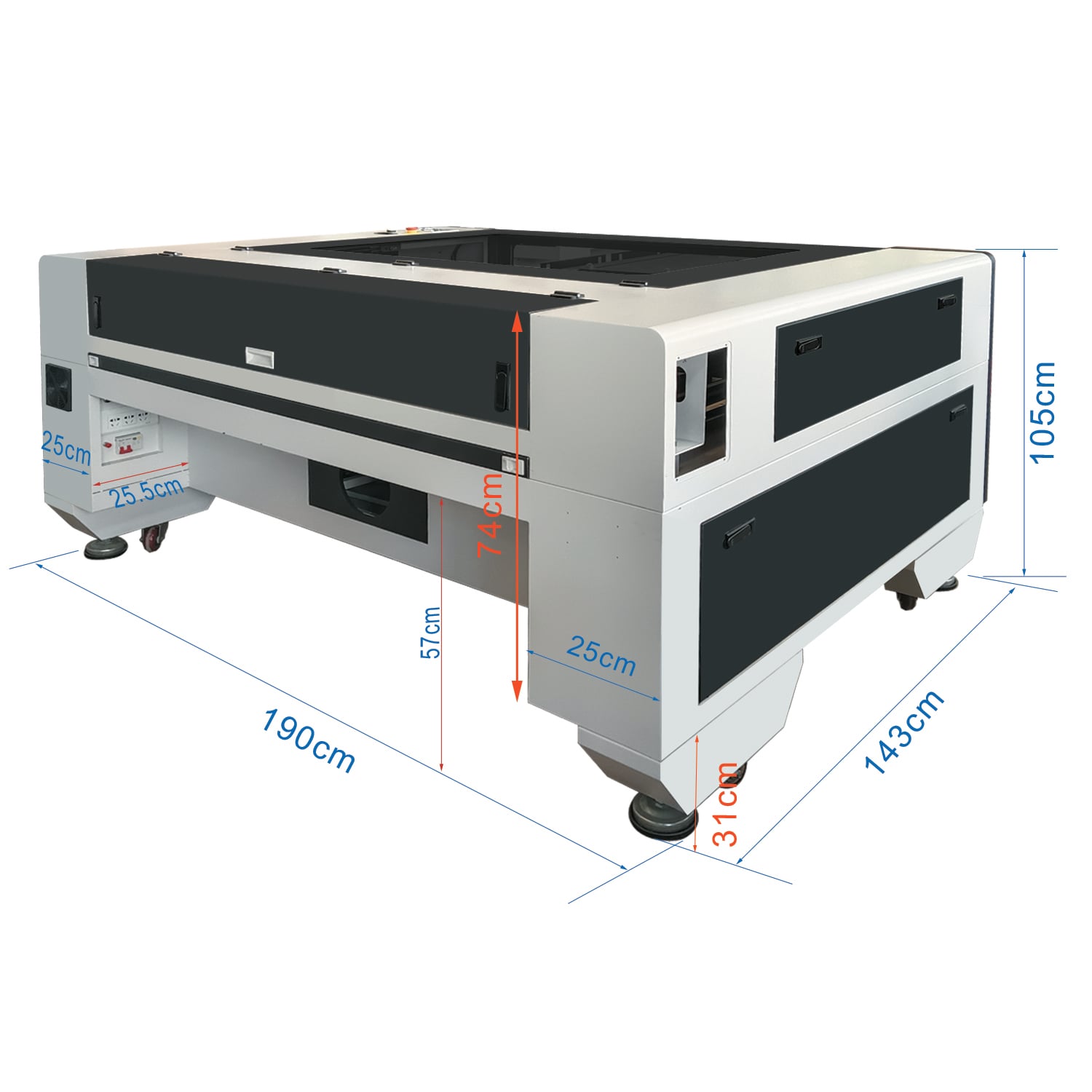

Machine dimensions: |
190*143*103cm |
Lifting distance： |
10-25cm |
1、This product comes with a one-year warranty from the date of purchase (excluding consumables). Optical lenses and laser tubes are consumables, with a three-month warranty。
2、During the warranty period, if there is a malfunction in the normal use of our company's products, you can enjoy our company's free warranty service by presenting the warranty card or invoice in accordance with the contents of this warranty clause.
Q: What customized services you provided?
A: Founder Laser is the true manufacturer, we have own factory, therefore we could supply full OEM and ODM service.
Q: What payment method you accept?
A: On Alibaba, we supply Trade Assurance Order, and VIA this method, you could pay by T/T, L/C, Credit Card, etc.
Q: What shipping methods you provide?
A: We give customer EXW, FOB, CFR, DDP, DDU, and any ways you want.
Q: How long is the delivery time?
A: About the production time, it depend on the machine mode you require and which country you from. About the shipping time, it
depend on the chosen transportation method.
Q: I don’t know how to use after i receive or i have problem during use, how to do?
A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished. We can also provide Door
Service if you need.
Q: I don’t know which one is suitable for me ?
A: Just tell us below information:
1) Max work size: choose most suitable model.
2) Materials and cutting thickness: power of laser generator.
3) Business industries: We sell a lot and give advice on this business line
