Desktop 300x200mm work area with 50W CO2 tube. X-axis linear guide & Y-axis dual shafts for 0.1mm accuracy. Supports CorelDraw. Inquire now for a free demo!

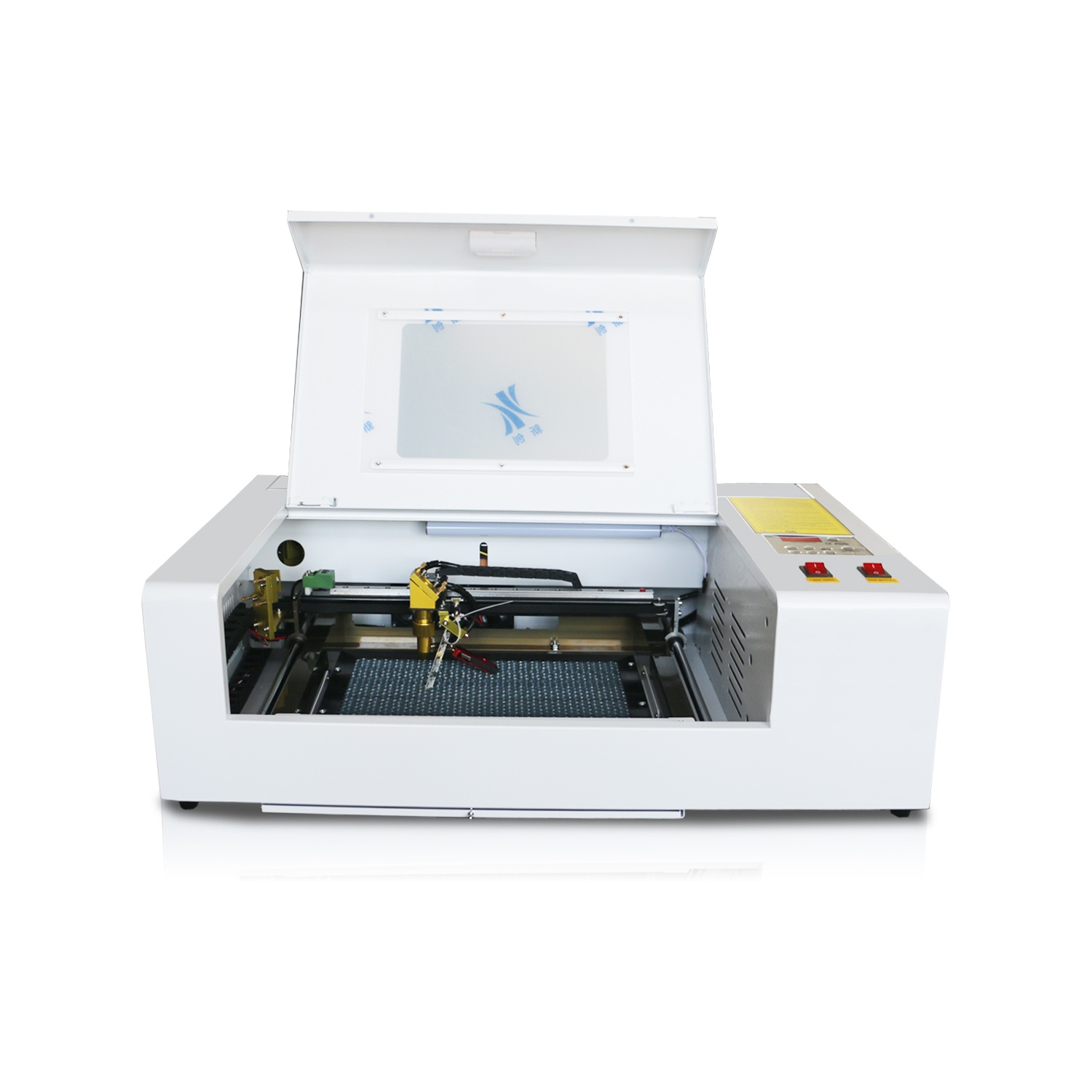

1. High-Precision Motion System
X-axis Linear Guide & Y-axis Dual Shafts: Unlike traditional wheel-style mini engravers, the FDC-320 uses industrial-grade linear guides and dual optical shafts to ensure zero-vibration at 400mm/s high speeds, maintaining 0.1mm positioning accuracy.
Upgraded 42 Stepper Motor: Provides stronger torque and more stable power output for long-term continuous operation.
2. Professional Laser Output
Stable 40W/50W CO2 Tube: Equipped with a high-quality sealed CO2 laser tube with extended lifespan. It can engrave characters as small as 1mm clearly on various materials.
Red Light Pointer & Air Assist: Built-in red light for precise positioning and air blowing to prevent burning during cutting, ensuring a clean finish.
3. Robust & User-Friendly Design
Thickened Machine Chassis: The reinforced metal casing prevents deformation, ensuring the optical path remains aligned even after long-distance shipping.
Dual Switch Control: Independent power and laser control switches for enhanced safety during testing and daily maintenance.
Dual Platform Compatibility: Supports both honeycomb and fixture tables, making it versatile for everything from thin paper cutting to thick wood/stone engraving.
4. Wide Industry Compatibility
Software Support: Fully compatible with CorelDraw, CorelLaser, and M2 controllers. Supports multiple file formats like PLT, AI, DXF, BMP, and JPG.
Application Ready: Ideal for craft engraving (wood, bone, leather), advertising signage (acrylic, double-color board), and professional stamp making.
Machine Model: |
3020 Co2 Laser Engraving Machine |
Laser Power: |
40W/50W |
Working Area: |
300 x 200mm（X-Y） |
Engraving Speed: |
1-400mm/s |
Positioning accuracy： |
0.1mm |
Graphic format supported: |
PLT/AI/DXF/BMP/JPG....... |
Operating voltage: |
220V/AC-110V/AC,50-60HZ |
Minimum character: |
1mm |
Cooling Method |
Water Cooling |
Machine Weight |
32-36kg |
Working temperature |
1-45℃ |
Support software |
Coreldraw/Corellaser/M2 |
1、This product comes with a one-year warranty from the date of purchase (excluding consumables). Optical lenses and laser tubes are consumables, with a three-month warranty。
2、During the warranty period, if there is a malfunction in the normal use of our company's products, you can enjoy our company's free warranty service by presenting the warranty card or invoice in accordance with the contents of this warranty clause.
Q: What customized services you provided?
A: Founder Laser is the true manufacturer, we have own factory, therefore we could supply full OEM and ODM service.
Q: What payment method you accept?
A: On Alibaba, we supply Trade Assurance Order, and VIA this method, you could pay by T/T, L/C, Credit Card, etc.
Q: What shipping methods you provide?
A: We give customer EXW, FOB, CFR, DDP, DDU, and any ways you want.
Q: How long is the delivery time?
A: About the production time, it depend on the machine mode you require and which country you from. About the shipping time, it
depend on the chosen transportation method.
Q: I don’t know how to use after i receive or i have problem during use, how to do?
A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished. We can also provide Door
Service if you need.
Q: I don’t know which one is suitable for me ?
A: Just tell us below information:
1) Max work size: choose most suitable model.
2) Materials and cutting thickness: power of laser generator.
3) Business industries: We sell a lot and give advice on this business line
