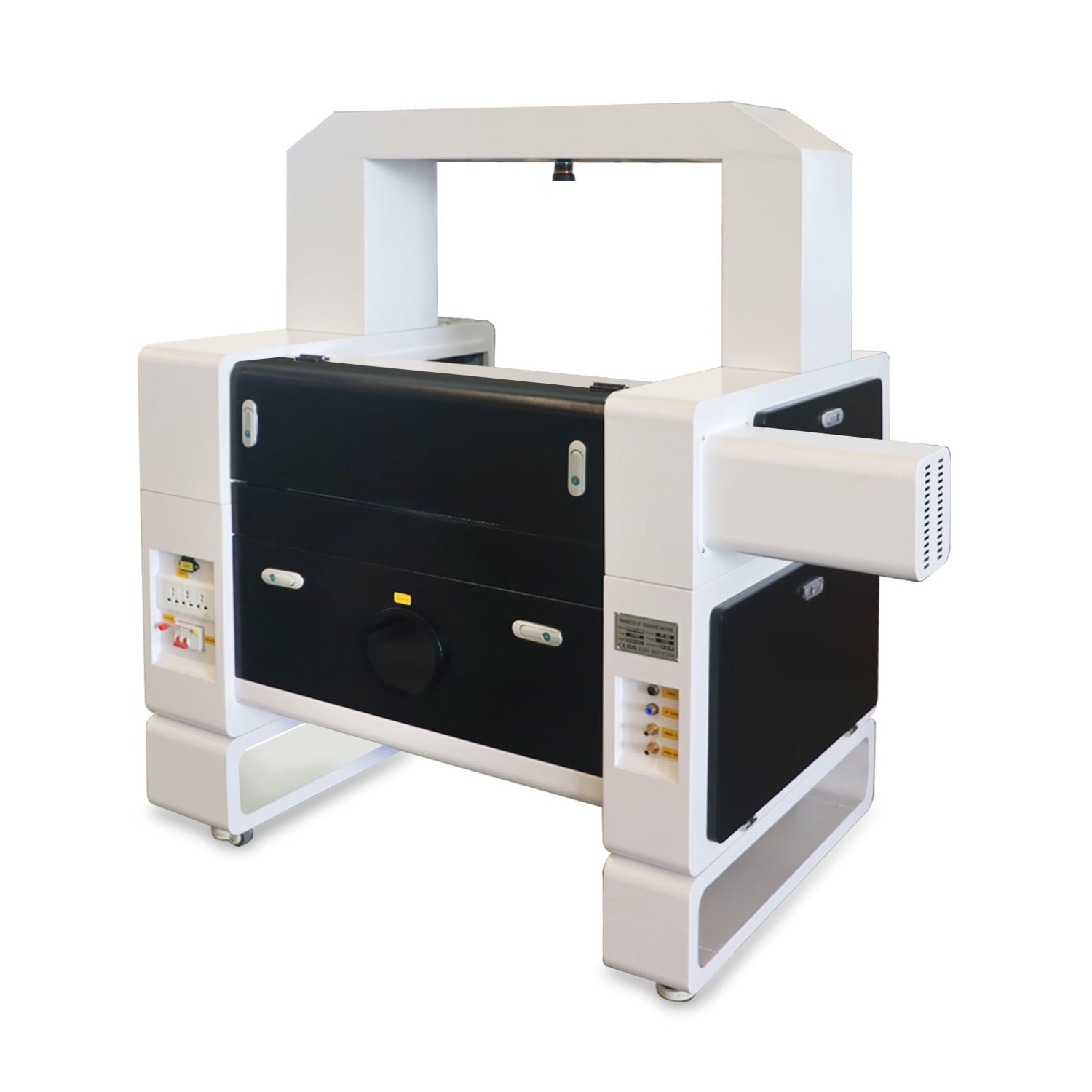

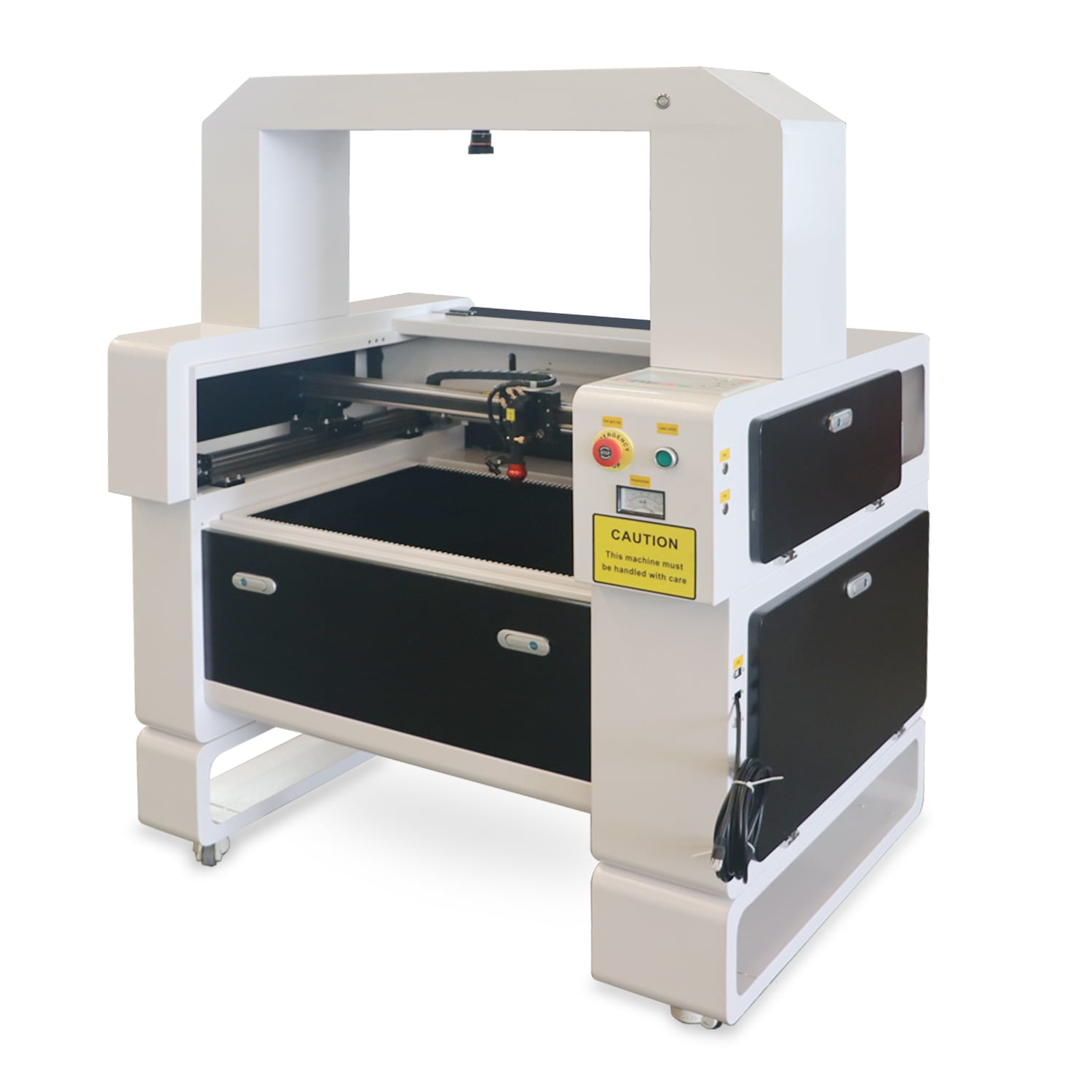

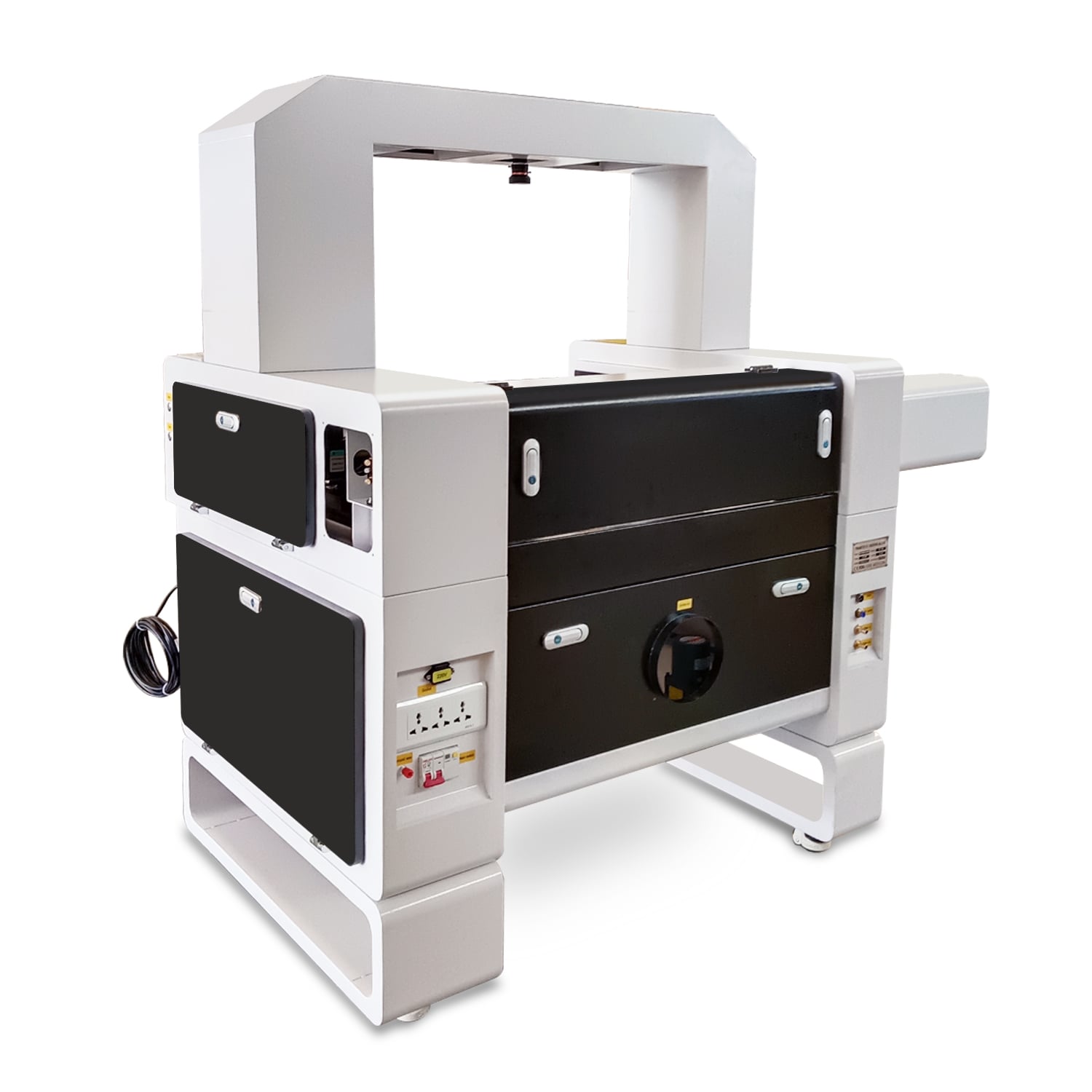

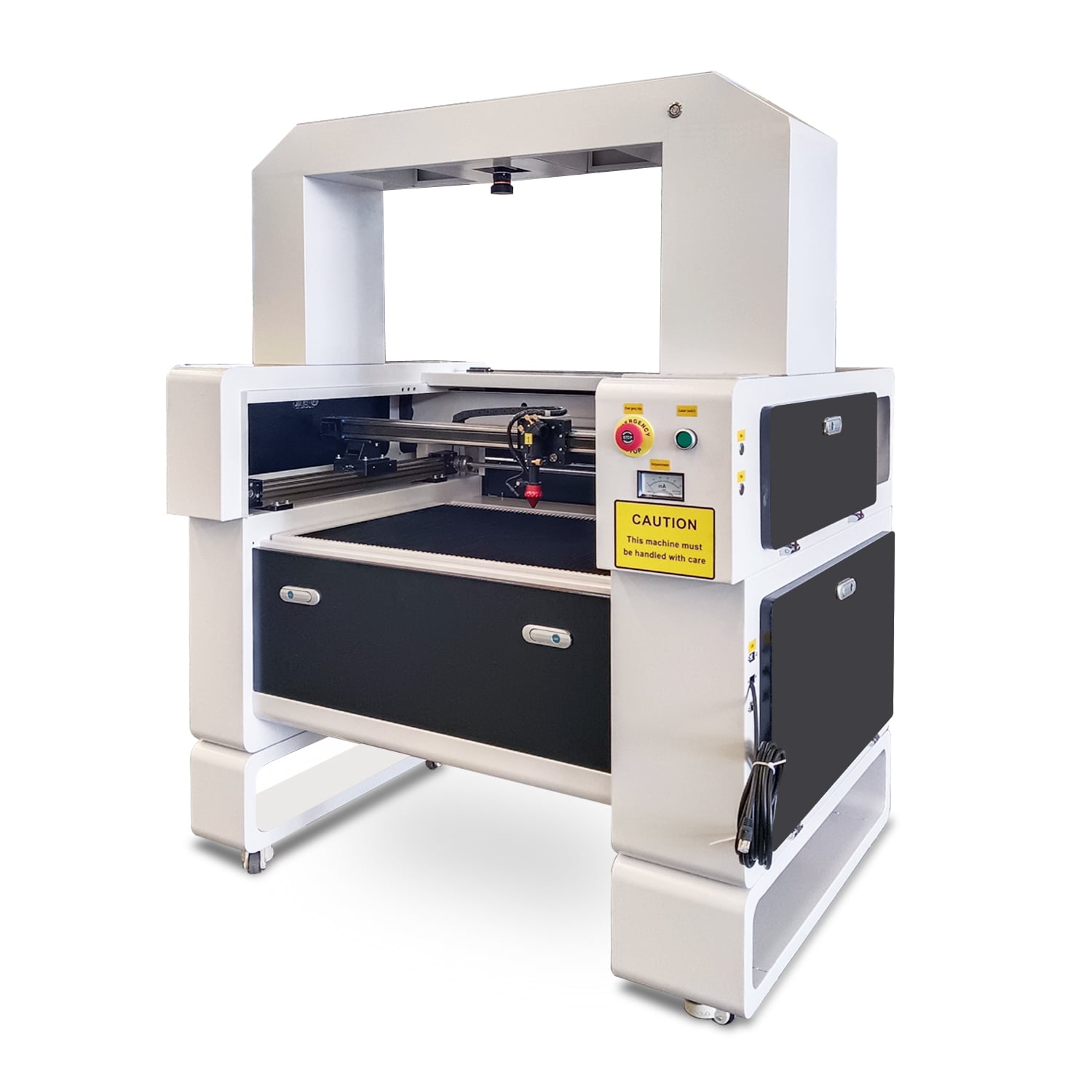

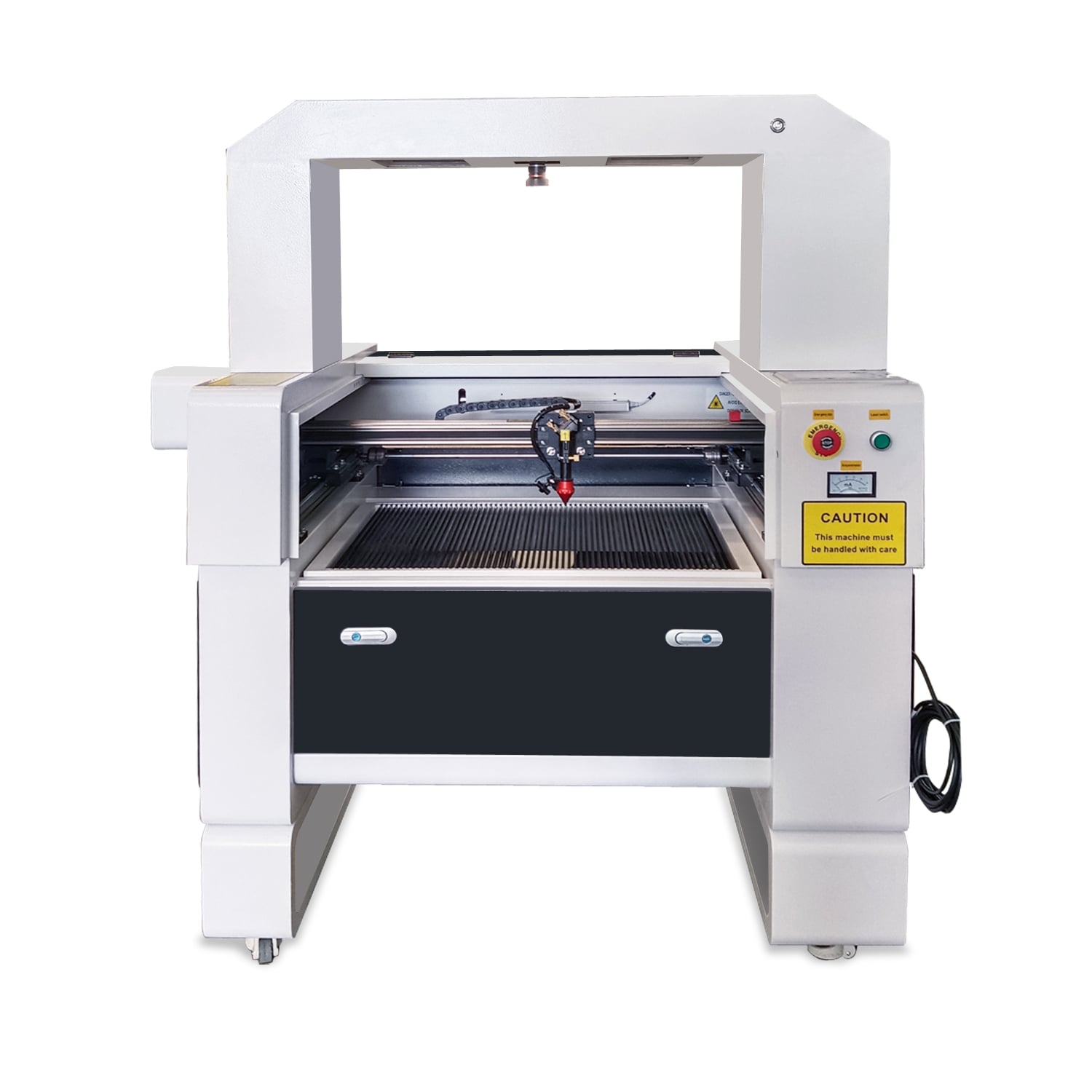

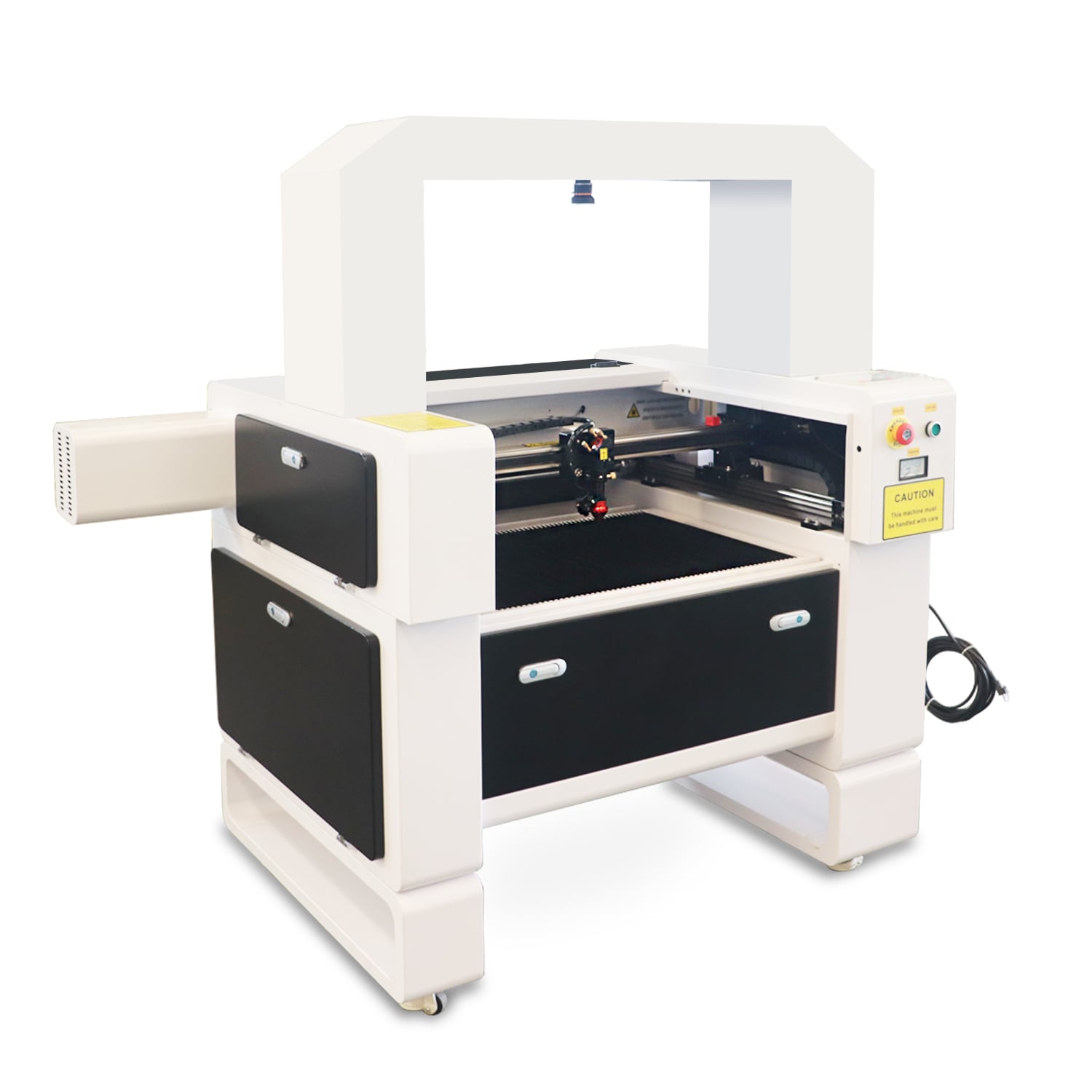

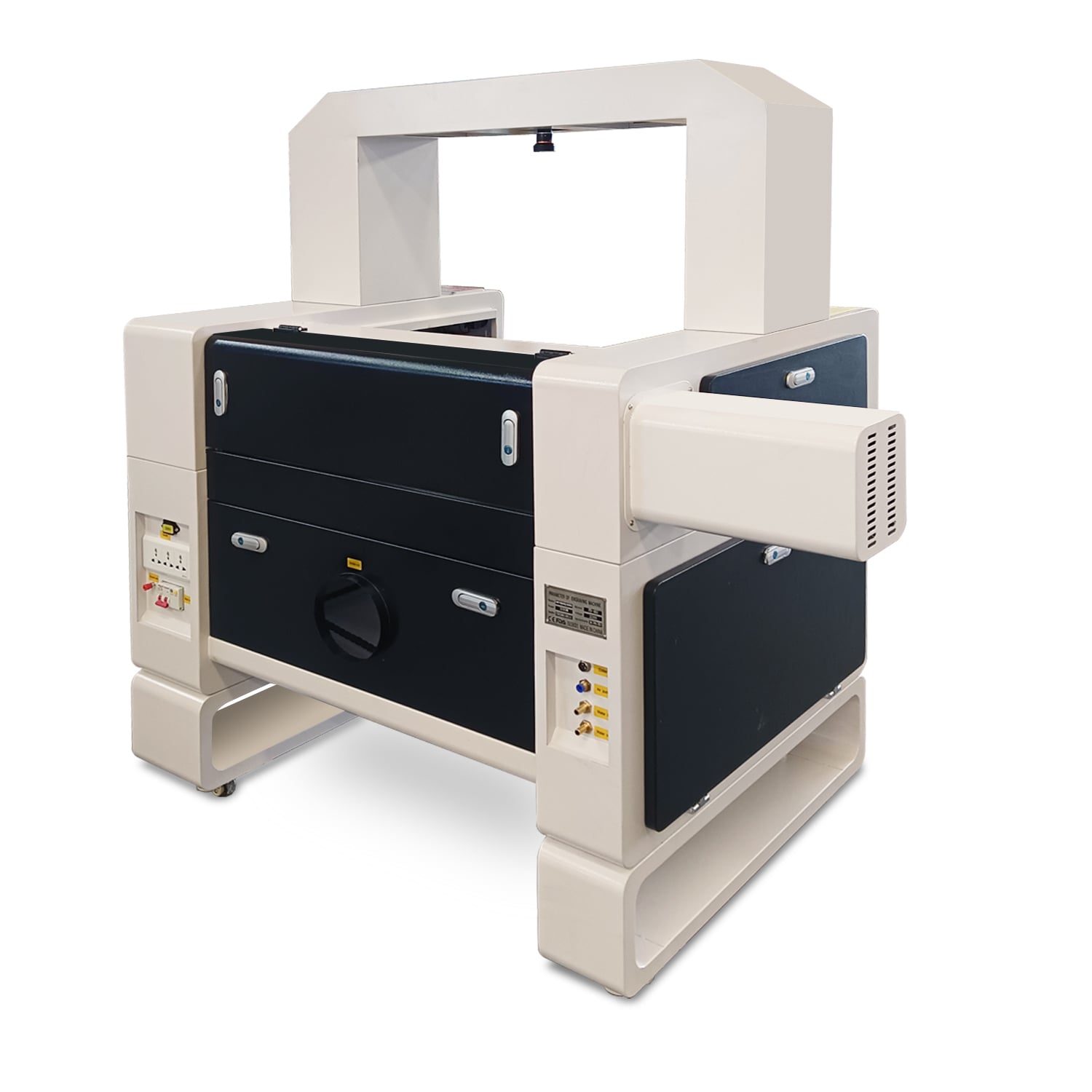

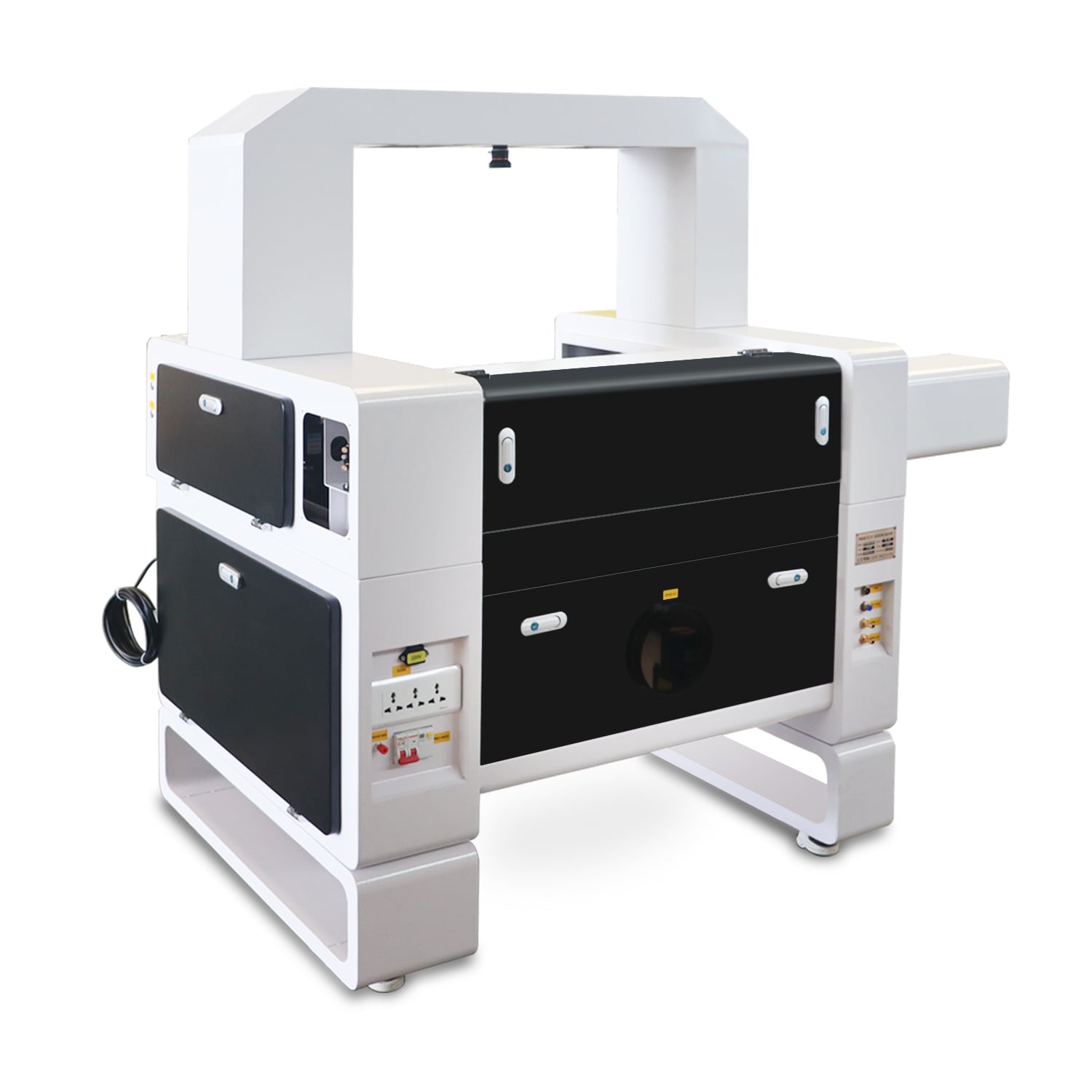

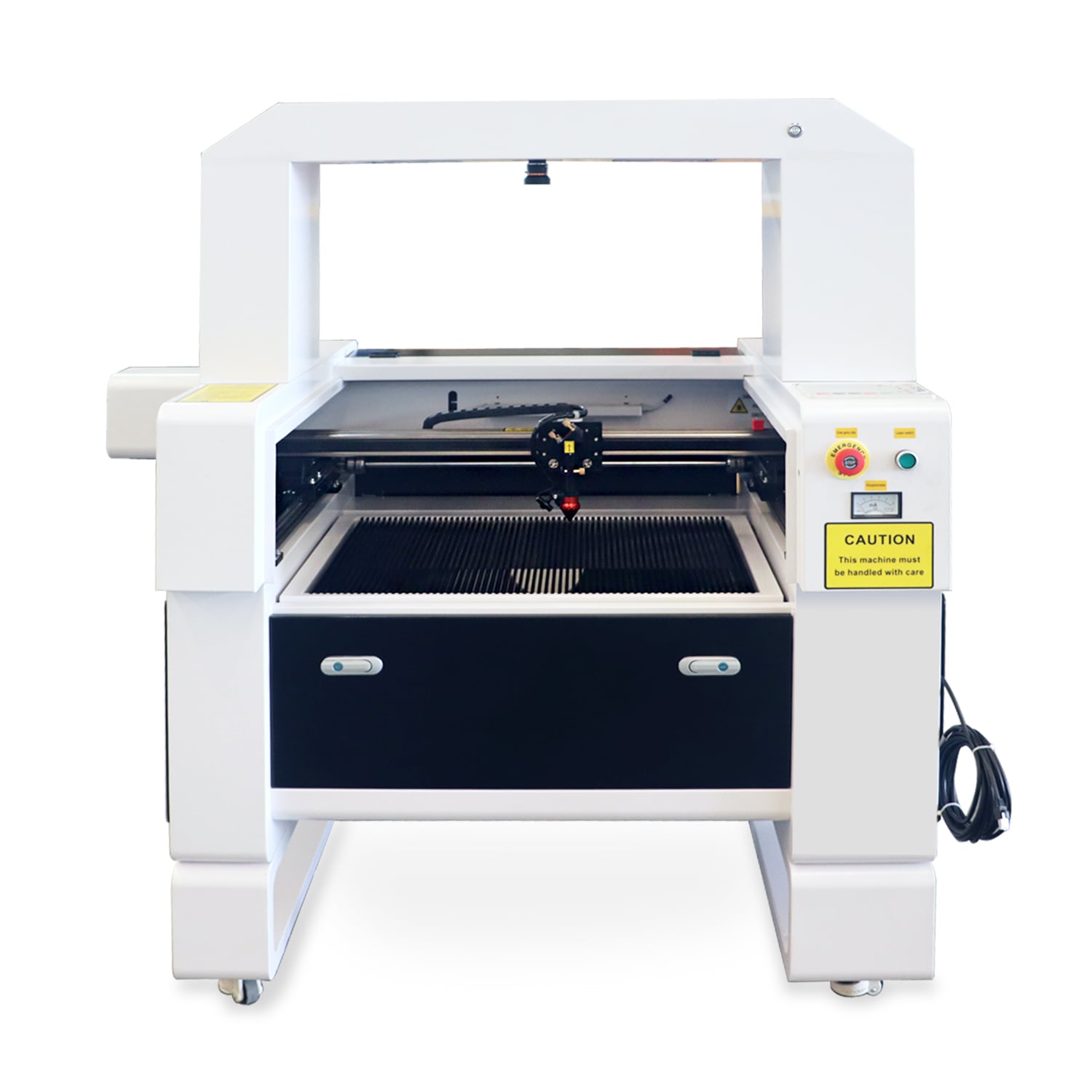

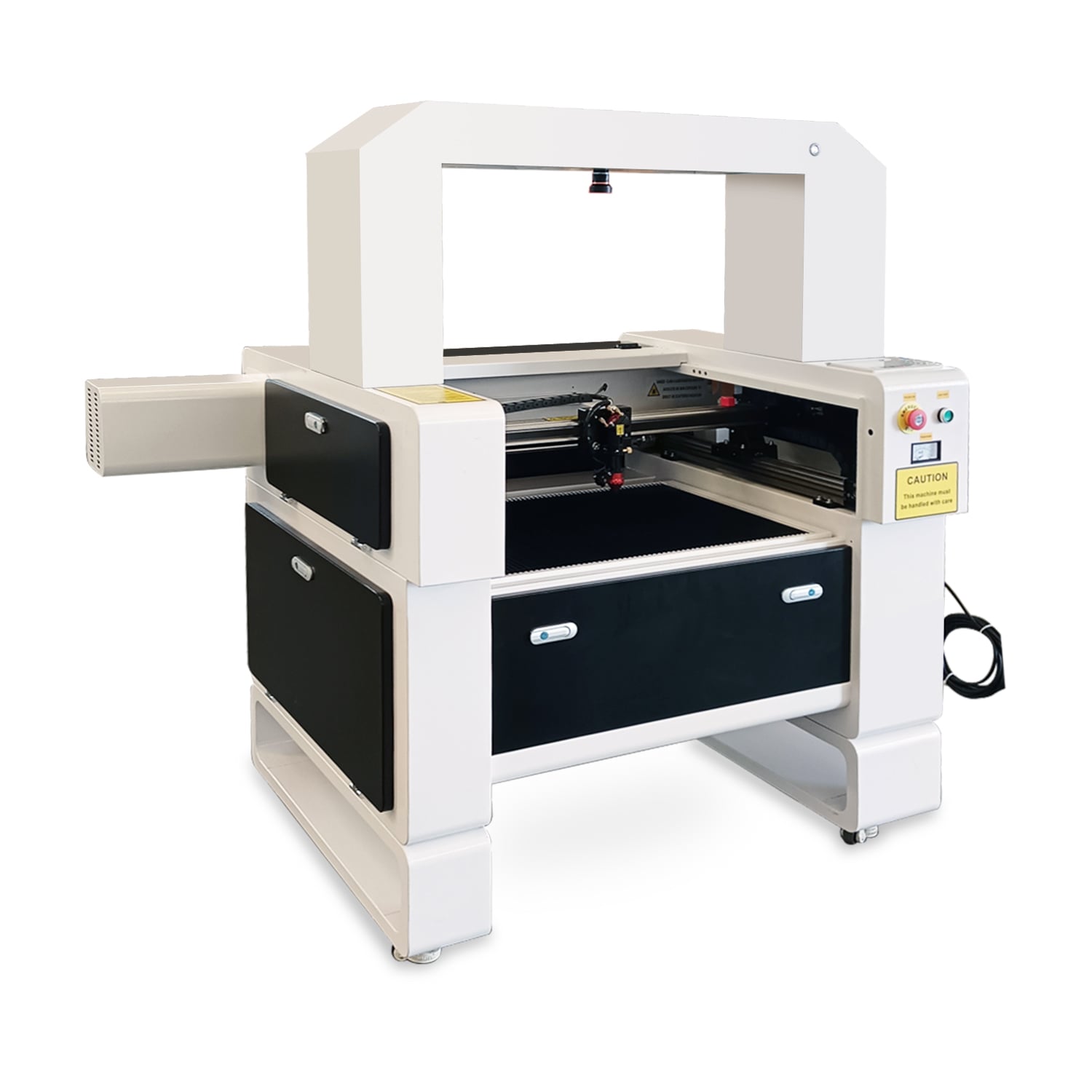

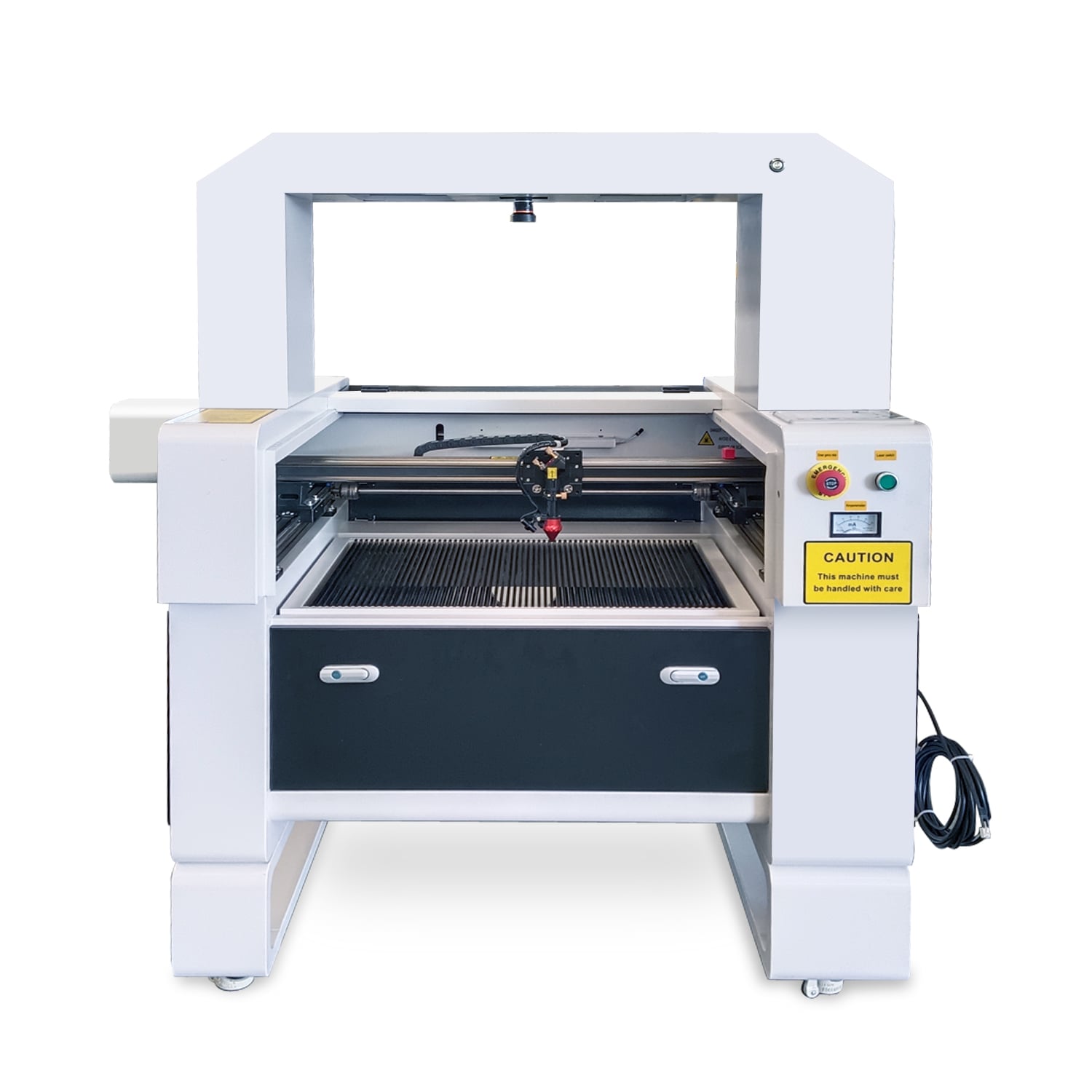

Auto-contour 400x600mm CO2 laser with HD CCD camera. 0.01mm precision & 1000mm/s speed. Perfect for woven labels & leather. Inquire now for a live video demo!
1. Advanced CCD Visual Recognition System
Auto-Contour Extraction: Equipped with a high-definition industrial CCD camera, the system automatically identifies and extracts the outlines of printed graphics. It solves the problem of material deformation during processing.
Precision Positioning: Achieves high-precision imaging with a positioning accuracy of ≤0.01mm. It supports continuous recognition and micro-adjustment during the cutting process, ensuring 10x higher accuracy than traditional manual positioning.
2. High-Speed & High-Precision Motion System
1000mm/s Engraving Speed: The perfect combination of a stable stepper motor drive and a high-precision external sliding module allows the machine to maintain extreme accuracy even at high speeds of 1000mm/s.
Smooth Cutting Edges: Capable of cutting at speeds up to 400mm/s, delivering clean, ripple-free edges on fabrics, acrylic, and wood.
3. Optimized Optical & Laser Transmission
Long-Life Laser Tube: Supports 50W/60W/80W CO2 glass laser tubes. The flying light path design, combined with imported reflective and focus lenses, minimizes laser loss and ensures a finer, more concentrated spot for delicate work.
Stable Output: Professional Qiancheng control system is easy to learn and ensures stable power delivery for consistent batch production.
4. Motorized Lifting Platform & Versatility
Adjustable Height: Features a motorized lifting table, allowing the machine to accommodate materials of varying thicknesses or the installation of a rotary axis for cylindrical items.
Dual Bed Options: Supports both honeycomb and blade platforms, making it suitable for everything from soft textiles to rigid acrylic sheets.
5. Industrial Design for Durability
Superior Heat Dissipation: The well-organized electromechanical box and high-performance cooling fans ensure electronic components stay cool, significantly extending the machine's operational lifespan.
Dust & Rust Proof: The reinforced chassis and professional wiring are designed to withstand industrial environments while maintaining an aesthetic appearance.
6. Multi-Industry Application Expert

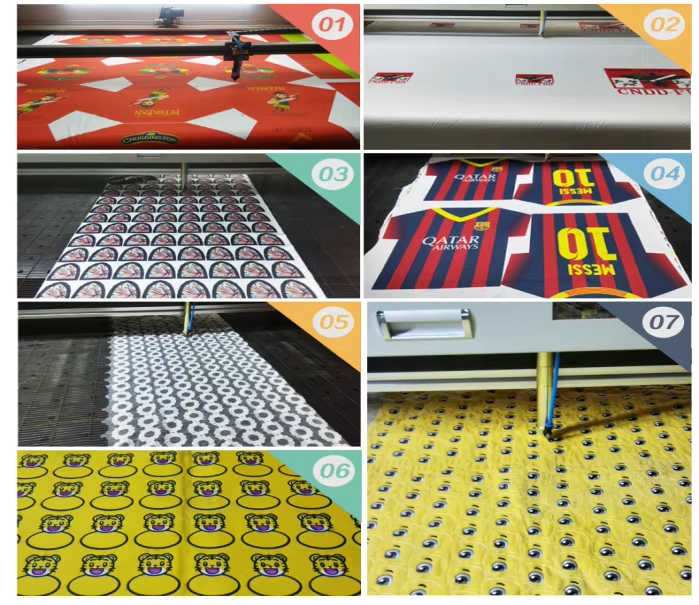

Specialized for Soft Goods: Ideally suited for embroidery patches, woven labels, apparel denim, plush toys, and leather goods. It is also highly effective for craft processing on acrylic, wood, and crystal.
Software Compatible: Seamlessly integrates with CorelDraw, Photoshop, AI, and AutoCAD, supporting formats like PLT, AI, DXF, BMP, and JPG.
Machine Model: |
4060 laser engraving machine |
Laser Power: |
50W/60W/80W |
Working Area: |
400mm x 600mm |
Cutting Speed: |
0-400mm/s |
Engraving speed: |
0-1000mm/s |
Operating voltage: |
220V/AC-110V/AC,50-60HZ |
Graphic format supported: |
Coreldraw、Photoshop、AI、CAD ETC |
Cooling Method: |
Water Cooling |
Machine dimensions: |
112*86*148 Extended cover: 30cm; Longmen height: 47cm |
Working temperature: |
5℃ - 35℃ |
Packaging size: |
149*96*139cm |
Body/Packaging Weight： |
110kg/140KG |
1、This product comes with a one-year warranty from the date of purchase (excluding consumables). Optical lenses and laser tubes are consumables, with a three-month warranty。
2、During the warranty period, if there is a malfunction in the normal use of our company's products, you can enjoy our company's free warranty service by presenting the warranty card or invoice in accordance with the contents of this warranty clause.
Q: What customized services you provided?
A: Founder Laser is the true manufacturer, we have own factory, therefore we could supply full OEM and ODM service.
Q: What payment method you accept?
A: On Alibaba, we supply Trade Assurance Order, and VIA this method, you could pay by T/T, L/C, Credit Card, etc.
Q: What shipping methods you provide?
A: We give customer EXW, FOB, CFR, DDP, DDU, and any ways you want.
Q: How long is the delivery time?
A: About the production time, it depend on the machine mode you require and which country you from. About the shipping time, it
depend on the chosen transportation method.
Q: I don’t know how to use after i receive or i have problem during use, how to do?
A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished. We can also provide Door
Service if you need.
Q: I don’t know which one is suitable for me ?
A: Just tell us below information:
1) Max work size: choose most suitable model.
2) Materials and cutting thickness: power of laser generator.
3) Business industries: We sell a lot and give advice on this business line
