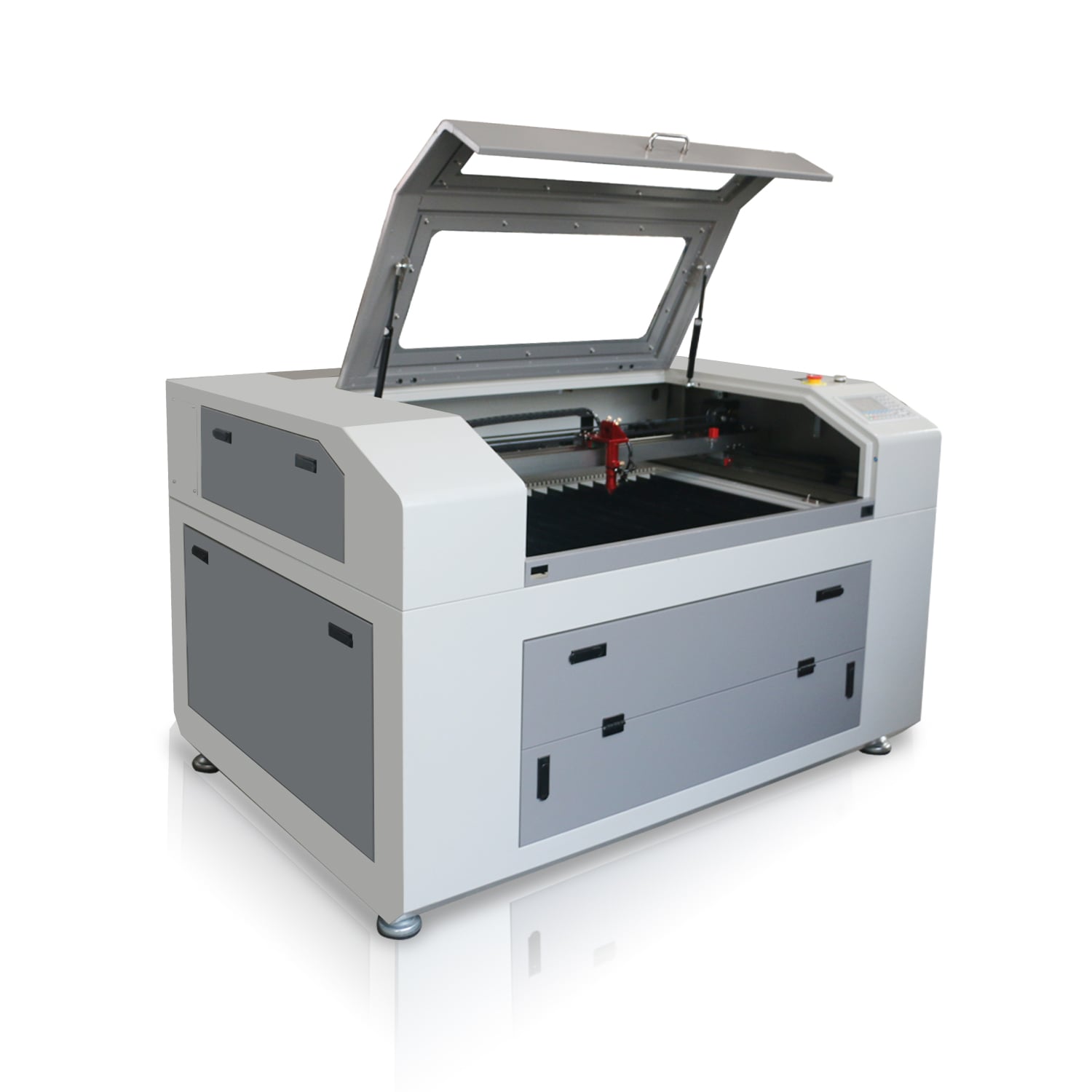

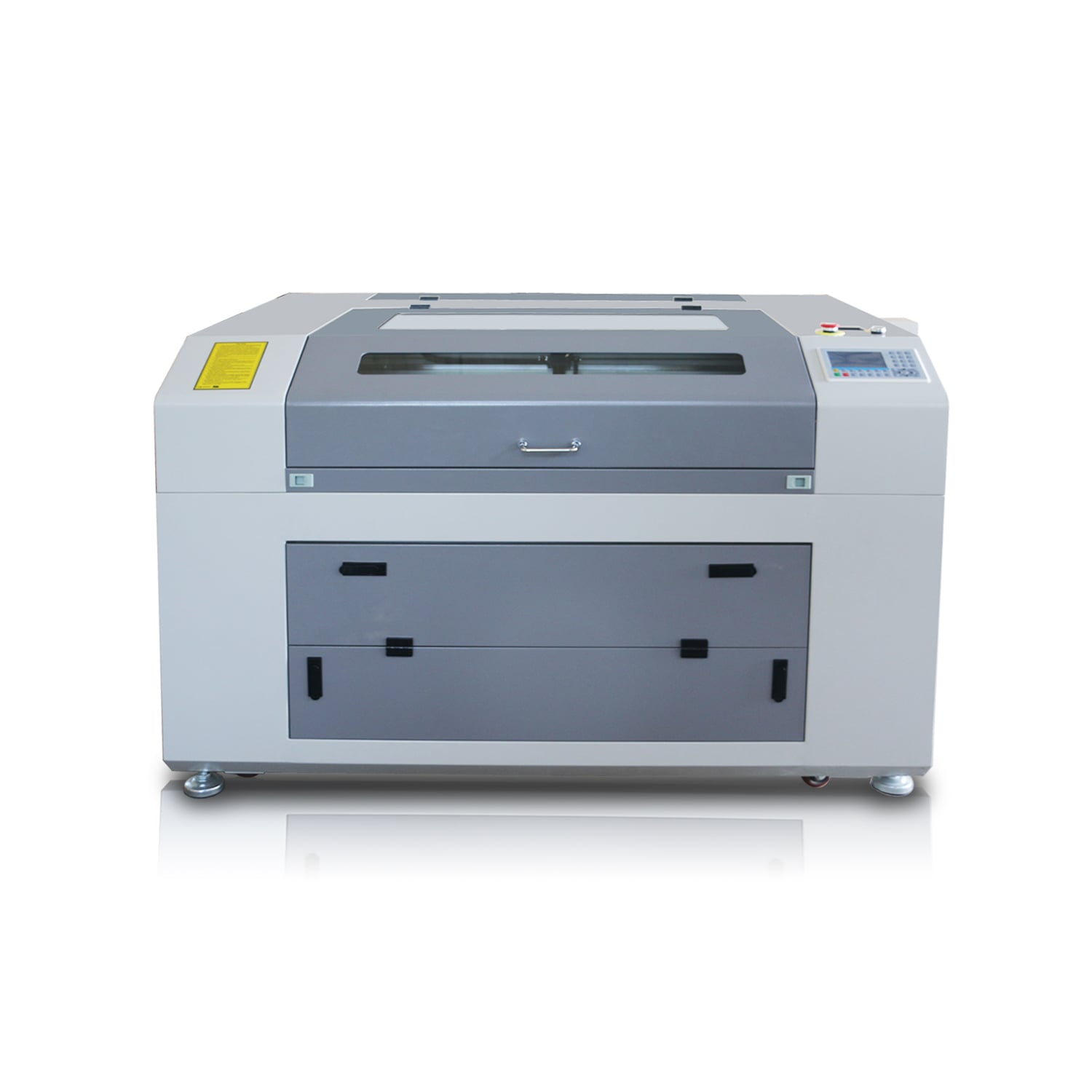

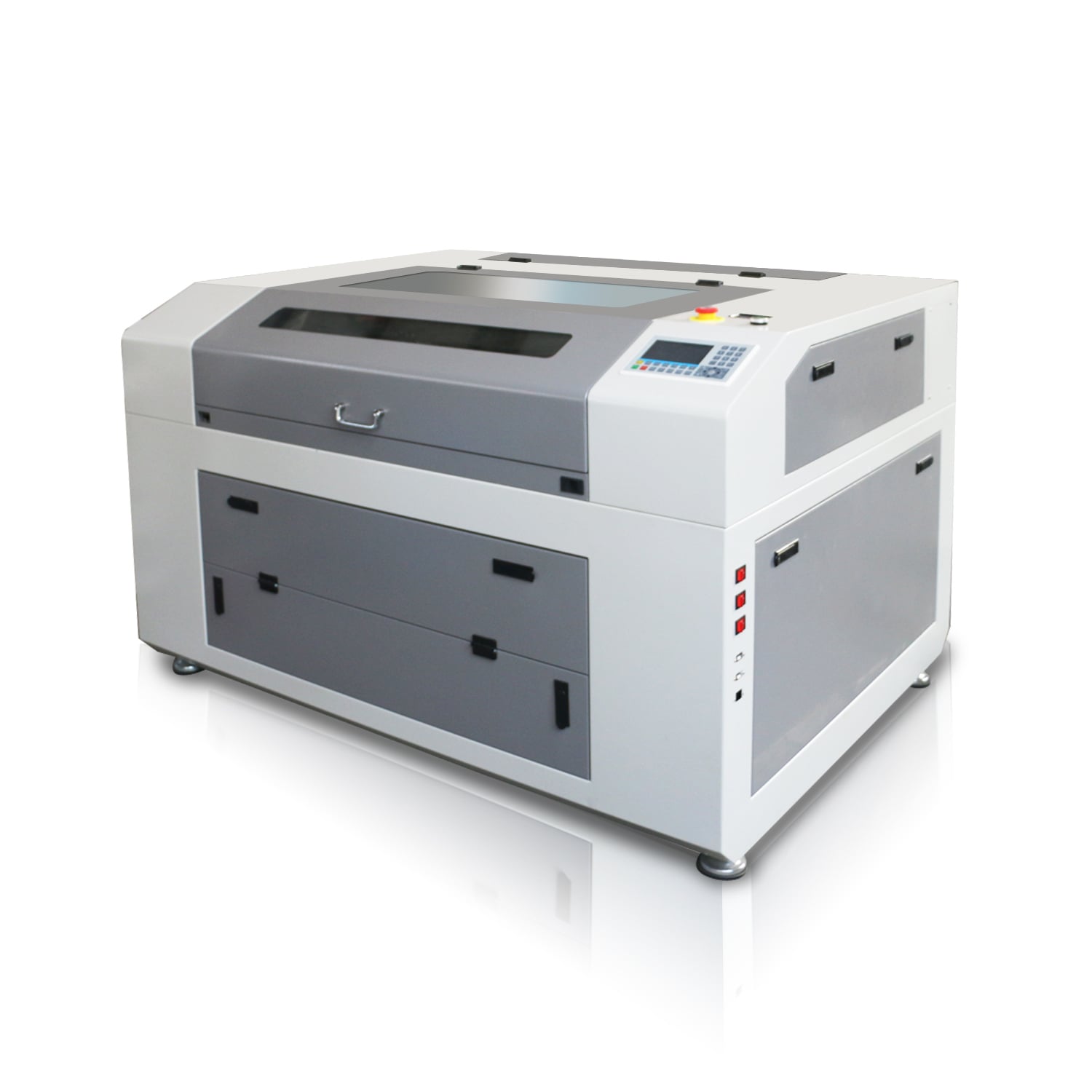

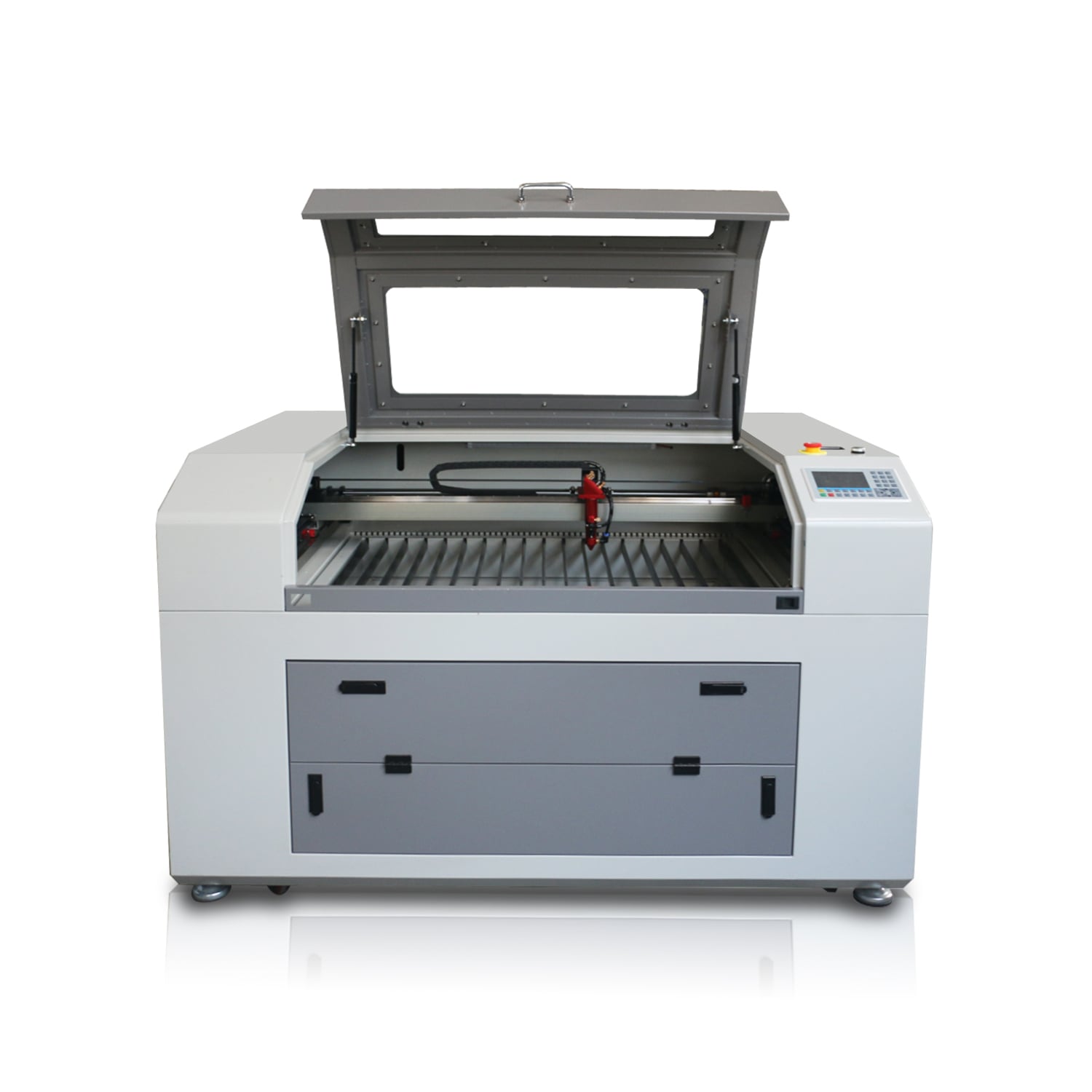

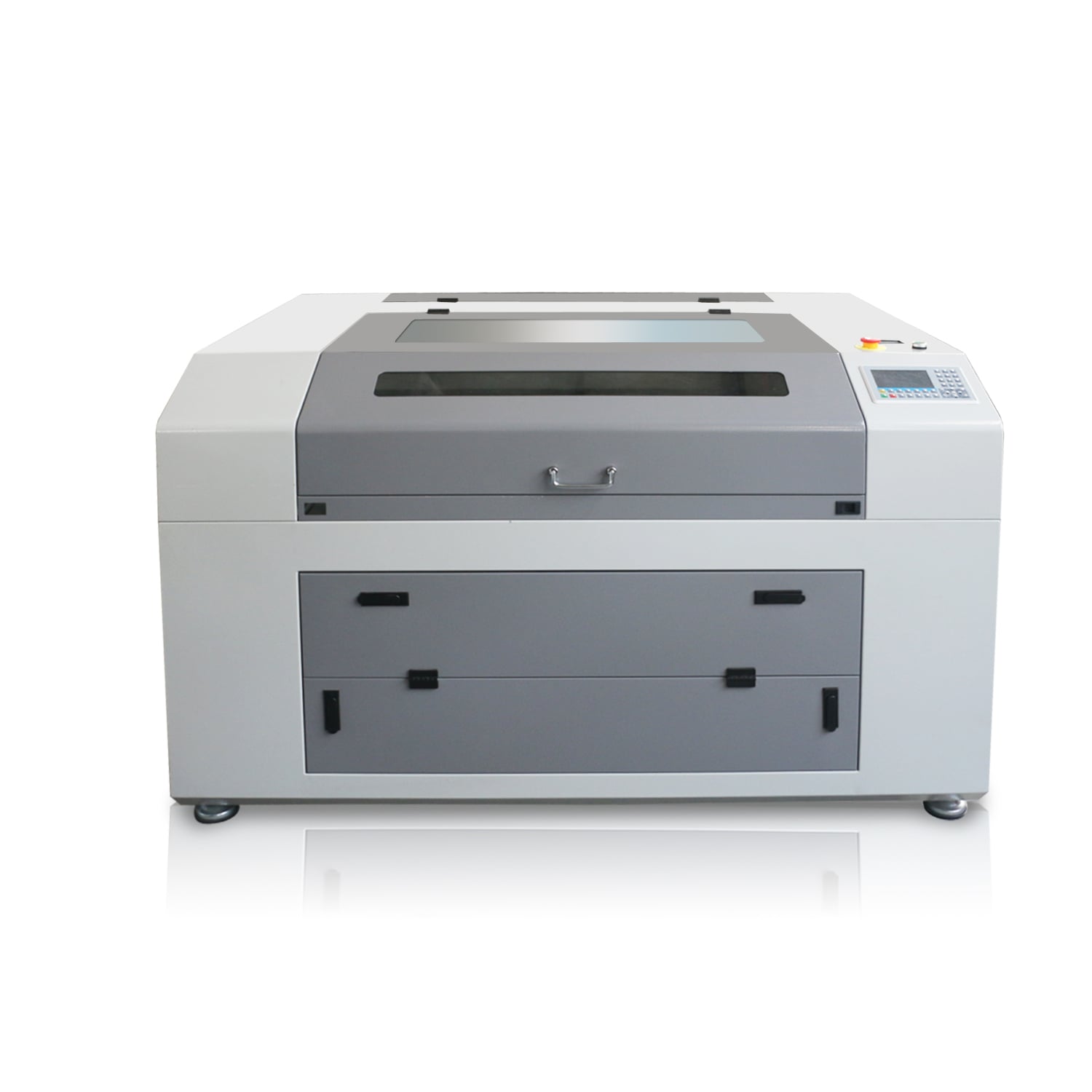

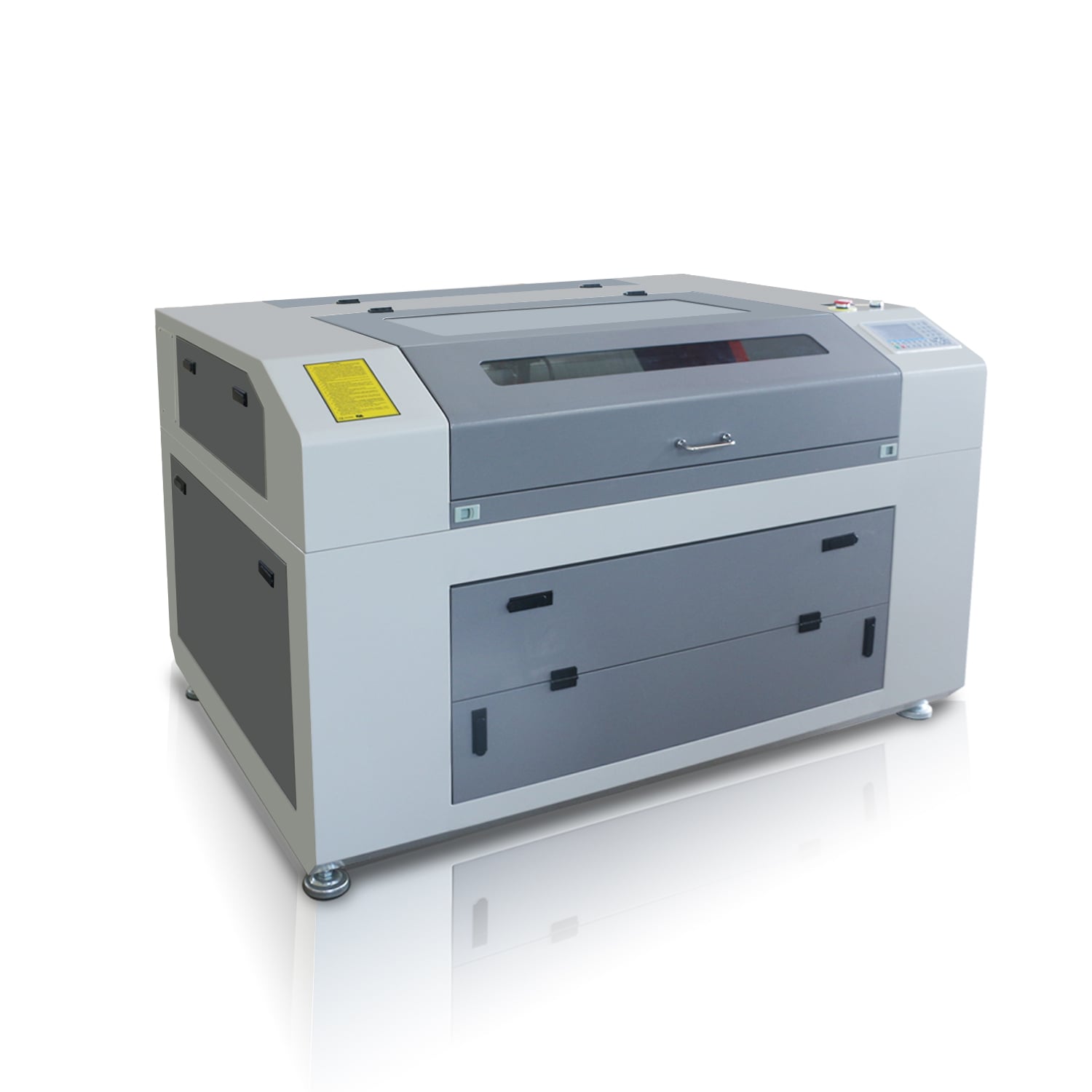

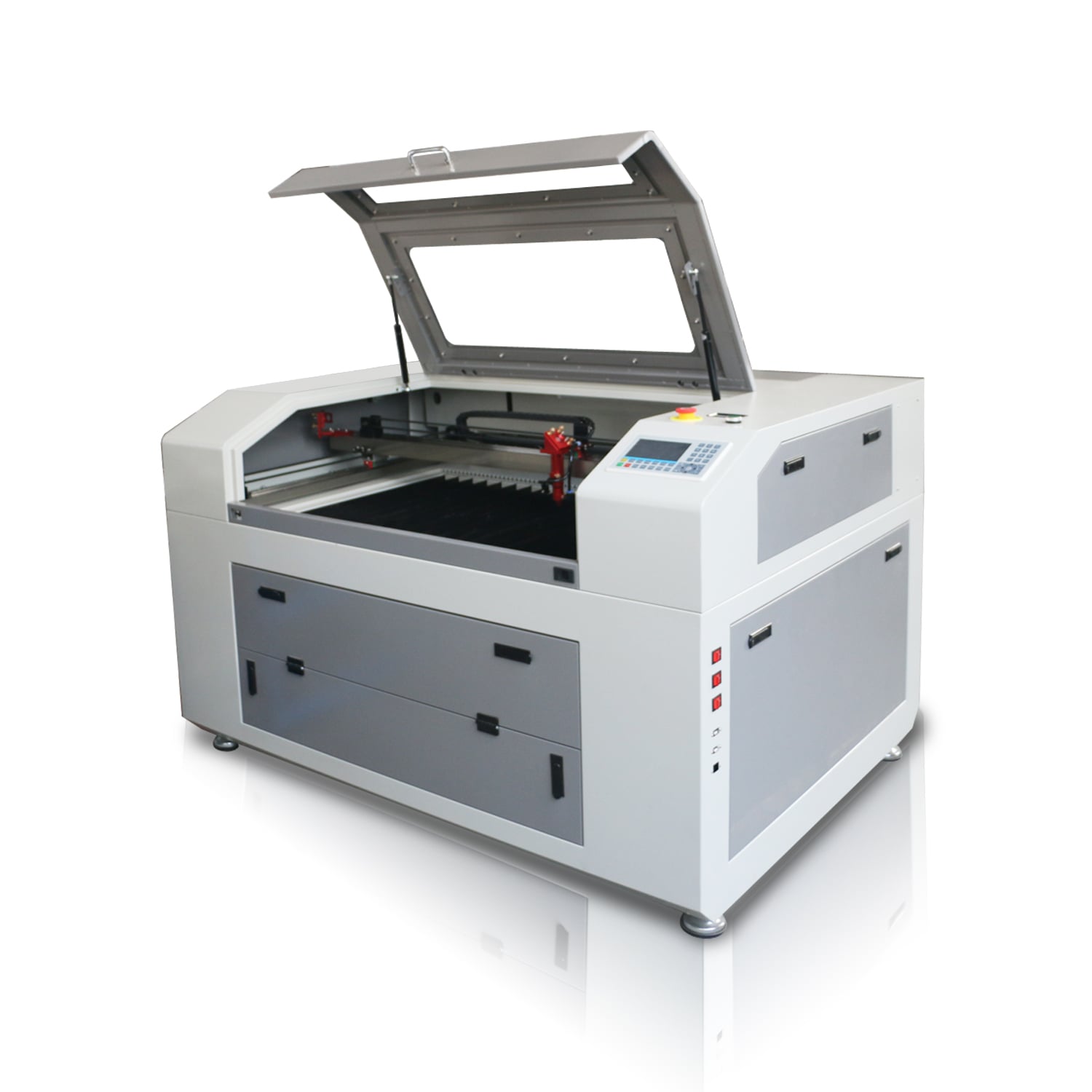

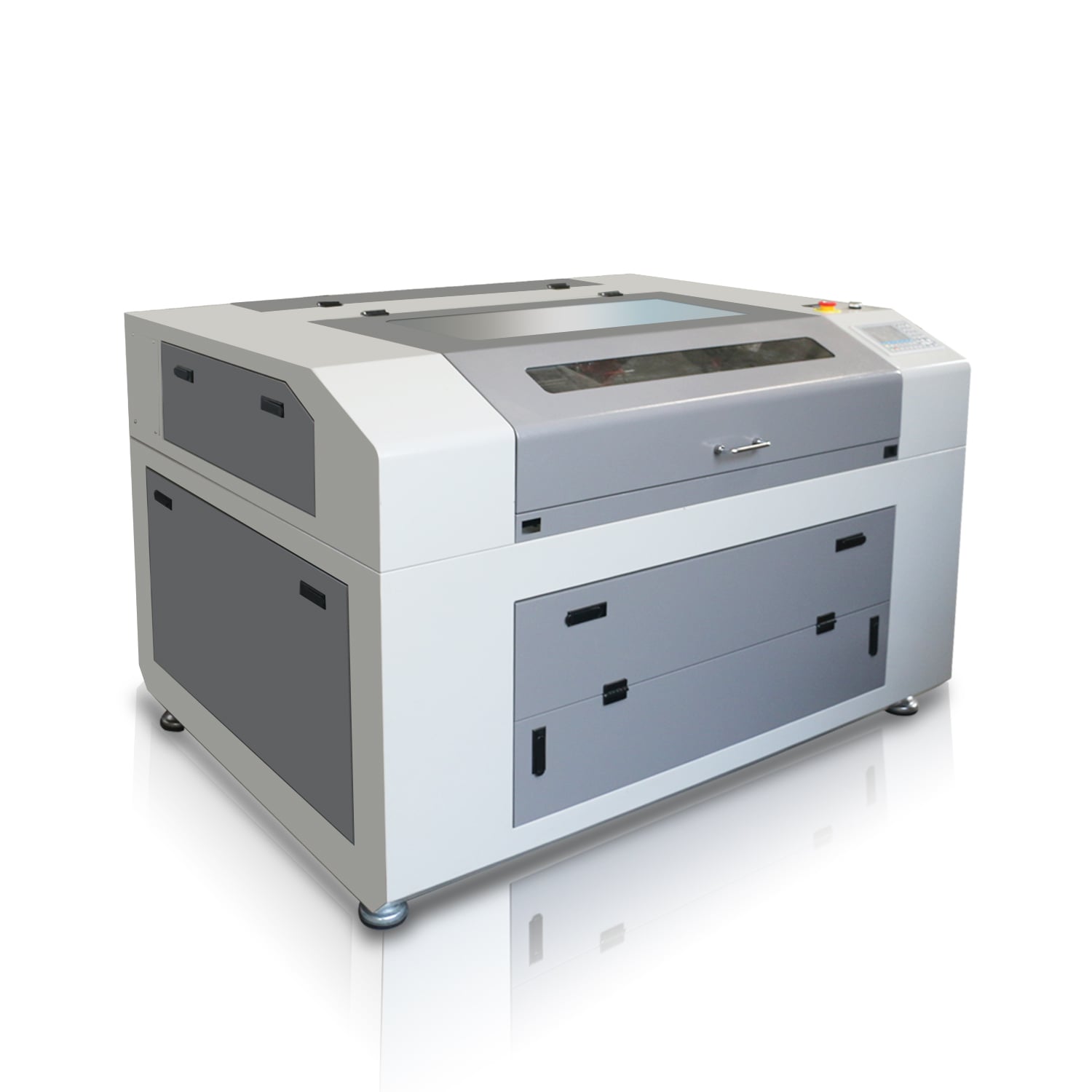

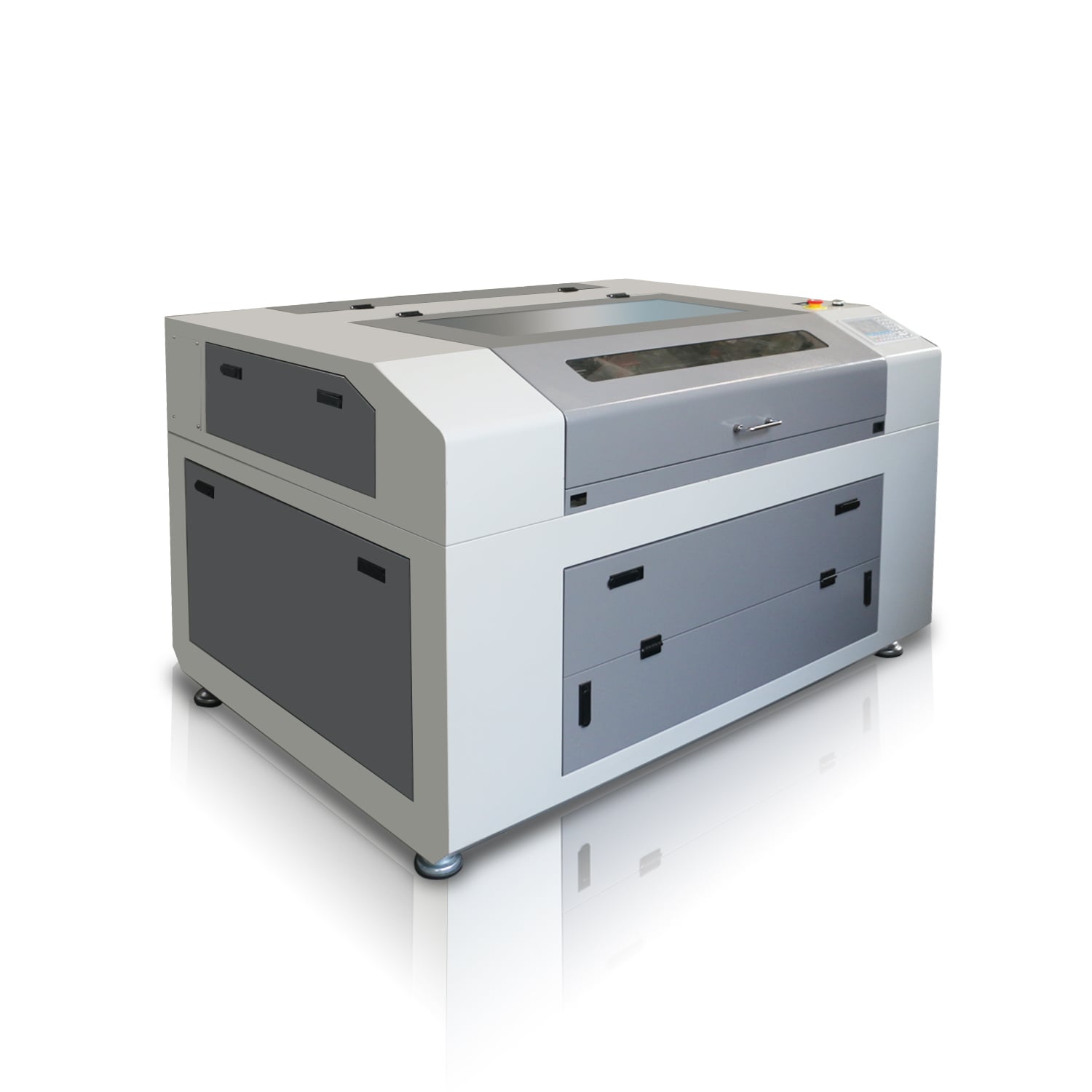

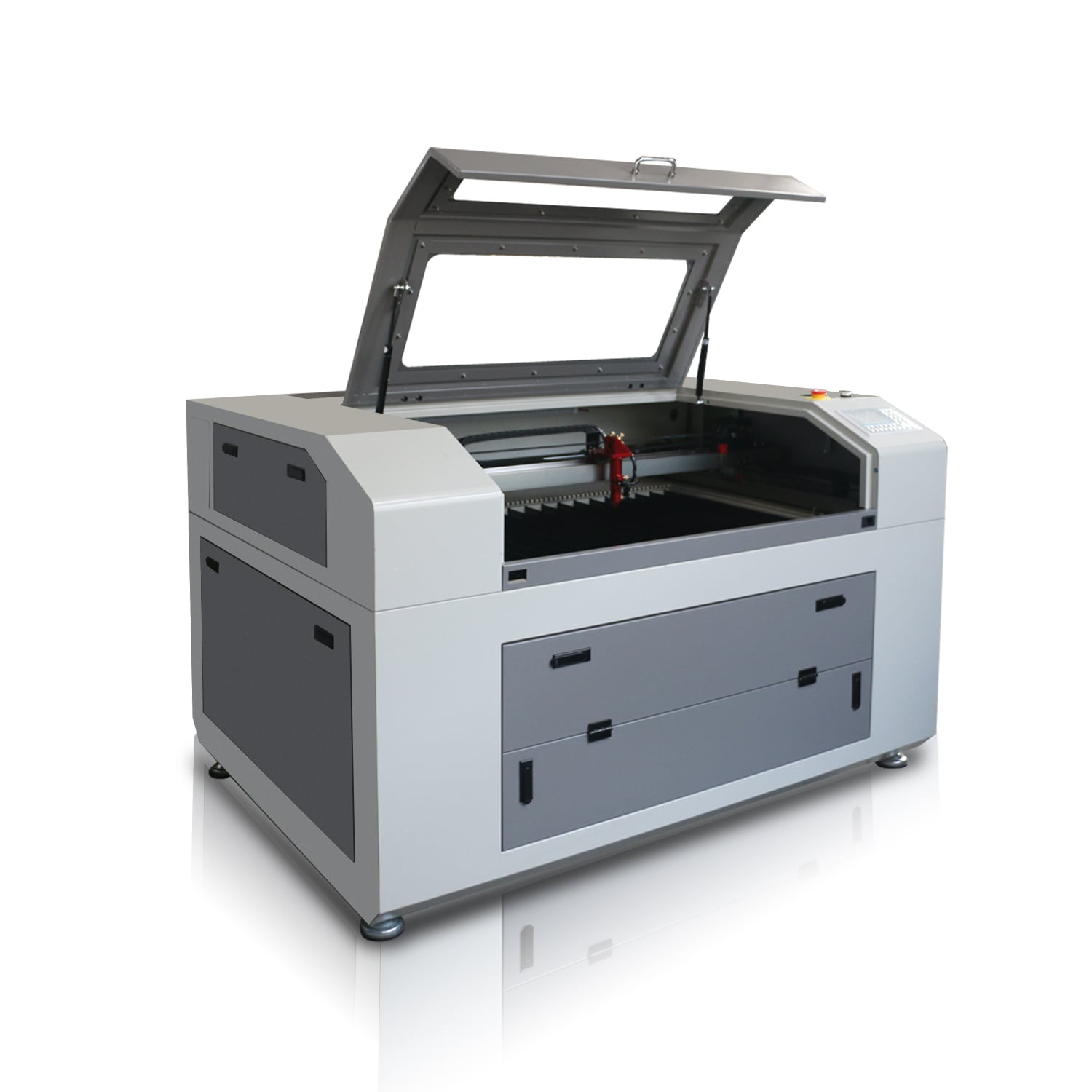

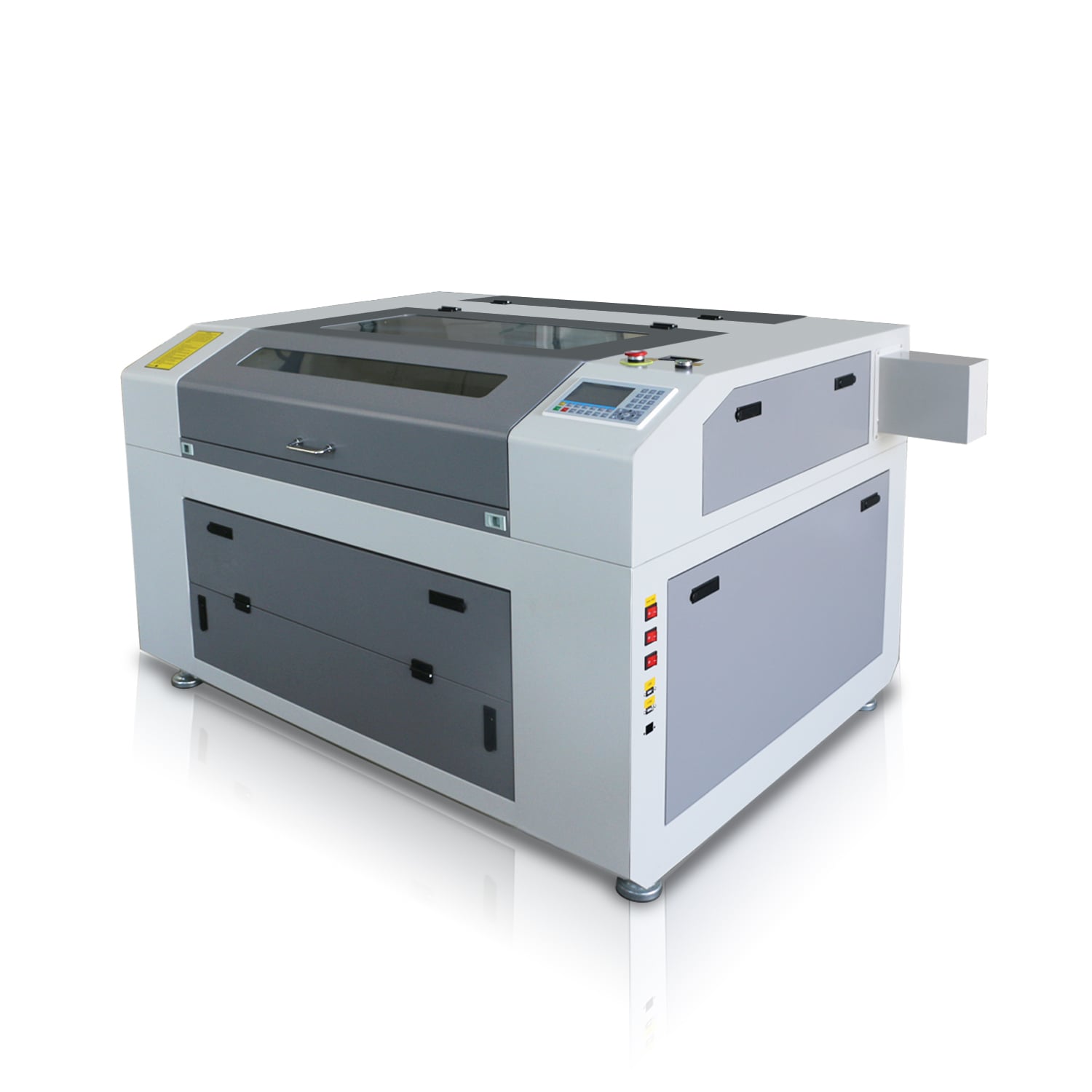

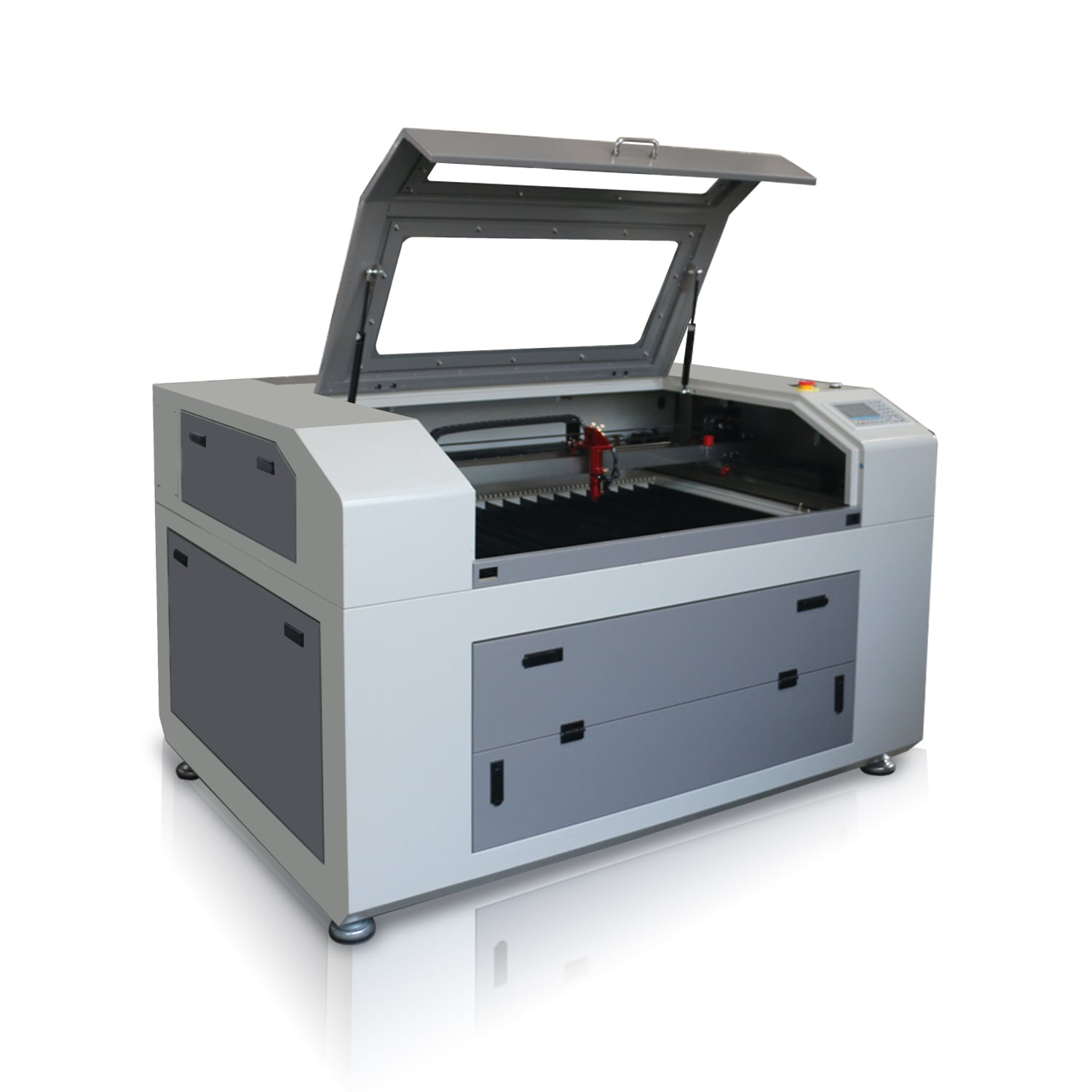

Professional 600x900mm laser with HIWIN rails & Ruida system. 1000mm/s speed, 0.01mm accuracy. Pass-through doors for long materials. Contact us for a free quote!
1. Genuine HIWIN Linear Guide Rails
Industrial Precision: The X and Y axes are equipped with genuine HIWIN linear guides from Taiwan. This high-load, high-precision structural design ensures zero-vibration even during high-speed movement, delivering a positioning accuracy of ≤0.01mm.
Long-Term Durability: Compared to common wheels, HIWIN rails offer superior wear resistance and stability, maintaining factory-level precision for years of heavy-duty production.
2. Top-Tier Motion & Control System
Ruida 6445G Controller: Features the globally recognized Ruida control system with a large color screen. It supports shortest-path optimization and continuous fast curve cutting, significantly reducing processing time.
Leadshine Motor & Driver: Powered by high-torque Leadshine stepper motors and drivers, achieving a peak engraving speed of 1000mm/s and a smooth cutting speed of 600mm/s.
3. High-Quality Laser Source & Pass-Through Design
10,000H Long-Life Laser Tube: Supports high-quality CO2 glass laser tubes (60W-130W) with optimized output for both delicate engraving and thick cutting (up to 25mm acrylic).
Unlimited Length Processing: Features front and rear pass-through doors, allowing you to feed and process extra-long materials (like oversized wooden planks or rolls of leather) that exceed the working area.
4. Motorized Z-Axis with Ball Screw Lifting
Stable Height Adjustment: Utilizes high-quality ball screws combined with a belt-driven motorized lifting platform. This ensures stable and precise vertical movement, making it easy to accommodate thick materials or install a rotary axis.
Omron Limit Switches: Equipped with premium Omron (Japan) sensors for reliable positioning and safe operation, preventing machine collisions during high-speed homing.
5. Industrial Head with Integrated Red Light
Precision Targeting: The industrial-grade laser head includes a built-in Red Light Pointer for quick positioning and an Air Assist function to cool the material and protect the lens from smoke and debris.
Flexible Upgrades: The modular design supports optional upgrades such as a CCD camera for auto-contouring or dual laser heads for doubled production efficiency.
6. Multi-Sector Non-Metal Specialist

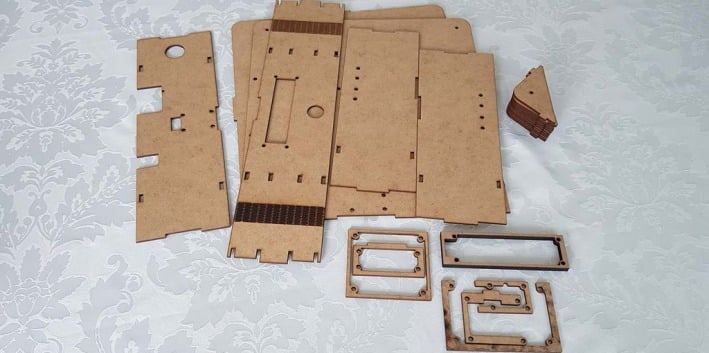

Versatile Application: Highly effective on acrylic, wood, leather, fabric, rubber, bamboo, and more. A perfect choice for industries like advertising signage, furniture decorative engraving, and handicraft manufacturing.
Machine Model: |
FDC-6090 |
Laser Power: |
60W/80W/90-100W/100-130W |
Working Area: |
600*900mm |
Maximum cutting depth: |
10/15/25mm (acrylic) |
Maximum cutting speed: |
0-600mm/s |
Maximum lifting speed： |
0-1000mm/s |
Minimum Forming Role： |
Letters: 1.5 x 1.5mm |
Operating voltage: |
220V/AC-110V/AC,50-60HZ |
Graphic format supported: |
Coreldraw、Photoshop、AI、CAD ETC |
Working temperature: |
0℃ - 45℃ |
Machine dimensions: |
150*110*102cm |
1、This product comes with a one-year warranty from the date of purchase (excluding consumables). Optical lenses and laser tubes are consumables, with a three-month warranty。
2、During the warranty period, if there is a malfunction in the normal use of our company's products, you can enjoy our company's free warranty service by presenting the warranty card or invoice in accordance with the contents of this warranty clause.
Q: What customized services you provided?
A: Founder Laser is the true manufacturer, we have own factory, therefore we could supply full OEM and ODM service.
Q: What payment method you accept?
A: On Alibaba, we supply Trade Assurance Order, and VIA this method, you could pay by T/T, L/C, Credit Card, etc.
Q: What shipping methods you provide?
A: We give customer EXW, FOB, CFR, DDP, DDU, and any ways you want.
Q: How long is the delivery time?
A: About the production time, it depend on the machine mode you require and which country you from. About the shipping time, it
depend on the chosen transportation method.
Q: I don’t know how to use after i receive or i have problem during use, how to do?
A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished. We can also provide Door
Service if you need.
Q: I don’t know which one is suitable for me ?
A: Just tell us below information:
1) Max work size: choose most suitable model.
2) Materials and cutting thickness: power of laser generator.
3) Business industries: We sell a lot and give advice on this business line
